Chapter 2: External Connectors Pinout Description

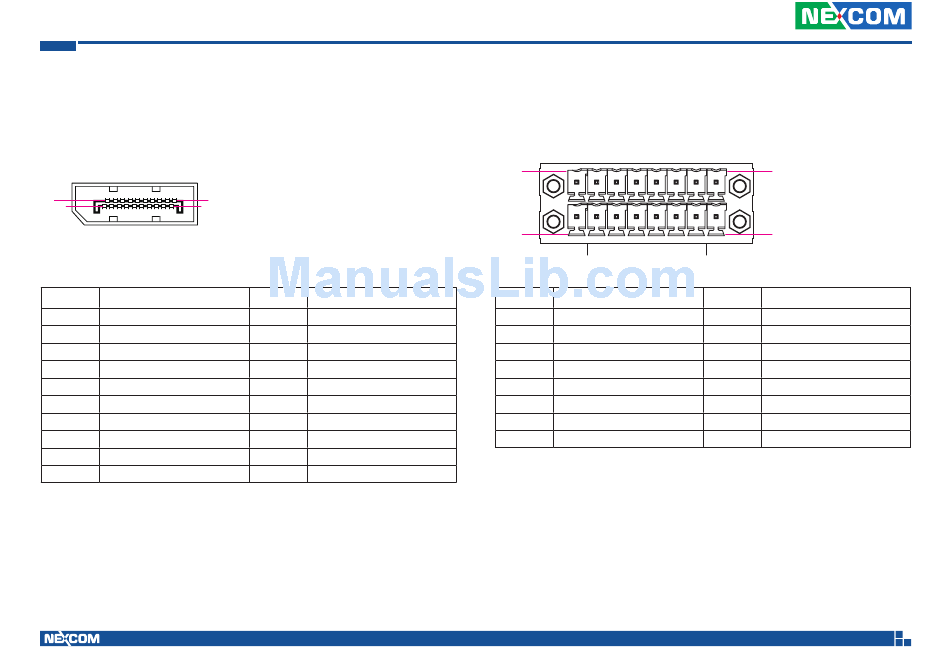

DisplayPort

Connector Number: 13
19 1
20 2
Pin Definition
1 DP0_DATA0_P
3 DP0_DATA0_N
5 GND
7 DP0_DATA2_P
9 DP0_DATA2_N
11 GND
13 CONFIG1
15 DPC0_AUXP_C
17 DPC0_AUXN_C
19 RETURN
Copyright © 2015 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 GND
4 DP0_DATA1_P
6 DP0_DATA1_N
8 GND
10 DP0_DATA3_P
12 DP0_DATA3_N
14 CONFIG2
16 GND
18 HPD
20 DP0_PWR

GPIO/CAN

Connector Number: 14
1 GPIO
Pin 9
Pin 1
CAN
Pin Definition
1 CAN_H_SJA1000
2 CAN_L_SJA1000
3 NC
4 NC
5 NC
6 NC
7 GND
8 GND
GPIO can be programmed by S/W.
Please refer to the source code in utility.
12
8
Pin 16
Pin 8
GND
Pin Definition
9 GPO1
10 GPO2
11 GPO3
12 GPO4
13 GPI1
14 GPI2
15 GPI3
16 GPI4
