Appendix A: Software Demo Utility for I/O Ports of Function Control

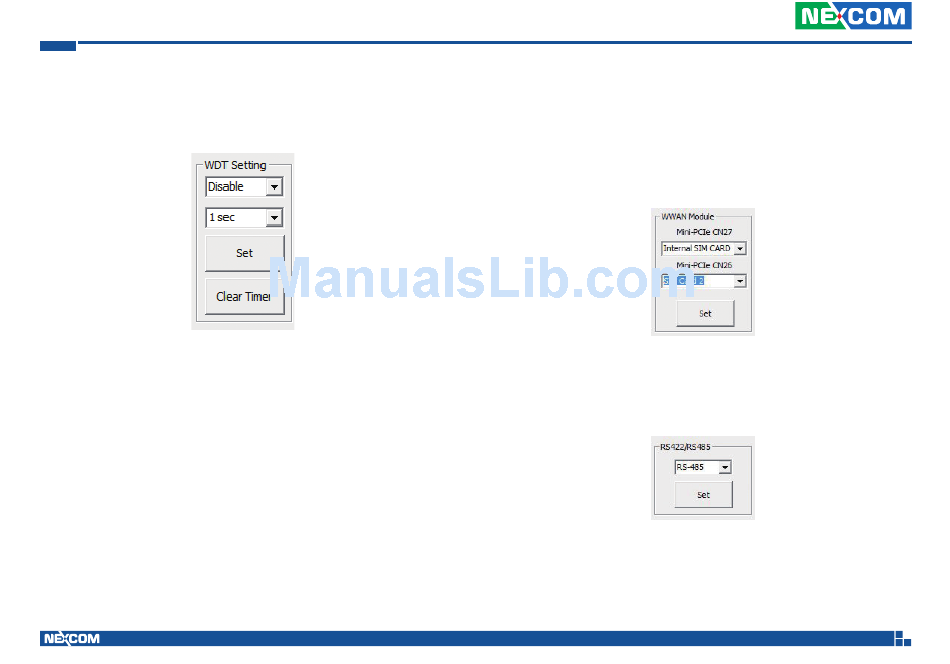

1.3 WDT Setting

Enables or disables the WDT function. There are 9 selections of time. The
timer of WDT can also be cleared by Clear Timer button.
Copyright © 2015 NEXCOM International Co., Ltd. All Rights Reserved.

1.4 WWAN Module

1.4.1 Mini-PCIe CN27
Selects SIM2 or SIM3 card.
1.4.2 Mini-PCIe CN26
Selects SIM1 or SIM2 card.

1.5 Selection of RS-422 or RS-485 for COM3

Enables or disables the power on delay time function. There are 8 selections
of delay time.
