Annex

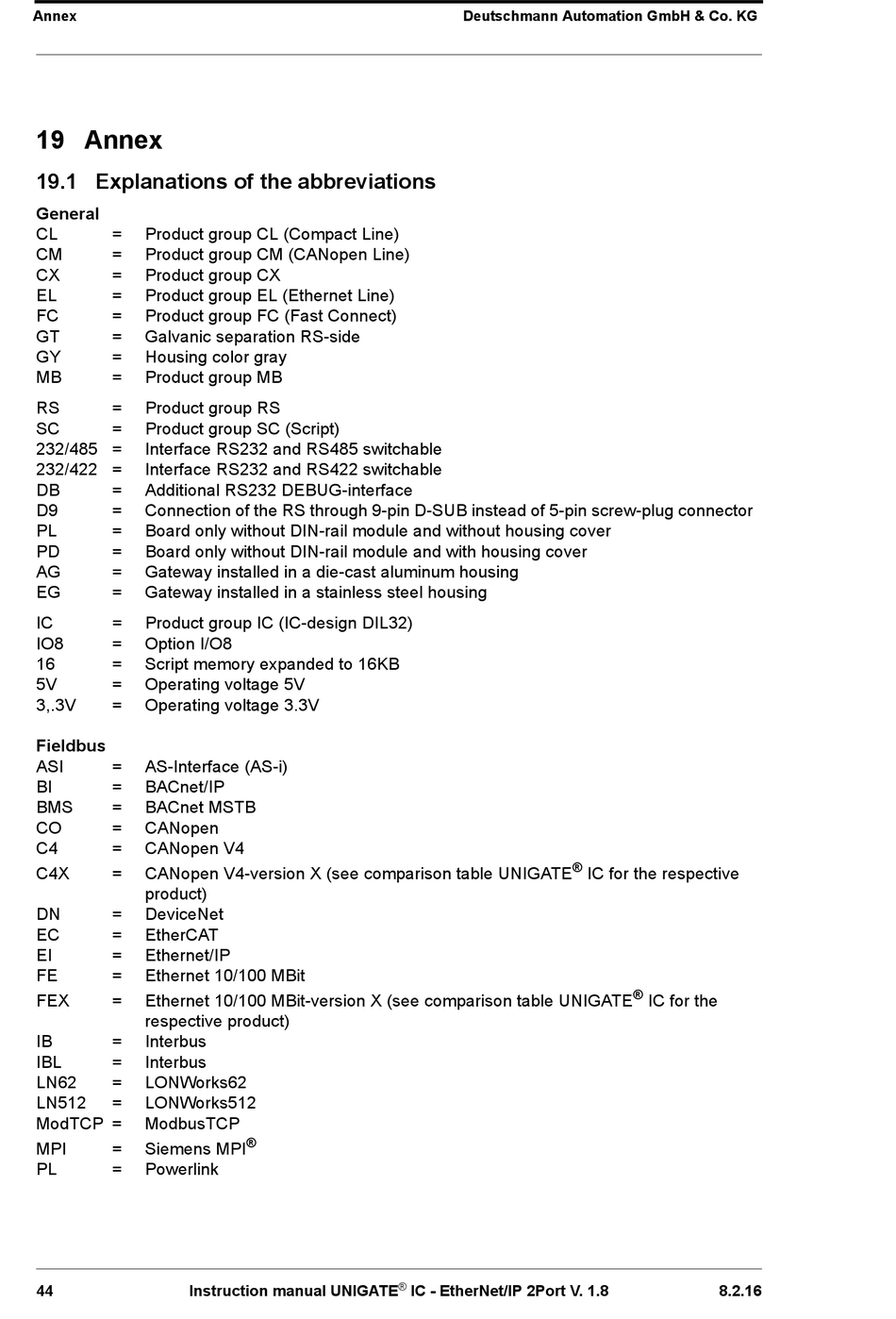

19 Annex

19.1 Explanations of the abbreviations

General
CL = Product group CL (Compact Line)
CM = Product group CM (CANopen Line)
CX = Product group CX
EL = Product group EL (Ethernet Line)
FC = Product group FC (Fast Connect)
GT = Galvanic separation RS-side
GY = Housing color gray
MB = Product group MB
RS = Product group RS
SC = Product group SC (Script)
232/485 = Interface RS232 and RS485 switchable
232/422 = Interface RS232 and RS422 switchable
DB = Additional RS232 DEBUG-interface
D9 = Connection of the RS through 9-pin D-SUB instead of 5-pin screw-plug connector
PL = Board only without DIN-rail module and without housing cover
PD = Board only without DIN-rail module and with housing cover
AG = Gateway installed in a die-cast aluminum housing
EG = Gateway installed in a stainless steel housing
IC = Product group IC (IC-design DIL32)
IO8 = Option I/O8
16 = Script memory expanded to 16KB
5V = Operating voltage 5V
3,.3V = Operating voltage 3.3V
Fieldbus
ASI = AS-Interface (AS-i)
BI = BACnet/IP
BMS = BACnet MSTB
CO = CANopen
C4 = CANopen V4
C4X = CANopen V4-version X (see comparison table UNIGATE
product)
DN = DeviceNet
EC = EtherCAT
EI = Ethernet/IP
FE = Ethernet 10/100 MBit
FEX = Ethernet 10/100 MBit-version X (see comparison table UNIGATE
respective product)
IB = Interbus
IBL = Interbus
LN62 = LONWorks62
LN512 = LONWorks512
ModTCP = ModbusTCP
MPI = Siemens MPI
PL = Powerlink
