Deutschmann Automation GmbH & Co. KG
Technical data

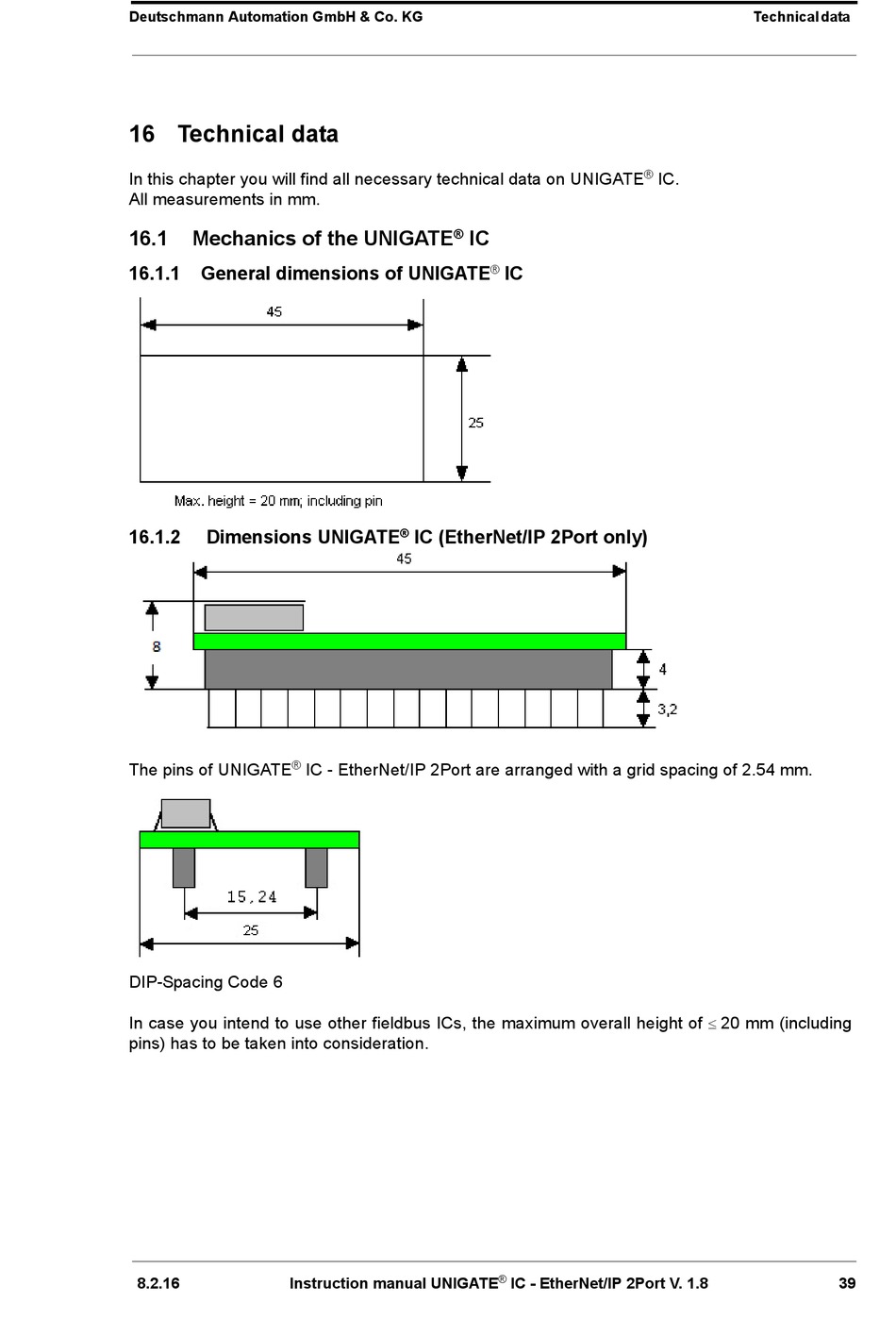

16 Technical data
®
In this chapter you will find all necessary technical data on UNIGATE
IC.
All measurements in mm.
®
16.1
Mechanics of the UNIGATE
IC
®
16.1.1
General dimensions of UNIGATE
IC
®
16.1.2
Dimensions UNIGATE
IC (EtherNet/IP 2Port only)
®
The pins of UNIGATE
IC - EtherNet/IP 2Port are arranged with a grid spacing of 2.54 mm.
DIP-Spacing Code 6
In case you intend to use other fieldbus ICs, the maximum overall height of
20 mm (including
pins) has to be taken into consideration.
®
8.2.16
Instruction manual UNIGATE
IC - EtherNet/IP 2Port V. 1.8
39
