Hardware design

3

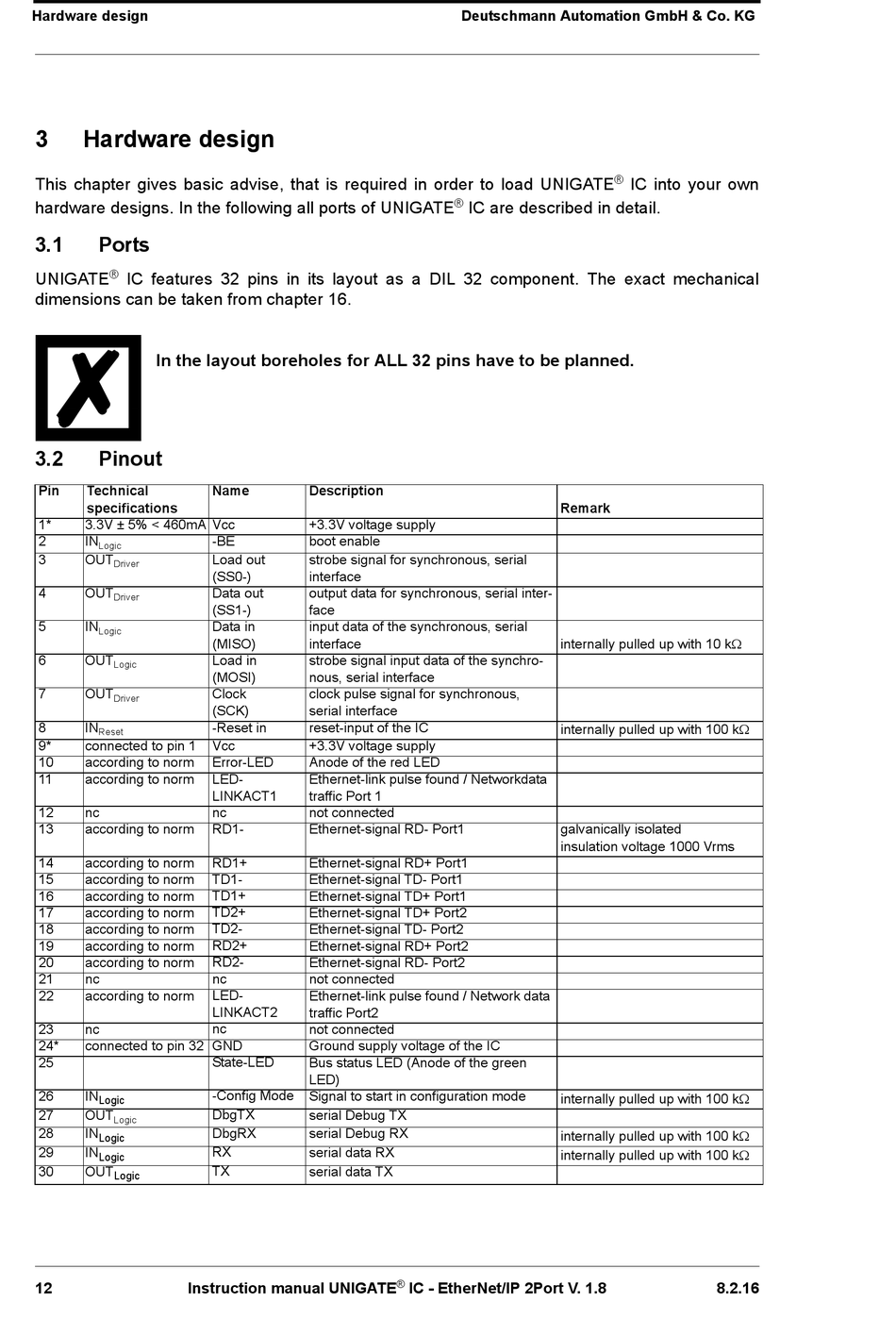

Hardware design
This chapter gives basic advise, that is required in order to load UNIGATE
hardware designs. In the following all ports of UNIGATE
3.1

Ports

®
UNIGATE
IC features 32 pins in its layout as a DIL 32 component. The exact mechanical
dimensions can be taken from chapter 16.
In the layout boreholes for ALL 32 pins have to be planned.
3.2

Pinout

Pin
Technical
specifications
1*
3.3V ± 5% < 460mA Vcc
2
IN
Logic
3
OUT
Driver
4
OUT
Driver
5
IN
Logic
6
OUT
Logic
7
OUT
Driver
8
IN
Reset
9*
connected to pin 1
10
according to norm
11
according to norm
12
nc
13
according to norm
14
according to norm
15
according to norm
16
according to norm
17
according to norm
18
according to norm
19
according to norm
20
according to norm
21
nc
22
according to norm
23
nc
24*
connected to pin 32 GND
25
26
IN
Logic
27
OUT
Logic
28
IN
Logic
29
IN
Logic
30
OUT
Logic
12
Instruction manual UNIGATE
Name
Description
+3.3V voltage supply
-BE
boot enable
Load out
strobe signal for synchronous, serial
(SS0-)
interface
Data out
output data for synchronous, serial inter-
(SS1-)
face
Data in
input data of the synchronous, serial
(MISO)
interface
Load in
strobe signal input data of the synchro-
(MOSI)
nous, serial interface
Clock
clock pulse signal for synchronous,
(SCK)
serial interface
-Reset in
reset-input of the IC
Vcc
+3.3V voltage supply
Error-LED
Anode of the red LED
LED-
Ethernet-link pulse found / Networkdata
LINKACT1
traffic Port 1
nc
not connected
RD1-
Ethernet-signal RD- Port1
RD1+
Ethernet-signal RD+ Port1
TD1-
Ethernet-signal TD- Port1
TD1+
Ethernet-signal TD+ Port1
TD2+
Ethernet-signal TD+ Port2
TD2-
Ethernet-signal TD- Port2
RD2+
Ethernet-signal RD+ Port2
RD2-
Ethernet-signal RD- Port2
nc
not connected
LED-
Ethernet-link pulse found / Network data
LINKACT2
traffic Port2
nc
not connected
Ground supply voltage of the IC
State-LED
Bus status LED (Anode of the green
LED)
-Config Mode
Signal to start in configuration mode
DbgTX
serial Debug TX
DbgRX
serial Debug RX
RX
serial data RX
TX
serial data TX
Deutschmann Automation GmbH & Co. KG
®
IC are described in detail.
Remark
internally pulled up with 10 k
internally pulled up with 100 k
galvanically isolated 
insulation voltage 1000 Vrms
internally pulled up with 100 k
internally pulled up with 100 k
internally pulled up with 100 k
®
IC - EtherNet/IP 2Port V. 1.8
®
IC into your own
8.2.16
