The Compact User Interface - Atlas Copco Power Focus 4000 Graph Quick Manual

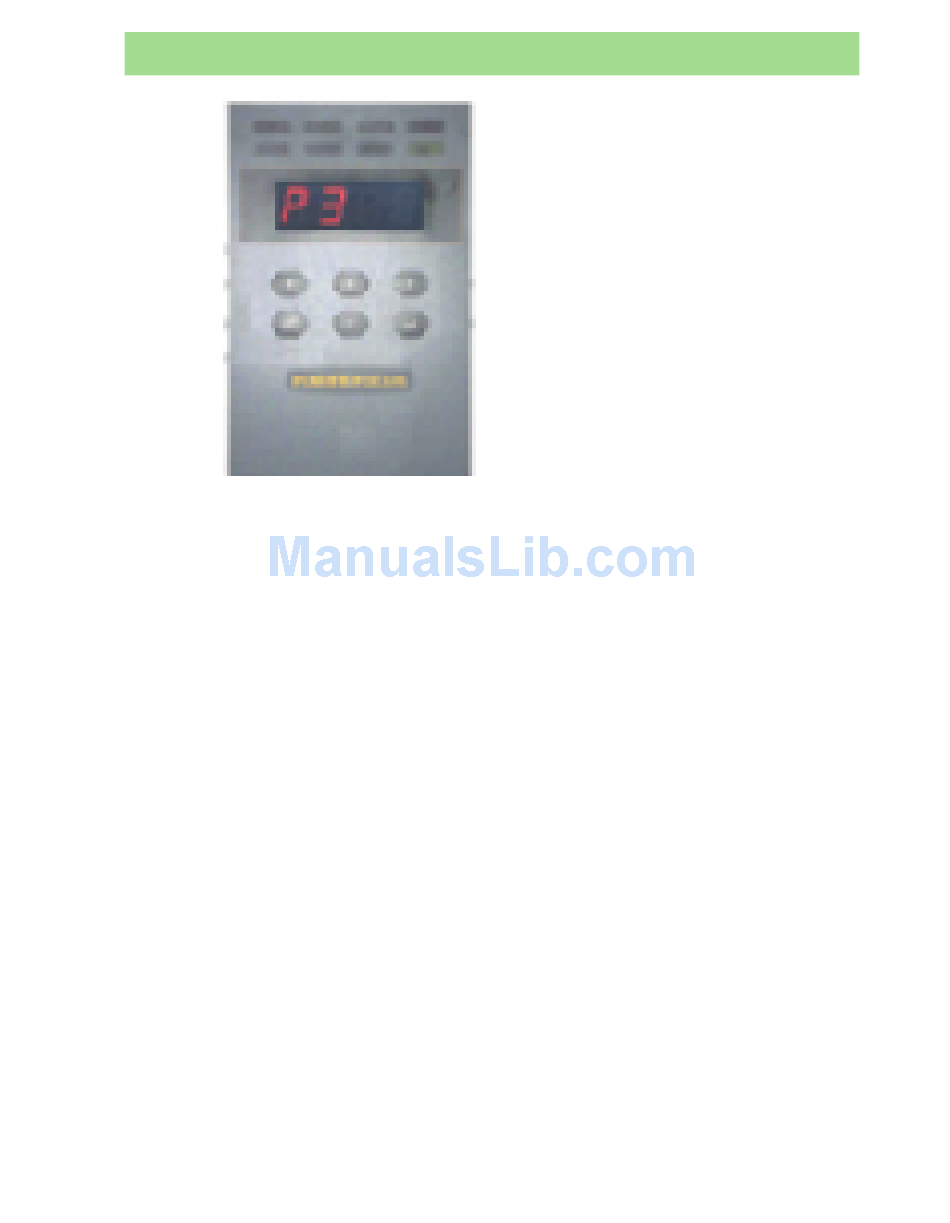

The Compact user interface

1 2
5 6
1. OK The tightening result is within specifi ed limits
2. NOK The tightening result is outside of specifi ed limits
3. ALARM Steady light means the alarm needs to be ac-
knowl- edged. Flashing light means no acknowledgment
is needed
4. AUTO SET The AutoSet programming routine is running
5. n x OK The no. of OK tightenings equals batch size
6. JOB OK A Job has been completed
7 . STAT Any of the calculated values falls outside of the sta-
tistical limits
8. PROG CONTROL Steady light indicates an unlocked keypad.
Flashing green means that programming control is taken
by ToolsTalk PF
3 4
7 8
5
1. OK
2. NOK
3. Alarm
4. AutoSet
5. n x OK
6. Job OK
7 . STAT
8. Prog Control
