Mechanical Installation

3 Mechanical Installation

3.1 Unpacking

3.1.1 Items Supplied
Items supplied may vary according to product configu-
ration.
•
Make sure the items supplied and the
information on the nameplate correspond to the
order confirmation.
•
Check the packaging and the frequency converter
visually for damage caused by inappropriate
handling during shipment. File any claim for
damage with the carrier. Retain damaged parts
for clarification.
VLT R
AQUA Drive
www.danfoss.com
1
T/C: FC-202P45KT4E20H1XGXXXXSXXXXAXBXCXXXXDX
2
P/N: 131F6653 S/N: 038010G502
4
45kW(400V) / 60HP(460V)
5
IN: 3x380-480V 50/60Hz 82/73A
6
OUT: 3x0-Vin 0-590Hz 90/80A
7
CHASSIS/ IP20 Tamb.45 C/113 F o
* 1 3 1 F 6 6 5 3 0 3 8 0 1 0 G 5 0 2 *
Listed 76X1 E134261 Ind. Contr. Eq.
CAUTION:
See manual for special condition/mains fuse
10
voir manual de conditions speclales/fusibles
WARNING:
Stored charge, wait 15 min.
`
Charge residuelle, attendez 15 min.
1 Type code
2 Order number
3 Serial number
4 Power rating
Input voltage, frequency and current (at low/high
5
voltages)
Output voltage, frequency and current (at low/high
6
voltages)
7 Enclosure type and IP rating
8 Maximum ambient temperature
9 Certifications
10 Discharge time (Warning)

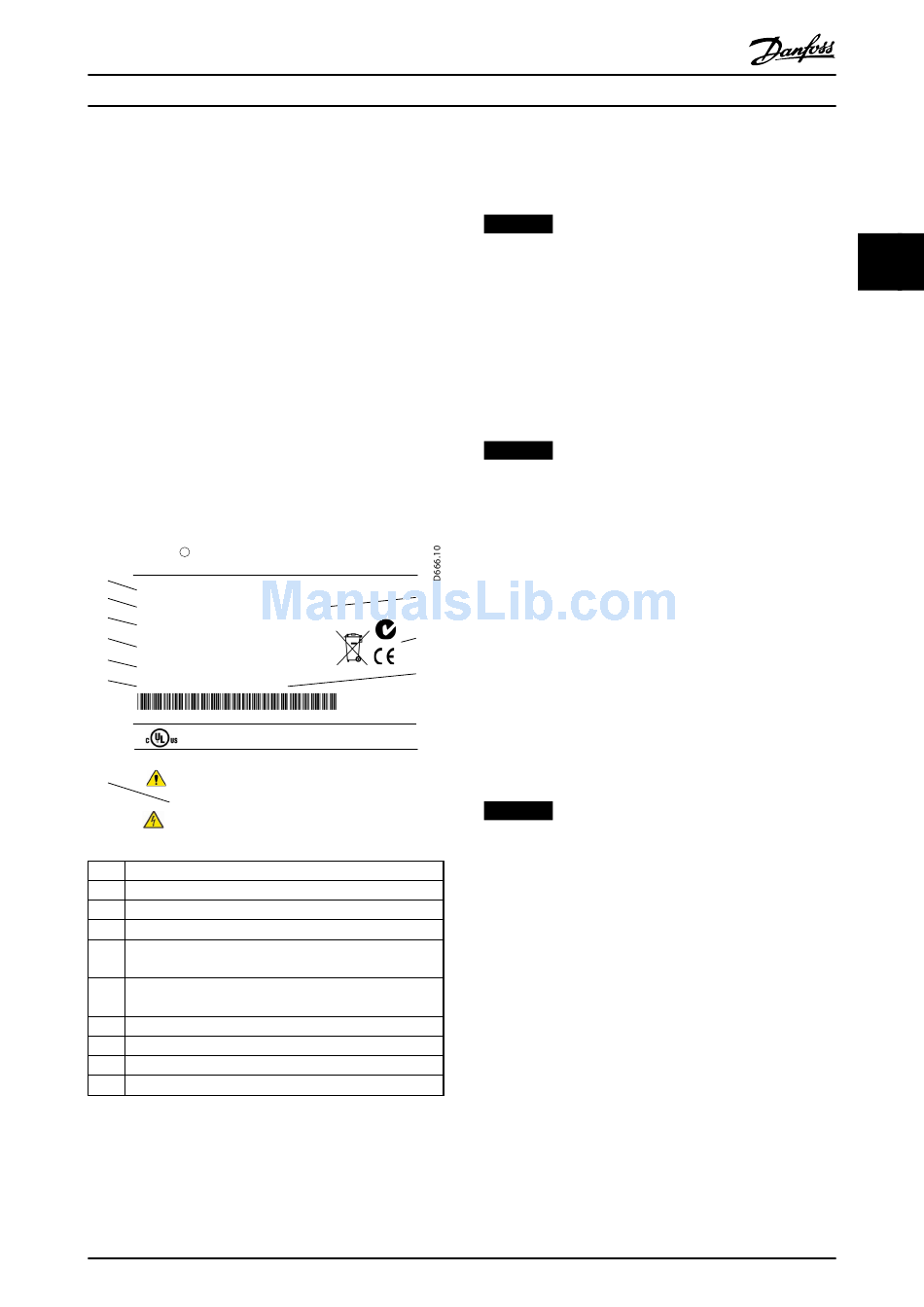

Illustration 3.1 Product Nameplate (Example)
®
VLT AQUA Drive FC 202 Operating Instructions
3
9
8
o
MADE IN
DENMARK
`
MG20MA02 - Rev. 2013-10-29
NOTICE
Do not remove the nameplate from the frequency
converter (loss of warranty).
3.1.2 Storage
Ensure that requirements for storage are fulfilled. Refer to
8.4 Ambient Conditions for further details.

3.2 Installation Environments

NOTICE
In environments with airborne liquids, particles, or
corrosive gases, ensure that the IP/Type rating of the
equipment matches the installation environment. Failure
to meet requirements for ambient conditions can reduce
lifetime of the frequency converter. Ensure that
requirements for air humidity, temperature and altitude
are met.
Vibration and Shock
The frequency converter complies with requirements for
units mounted on the walls and floors of production
premises, as well as in panels bolted to walls or floors.
For detailed ambient conditions specifications, refer to
8.4 Ambient Conditions.

3.3 Mounting

NOTICE
Improper mounting can result in overheating and
reduced performance.
Cooling
•
Ensure that top and bottom clearance for air
cooling is provided. See Illustration 3.2 for
clearance requirements.
