Commissioning

5.3 Local Control Panel Operation

5.3.1 Local Control Panel
The local control panel (LCP) is the combined display and
keypad on the front of the unit.
The LCP has several user functions:
•
Start, stop, and control speed when in local
control
•
Display operational data, status, warnings and
cautions
•
Programming frequency converter functions
•
Manually reset the frequency converter after a
fault when auto-reset is inactive
An optional numeric LCP (NLCP) is also available. The NLCP
operates in a manner similar to the LCP. See the
Programming Guide for details on use of the NLCP.
NOTICE
For commissioning via PC, install MCT 10 Set-up
Software. The software is available for download (basic
version) or for ordering (advanced version, order number
130B1000). For more information and downloads, see
www.danfoss.com/BusinessAreas/DrivesSolutions/Software
+MCT10/MCT10+Downloads.htm.
5.3.2 LCP Layout
The LCP is divided into 4 functional groups (see
Illustration 5.1).
A. Display area
B. Display menu keys
C. Navigation keys and indicator lights (LEDs)
D. Operation keys and reset
®
VLT AQUA Drive FC 202 Operating Instructions
1
2
4
6
7
10
15
16
17

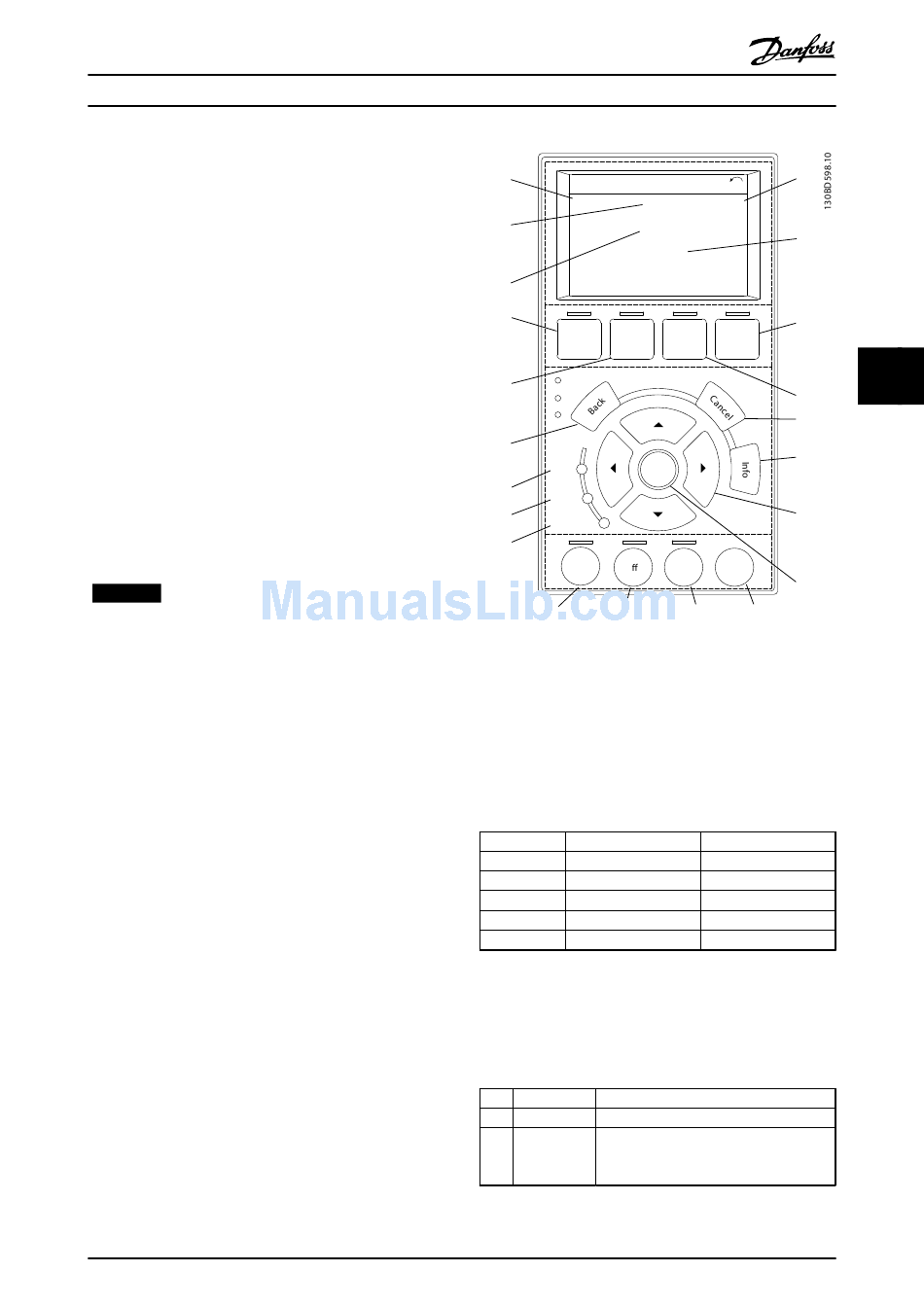

Illustration 5.1 Local Control Panel (LCP)
A. Display area
The display area is activated when the frequency converter
receives power from mains voltage, a DC bus terminal, or
an external 24 V DC supply.
The information displayed on the LCP can be customised
for user application. Select options in the Quick Menu
Q3-13 Display Settings.
Display
1
2
3
4
5
Table 5.1 Legend to Illustration 5.1, Display Area
B. Display menu keys
Menu keys are used for menu access for parameter set-up,
toggling through status display modes during normal
operation, and viewing fault log data.
Key
Status
6
7 Quick Menu
MG20MA02 - Rev. 2013-10-29
Status
799 RPM 7.83 A 36.4 kW
0.000
A
53.2 %
Auto Remote Ramping
Quick Main
Status
B
Menu Menu
C
On OK
Warn.
Alarm
Hand Auto
D
O
on on
18 19 20
Parameter number
0-20 Speed [RPM]
0-21 Motor Current
0-22 Power [kW]
0-23 Frequency
0-24 Reference [%]
Function
Shows operational information.
Allows access to programming parameters
for initial set-up instructions and many
detailed application instructions.
3
1(1)
5
9
Alarm
Log
5
8
11
12
13
Reset
14
21
Default setting
21
5
