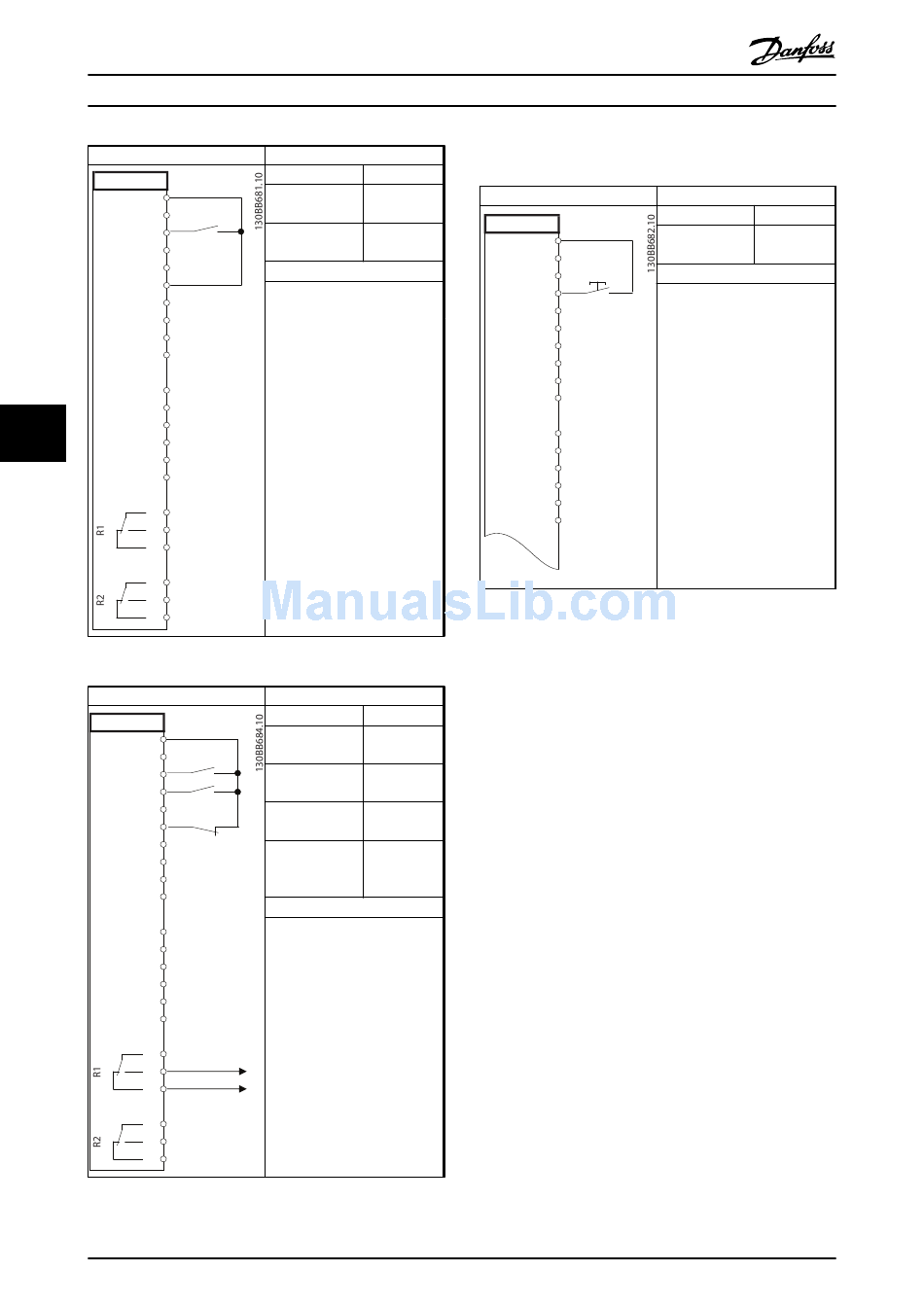

Application Set-up Examples
FC
+24 V
12
+24 V
13
D IN
18
D IN
19
COM
20
D IN
27
D IN
29
D IN
32
D IN
33
D IN
37
+10 V
50
A IN
53
6
6
A IN
54
COM
55
A OUT
42
COM
39
01
02
03
04
05
06
Table 6.8 Run/Stop Command without External Interlock
FC
+24 V
12
+24 V
13
D IN
18
D IN
19
COM
20
D IN
27
D IN
29
D IN
32
D IN
33
D IN
37
+10 V
50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
01
02
03
04
05
06
Table 6.9 Run Permissive
30
®
VLT
AQUA Drive FC 202 Operating Instructions
Parameters
Function
Setting
5-10 Terminal 18
[8] Start*
Digital Input
5-12 Terminal 27
[7] External
Digital Input
Interlock
* = Default Value
Notes/comments:
If 5-12 Terminal 27 Digital Input
is set to [0] No operation, a
jumper wire to terminal 27 is
not needed.
D IN 37 is an option.
Parameters
Function
Setting
5-10 Terminal 18
[8] Start*
Digital Input
5-11 Terminal 19
[52] Run
Digital Input
Permissive
5-12 Terminal 27
[7] External
Digital Input
Interlock
5-40 Function
[167] Start
Relay
command
act.
* = Default Value
Notes/comments:
D IN 37 is an option.
MG20MA02 - Rev. 2013-10-29
6.1.4 External Alarm Reset
FC
+24 V
12
+24 V
13
D IN
18
D IN
19
COM
20
D IN
27
D IN
29
D IN
32
D IN
33
D IN
37
+10 V
50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
Table 6.10 External Alarm Reset
Parameters
Function
Setting
5-11 Terminal 19
[1] Reset
Digital Input
* = Default Value
Notes/comments:
D IN 37 is an option.
