Product Overview

3.3 Interior View of Enclosures E1h and E2h

1
2
3
4
5
6
1
Control shelf (see Illustration 3.3)
2
Local control panel (LCP) cradle
3
RFI filter (optional)
4
Mains fuses (required for UL compliance, but otherwise
optional)
5
Mains terminals
6
RFI shield termination

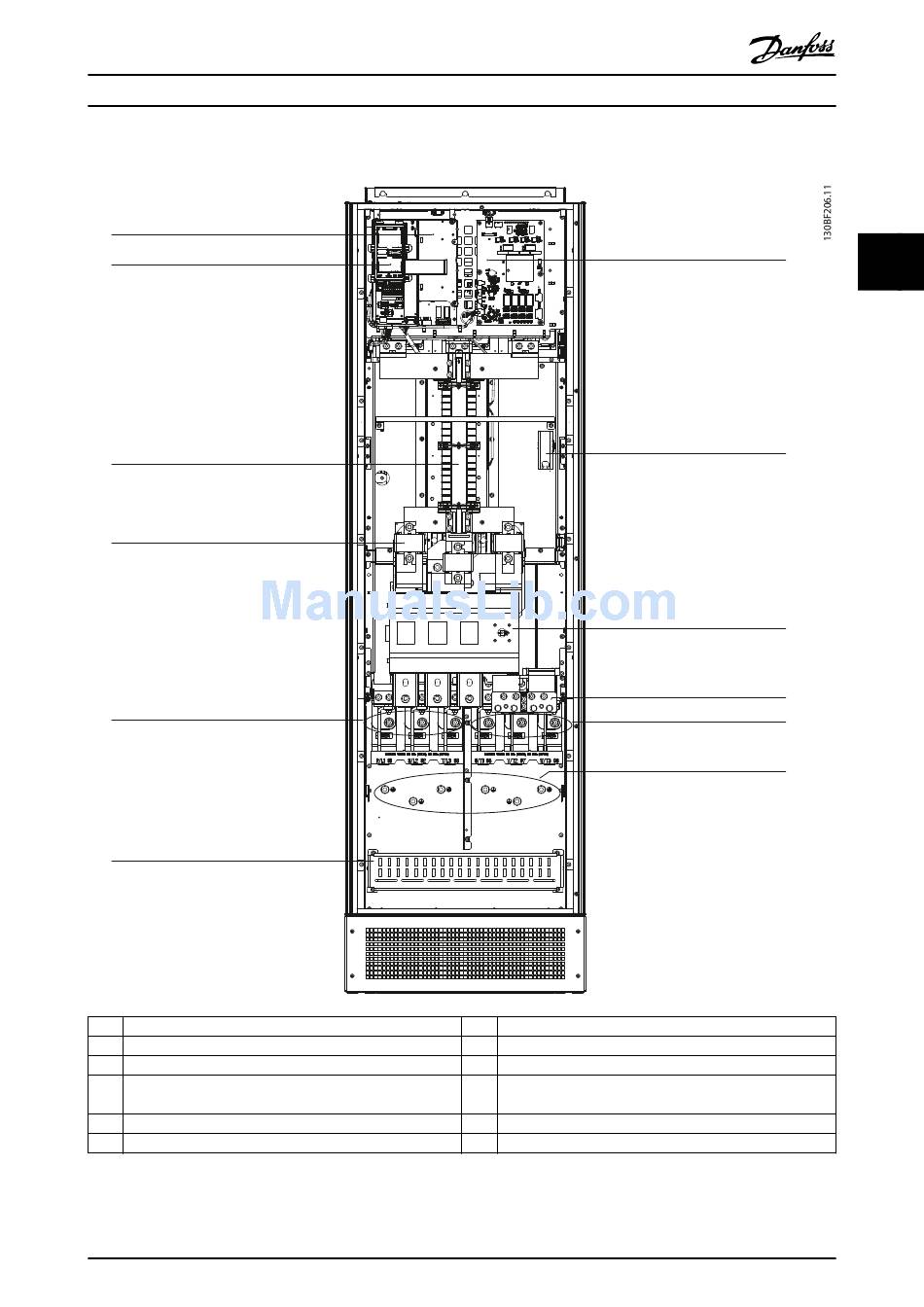

Illustration 3.1 Interior View of Enclosure E1h (Enclosure E2h is Similar)
MG22A102
Operating Guide
+ REGEN 82
FASTENER TORQUE:
M10 19Nm (14FT-LB)
M12 35Nm (26FT-LB)
7
Fan power card
8
Space heater (optional)
9
Mains disconnect (optional)
10
Brake/regeneration terminals (optional)
11
Motor terminals
12
Ground terminals
Danfoss A/S © 01/2017 All rights reserved.
- REGEN 83
FASTENER TORQUE:
M10 19Nm (14FT-LB)
M12 35Nm (26FT-LB)
3
3
7
8
9
10
11
12
7
