Electrical Installation

5.3 Wiring Schematic

230 V AC
50/60 Hz
3-phase
power
input
Load share
(optional)
+10 V DC
-10 V DC - +10 V DC
0/4-20 mA
-10 V DC - +10 V DC
0/4-20 mA

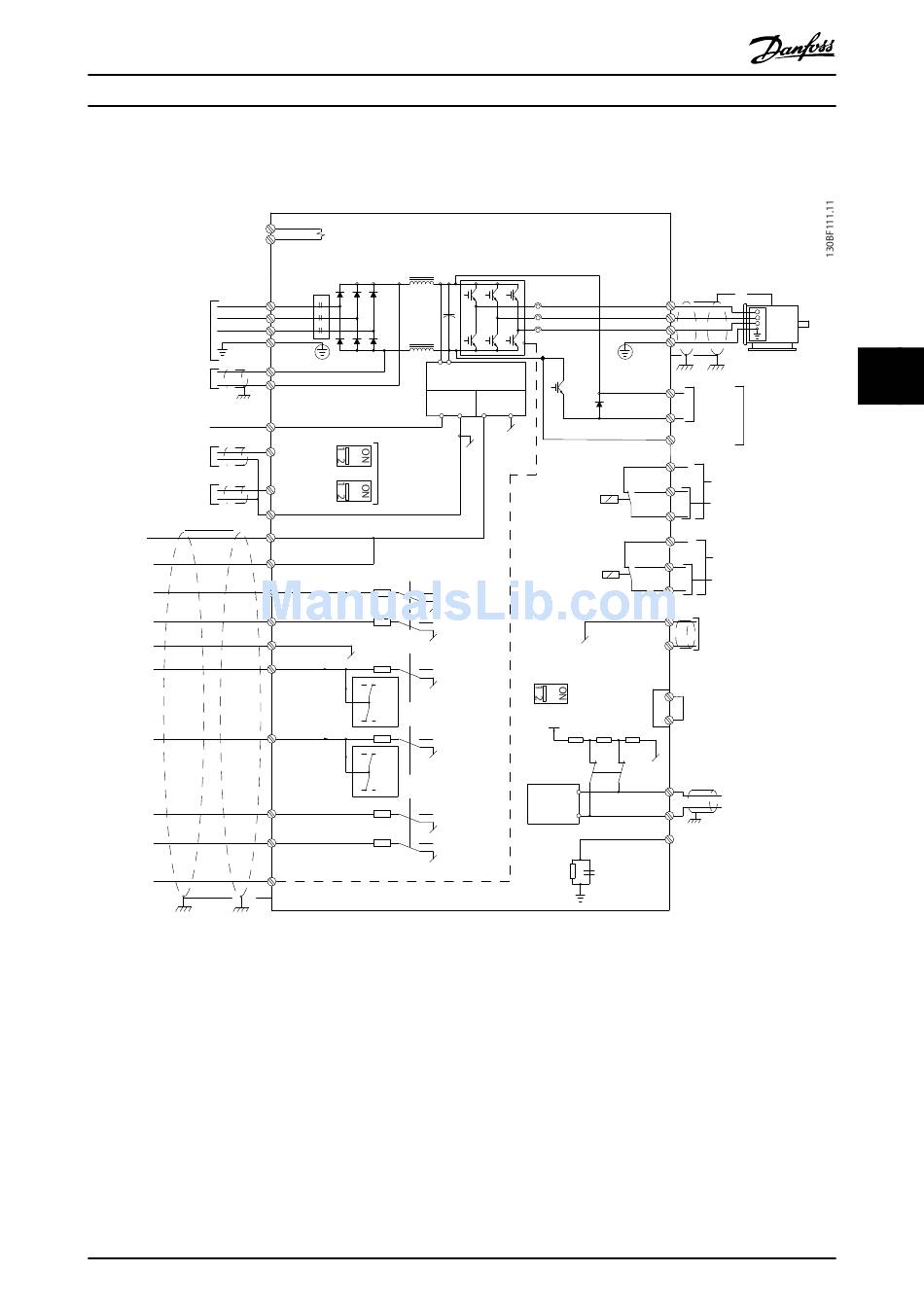

Illustration 5.2 Basic Wiring Schematic
A=Analog, D=Digital
1) Terminal 37 (optional) is used for Safe Torque Off. For Safe Torque Off installation instructions, refer to the Safe Torque Off
Operating Guide.
MG22A102
Operating Guide
TB5
R1 Space heater (optional)
91 (L1)
92 (L2)
93 (L3)
95
PE
Switch mode
88 (-)
power supply
89 (+)
10 V DC
15 mA
50 (+10 V OUT)
+ -
A53 U-I (S201)
53 (A IN)
ON=0-20 mA
A54 U-I (S202)
OFF=0-10 V
54 (A IN)
55 (COM A IN)
12 (+24 V OUT)
13 (+24 V OUT)
P 5-00
24 V (NPN)
18 (D IN)
0 V (PNP)
24 V (NPN)
19 (D IN)
0 V (PNP)
20 (COM D IN)
24 V (NPN)
27 (D IN/OUT)
0 V (PNP)
24V
0V
24 V (NPN)
29
(D IN/OUT)
0 V (PNP)
24V
0V
24 V (NPN)
32 (D IN)
0 V (PNP)
24 V (NPN)
33 (D IN)
0 V (PNP)
37 (D IN)
1)
Danfoss A/S © 01/2017 All rights reserved.
(U) 96
(V) 97
(W) 98
(PE) 99
Regen +
24 V DC
(R+) 82
200 mA
+ -
(R-) 81
Regen - 83
Relay1
Relay2
(COM A OUT) 39
(A OUT) 42
S801/Bus Term.
OFF-ON
ON=Terminated
OFF=Open
5V
S801
RS485
(P RS485) 68
interface
(N RS485) 69
(COM RS485) 61
Motor
Brake
Regen (optional)
resistor
(optional)
03
240 V AC, 2A
02
400 V AC, 2A
01
06
240 V AC, 2A
05
400 V AC, 2A
04
Analog output
0/4-20 mA
1
Brake temperature
(NC)
2
0V
RS485
(PNP) = Source
(NPN) = Sink
23
5 5
