Electrical Installation
5.7.2 Mains, Motor, and Ground for E2h
5
5
6X
613 (24.1)
1
515 (20.3)
485 (19.1)
200 (7.9)
1
Mains terminals
2
Brake or regeneration terminals

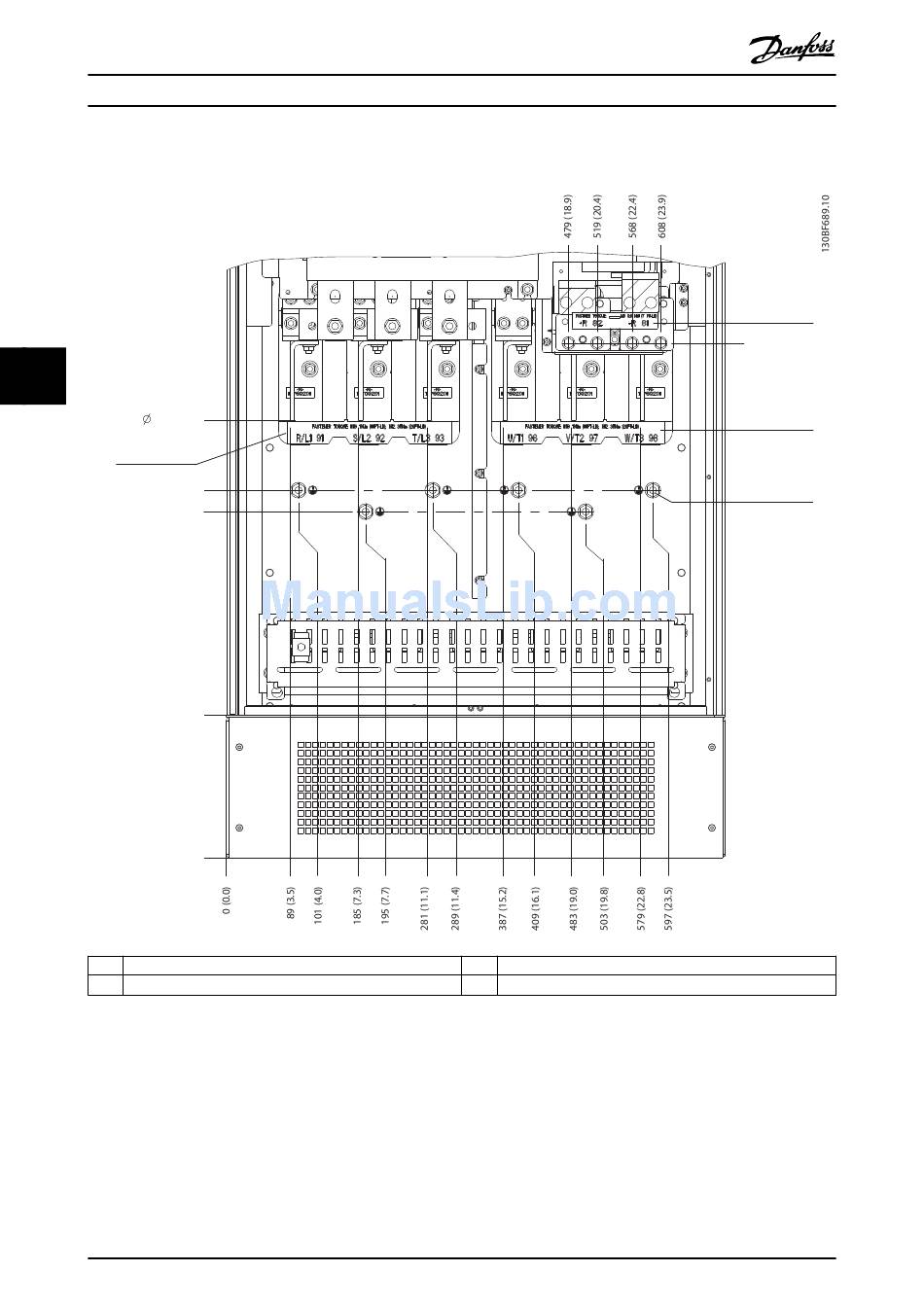

Illustration 5.8 E2h Terminal Dimensions (Front View)
32
0 (0.0)
Danfoss A/S © 01/2017 All rights reserved.
VLT® AQUA Drive FC 202
3
Motor terminals
4
Ground terminals, M10 nut
2
721 (28.4)
3
4
MG22A102
