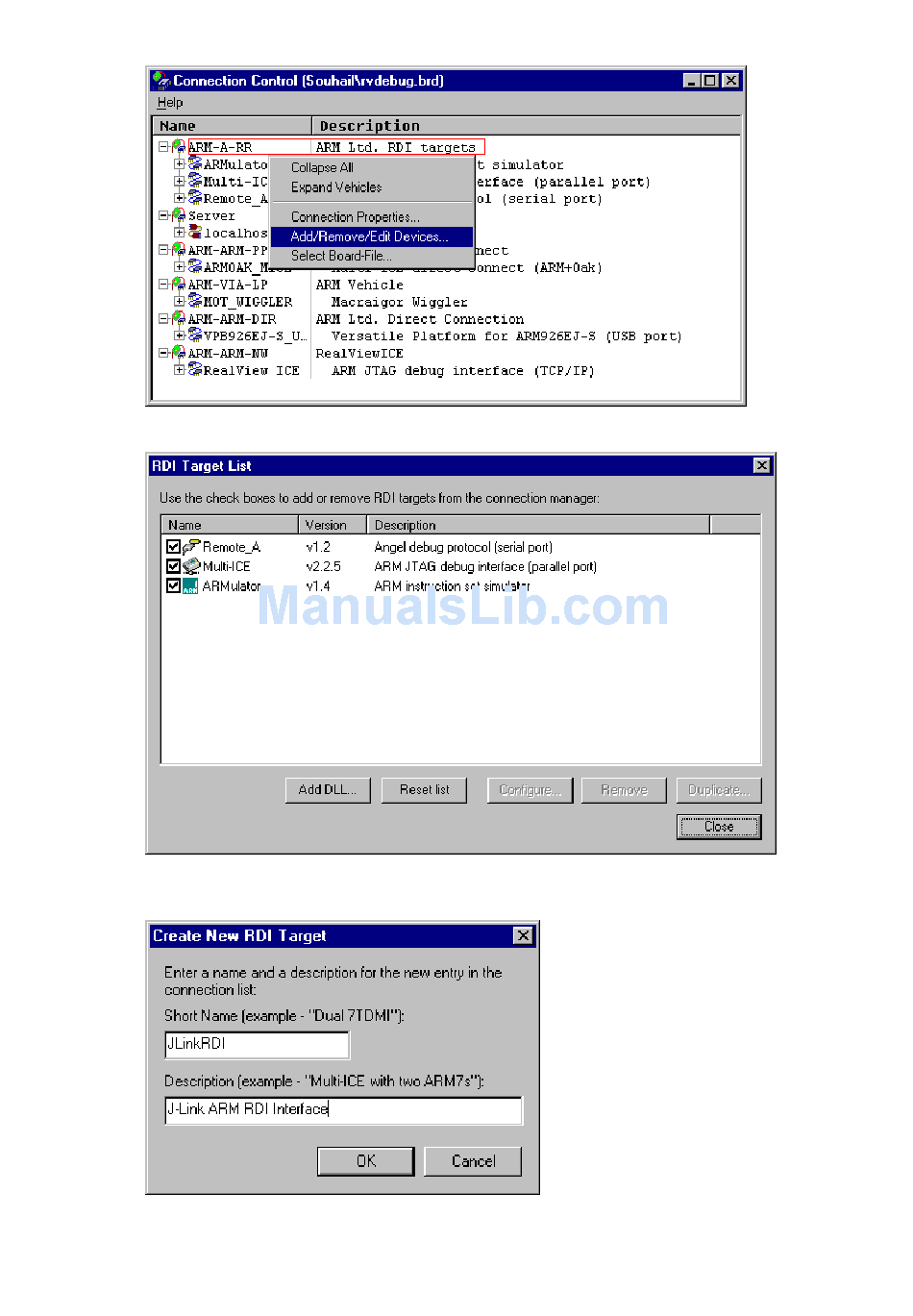

4. Now select Add DLL to add the JLinkRDI.dll. Select the installation path of the
software, for example: C:\Program Files\SEGGER\JLinkARM_V350g\JLinkRDI.dll
5. After adding the DLL, an additional Dialog opens and asks for description: (These values
are voluntary, if you do not want change them, just click OK) Use the following values
and click on OK, Short Name: JLinkRDI Description: J-Link RDI Interface.
6. Back in the RDI Target List Dialog, select JLink-RDI and click Configure. For more
information about the generic setup of J-Link RDI, please refer to Configuration on
page 287.
