2 Installation

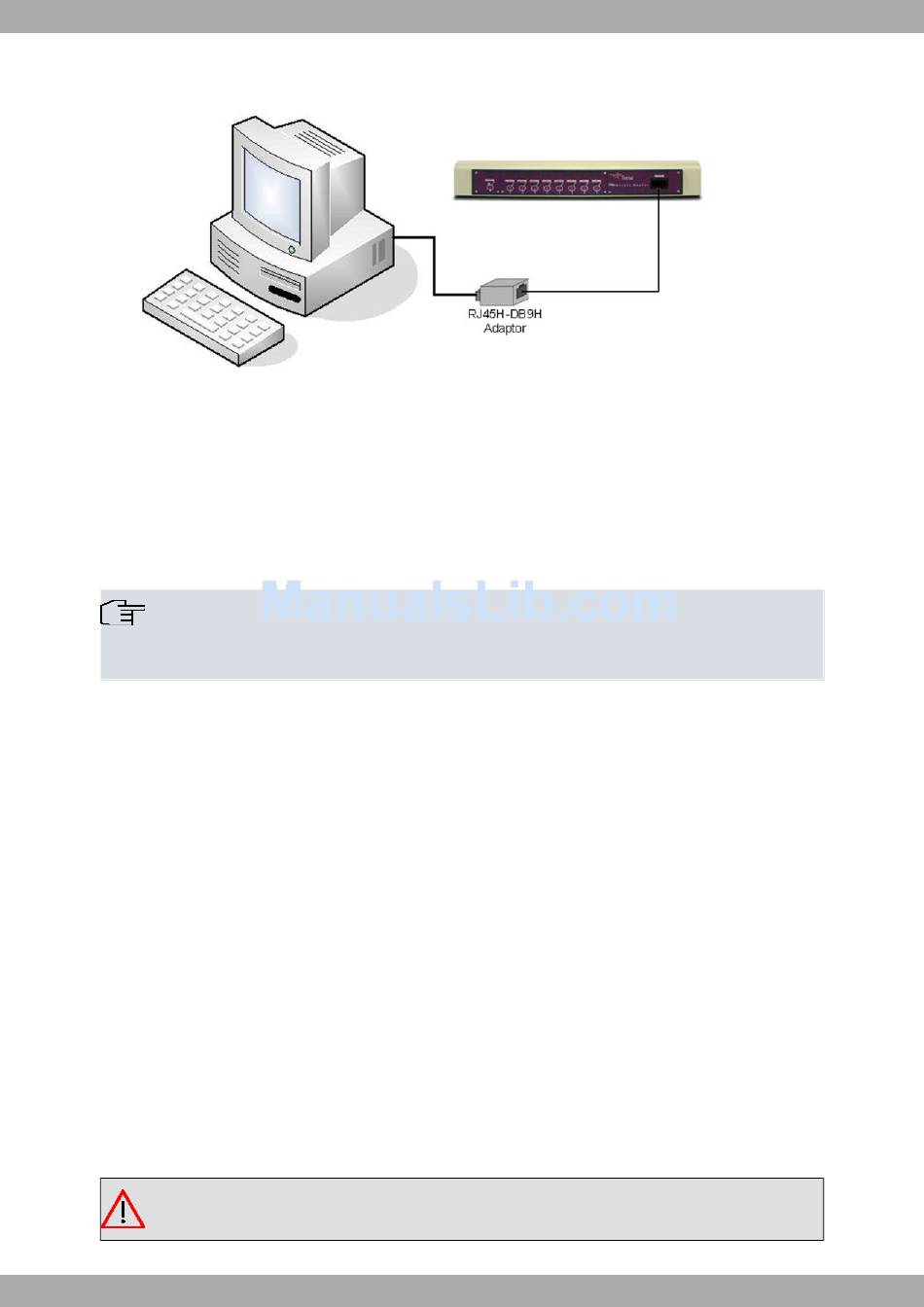

Fig. 13: Connections for the configuration
2.1.5.2 Configuring through the IP terminal (LAN1..4 connectors)
The Teldat H/L includes a default configuration that activates if the router has not been pre-configured.
The router's default configuration establishes the following IP address and mask:
• IP address: 192.168.1.1
• IP mask: 255.255.255.0
Note
Some devices leave the factory with customized settings. This personalization can mean that the de-
fault configuration is diferent from the one show above.
This initial configuration allows you to access the router's configuration console through the Telnet IP protocol. To do
this, follow these steps:
• Configure the Ethernet interface on the IP terminal (normally a PC) using the IP address from the following range
[192.168.1.2, 192.168.1.254] and mask 255.255.255.0. E. g. 192.168.1.2, 255.255.255.0.
• Conect the IP terminal's Ethernet interface to any of the Ethernet Switch ports on the Teldat H/L (the LAN1..4 con-
nectors) by means of the Ethernet cable (RJ45) provided.
• Start a Telnet session from the IP terminal to IP address 192.168.1.1 (the Teldat H/L 's default address).
• The default configuration does not ask for login credentials (user/password) to access the console.
For further information on how to fully configure the router, please see the manuals on the CD supplied with the
router.

2.2 Installing the SIM card

The Teldat H/L router has a Wireless WAN interface that needs a SIM card to operate. There are certain services
(CDMA) provided by several carriers in some countries that do not require SIM cards.
The Teldat H/L has two SIM trays. One is accessible from the outside while the other is located inside the device.
In installations where a SIM card is required, you must always insert at least one. When only one SIM card is going
to be used, it can be inserted in either tray. However, remember to configure the router so that it selects the right
tray.
Warning
Never install the SIM card when the device is switched on.
