Turntable Rotation Manifold Components - Genie Z-60/34 Service Manual

November 2003
REV A
8-5

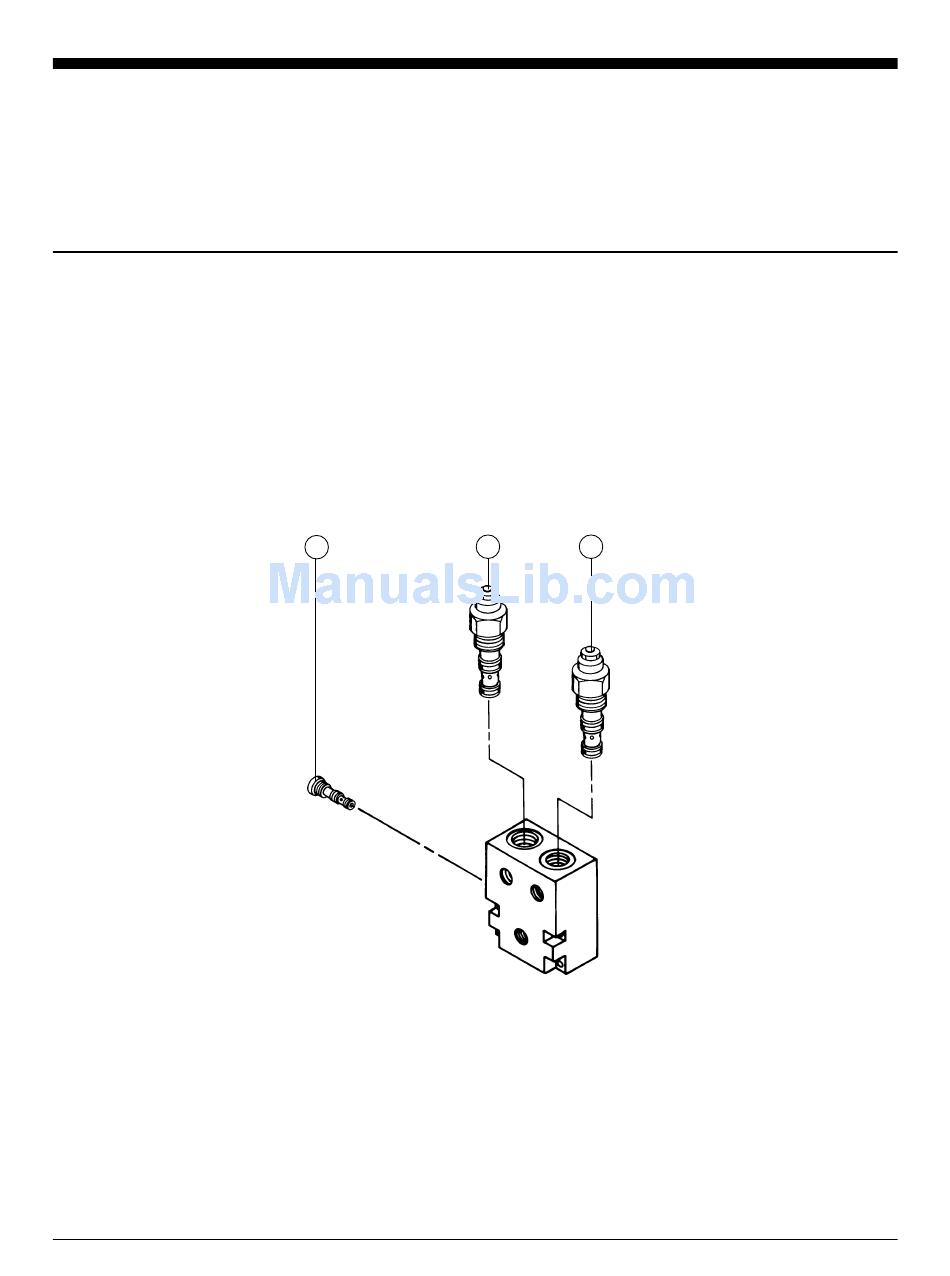

Turntable Rotation Manifold Components

The turntable rotation manifold is mounted to the turntable rotation motor located in the boom storage
compartment.
Index
No. Description
1 Shuttle valve 2 position 3 way ........ CA ........... Turntable rotation brake release ...... 10-13 ft-lbs / 14-18 Nm
2 Counterbalance valve ..................... CB ........... Turntable rotate right ....................... 35-40 ft-lbs / 47-54 Nm
3 Counterbalance valve ..................... CC ........... Turntable rotate left .......................... 35-40 ft-lbs / 47-54 Nm
Part No. 75861
Schematic
Item Function
1
1 2 3
1 2 3 1 2 3 4 5
1 2 3 1 2 3 4 5
MM
1 2 3 4 5
1 2 3 4 5
1 2 3 4 5 6
1 2 3 4 5 6
LL
1 2 3 4 5 6
1 2 3 4 5 6
CA
Genie Z-60/34
Section 4 • Repair Procedures
2 3
1 2 3 4 5 6
1 2 3 4 5 6
1 2 3 4 5 6
NN
1 2 3 4 5 6
CB
1 2 3 4 5 6
CC
MANIFOLDS
Torque
4 - 47
