Jib Boom / Platform Rotate Manifold Components Before Serial Number 4461 - Genie Z-60/34 Service Manual

November 2003
REV A
3-3
Jib Boom / Platform Rotate Manifold Components
(before serial number 4461)
Index
No. Description
1 Solenoid valve, 2 position 2 way ....... BA ......... Platform rotate .................................. 20-25 ft-lbs / 27-34 Nm
2 Solenoid valve, 2 position 2 way ....... BB ......... Jib boom up/down ............................. 20-25 ft-lbs / 27-34 Nm
3 Orifice, 0.031 inch / 0.787 mm .......... BC ........ Platform rotate circuit
4 Orifice, 0.031 inch / 0.787 mm .......... BD ........ Platform rotate circuit
Part No. 75861

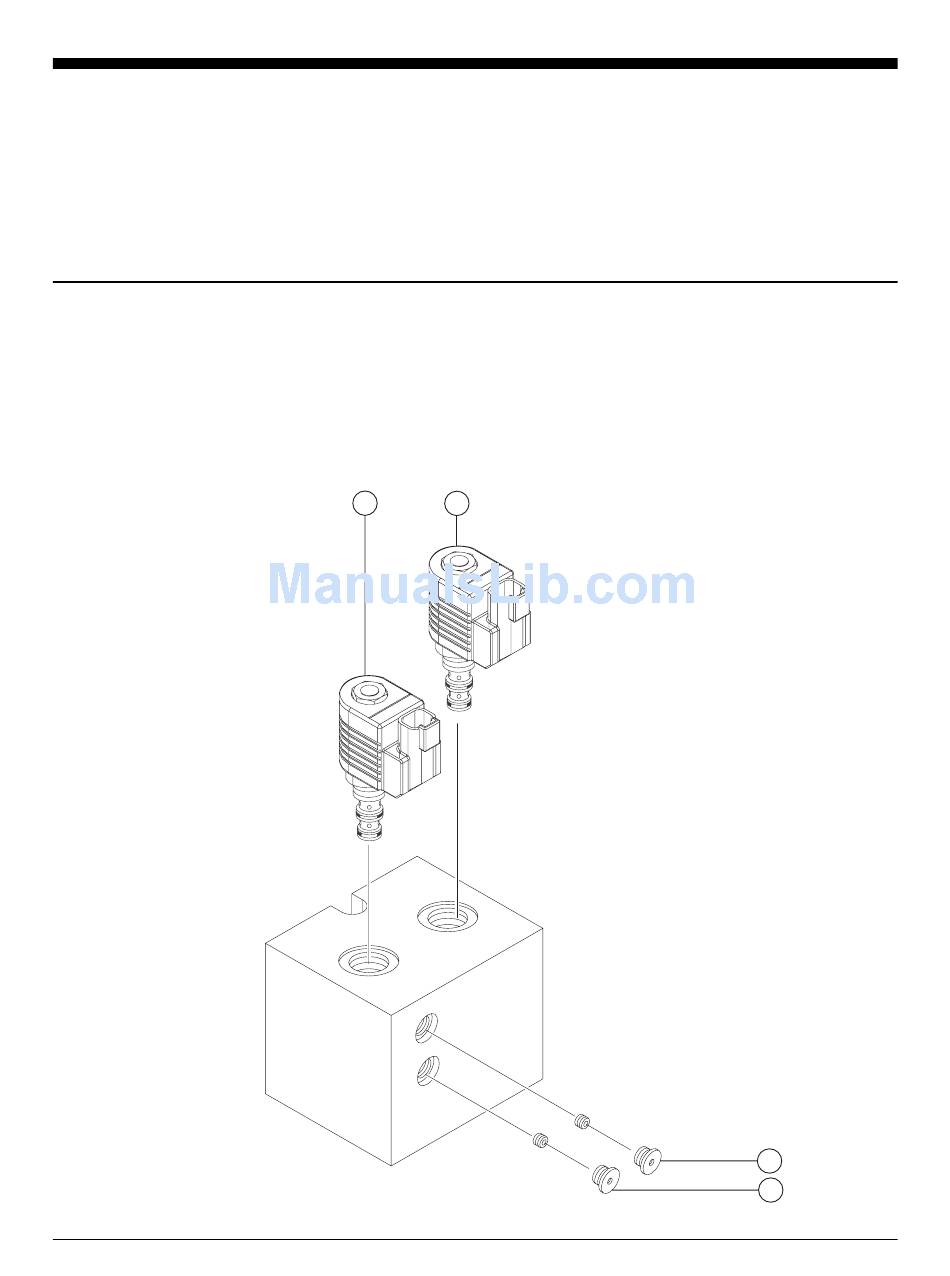

Schematic
Item Function
1 2
BB
BA
Genie Z-60/34
Section 4 • Repair Procedures
JIB BOOM COMPONENTS
Torque
BC
BD
3
4
4 - 13
