Viewing A Named Source-Port Filter; Using Named Source-Port Filters - HP ProCurve 2910al Access Security Manual

Accounting Workstation 1
Accounting Workstation 2

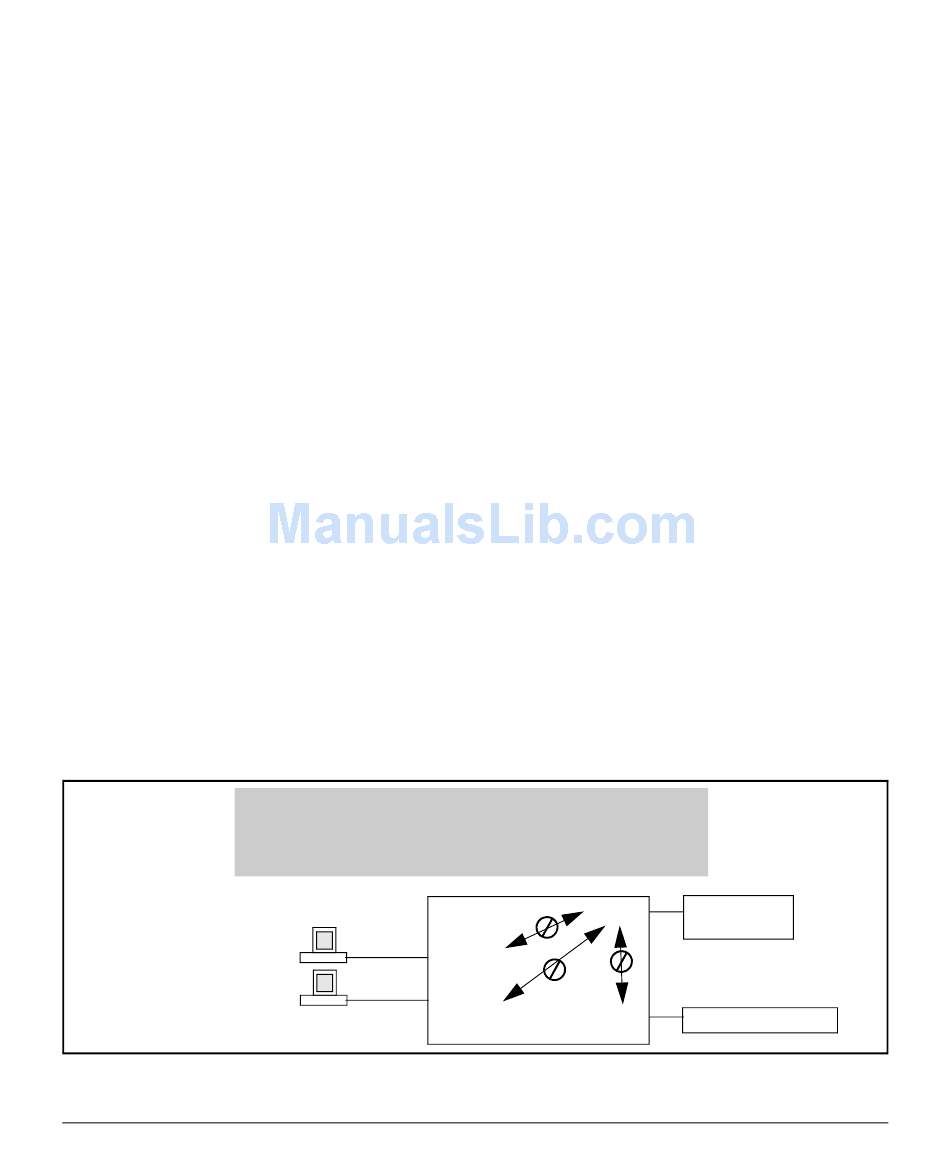

Figure 11-4. Network Configuration for Named Source-Port Filters Example

Viewing a Named Source-Port Filter

You can list all source-port filters configured in the switch, both named and
unnamed, and their action using the show command below.
Syntax: show filter source-port
Displays a listing of configured source-port filters, where
each filter entry includes a Filter Name, Port List, and
Action:
Filter Name: The filter-name used when a named
source-port filter is defined. Non-named source-port
filters are automatically assigned the port or port trunk
number of the source port.
Port List: Lists the port and port trunk destinations
using the filter. Named source-port filters that are not in
use display NOT USED.
Action: Lists the ports and port trunks dropped by the
filter. If a named source-port filter has been defined but
not configured, this field is blank.
index
[ ]
For the supplied index (IDX) displays the action taken
(Drop or Forward) for each destination port on the switch.

Using Named Source-Port Filters

A company wants to manage traffic to the Internet and its accounting server
on a 26-port switch. Their network is pictured in Figure 11-4. Switch port 1
connects to a router that provides connectivity to a WAN and the Internet.
Switch port 7 connects to the accounting server. Two workstations in
accounting are connected to switch ports 10 and 11.
Network Design
1. Accounting Workstations may only send traffic to the Accounting Server.
2. No Internet traffic may be sent to the Accounting Server or Workstations.
3 All other switch ports may only send traffic to Port 1.
Port 1
Port 10
Port 11
Port 7
Traffic/Security Filters and Monitors
Filter Types and Operation
