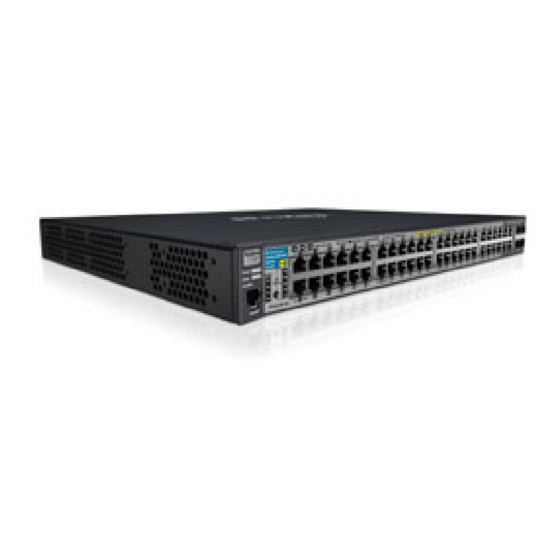

HP ProCurve 2910al Switch Series
Product overview
The HP ProCurve 2910al Switch Series consists of four
switches: the HP ProCurve 2910al-24G and
2910al-24G-PoE+ Switches with 24 10/100/1000
ports, and the HP ProCurve 2910al-48G and
2910al-48G-PoE+ Switches with 48 10/100/1000
ports. Each switch has four dual-personality ports for
10/100/1000 or mini-GBIC connectivity. In addition,
the 2910al switch supports up to four optional
10-Gigabit (CX4 and/or SFP+) ports, thereby offering
the most flexible and easy-to-deploy uplinks in its
class. Together with static and RIP IPv4 routing, robust
security and management, enterprise-class features,
free lifetime warranty, and free software updates, the
2910 series is a cost-effective, scalable solution for
customers who are building high-performance
networks. These switches can be deployed at
enterprise edge and remote branch offices, converged
networks, and data center top of rack.
Key features
High-performance Gigabit access switch
Four optional 10-Gigabit ports (CX4 and/or SFP+)
IEEE 802.3af/802.3at functionality ( PoE/PoE+)
Layer 2 switching with static and RIP IP routing
Lifetime Warranty, sFlow, ACLs, and rate limiting
Advertisement
Table of Contents
Related Manuals for HP ProCurve 2910al-24G
Summary of Contents for HP ProCurve 2910al-24G
-
Page 1: Product Overview
HP ProCurve 2910al Switch Series Product overview The HP ProCurve 2910al Switch Series consists of four switches: the HP ProCurve 2910al-24G and 2910al-24G-PoE+ Switches with 24 10/100/1000 ports, and the HP ProCurve 2910al-48G and 2910al-48G-PoE+ Switches with 48 10/100/1000 ports. Each switch has four dual-personality ports for 10/100/1000 or mini-GBIC connectivity. -
Page 2: Features And Benefits
HP ProCurve MSM3xx-R Access Points, HP ProCurve MSM7xx Mobility and Access Controllers, HP ProCurve RF Manager IDS/IPS Systems, HP ProCurve MSM Power Supplies, HP ProCurve 1-Port Power Injector, and HP ProCurve CNMS Appliances. Disk drives in the HP ProCurve ONE Services zl Modules have a five year hardware warranty. Standalone software, upgrades, or licenses may have a different warranty duration. -
Page 3: Layer 2 Switching
• Port monitoring for network threats: provides sampled port traffic using sFlow technology to the HP ProCurve Network Immunity Manager application for Network Behavior Anomaly Detection (NBAD) analysis to detect threats and mitigate threats at the port where the threat originated •... -
Page 4: Quality Of Service (Qos)
• Software releases: refer to the HP Web site at www.procurve.com/support for details on the software releases provided and the period during which software releases are available... -
Page 5: Specifications
HP ProCurve 2910al Switch Series Specifications HP ProCurve 2910al-24G Switch (J9145A) Ports 20 auto-sensing 10/100/1000 ports (IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX, IEEE 802.3ab Type 1000Base-T); Media Type: Auto-MDIX; Duplex: 10Base-T/100Base-TX: half or full; 1000Base-T: full only 4 dual-personality ports; each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T;... - Page 6 Installation with HP-provided configuration, system-based pricing (U4830E) Refer to the HP Web site at service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office. Standards and protocols Device management...
- Page 7 IEC 61000-3-2 Flicker IEC 61000-3-3 Management HP ProCurve Manager Plus; HP ProCurve Manager; command-line interface; Web browser; out-of-band management (serial RS-232C) HP ProCurve 2910al-48G-PoE+ Switch (J9148A) 44 auto-sensing 10/100/1000 ports (IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX, IEEE 802.3ab Type 1000Base-T); Media Type: Auto-MDIX;...
- Page 8 Installation with HP-provided configuration, system-based pricing (U4830E) Refer to the HP Web site at service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office. Standards and protocols Device management...
- Page 9 © Copyright 2009 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty.
