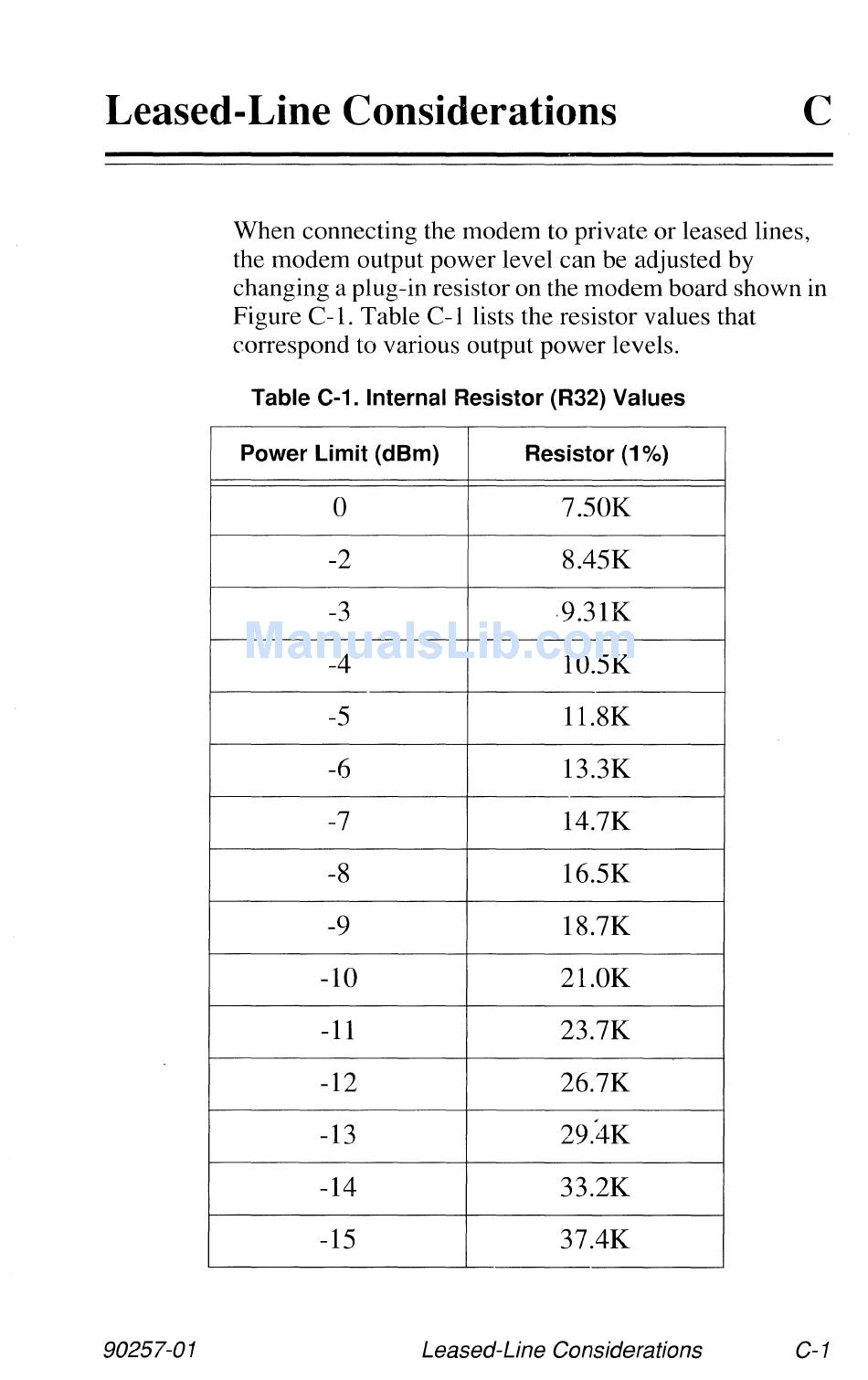

Leased -Line Considerations
C
90257-01
When connecting the modem to private or leased lines,
the modem output power level can be adjusted by
changing a plug-in resistor on the modem board shown in
Figure C-I. Table C-J lists the resistor values that
correspond to various output power levels.
Table C-1. Internal Resistor (R32) Values
Power Limit (dBm) Resistor (1 %)
0 7.50K
-2 8.45K
-3 9.31K
-4
lO.5K
-5
11.8K
-6 l3.3K
-7 14.7K
-8 16.5K
-9 18.7K
-10
21.0K
-11 23.7K
-12 26.7K
-l3 29.4K
-14
33.2K
-15
37.4K
