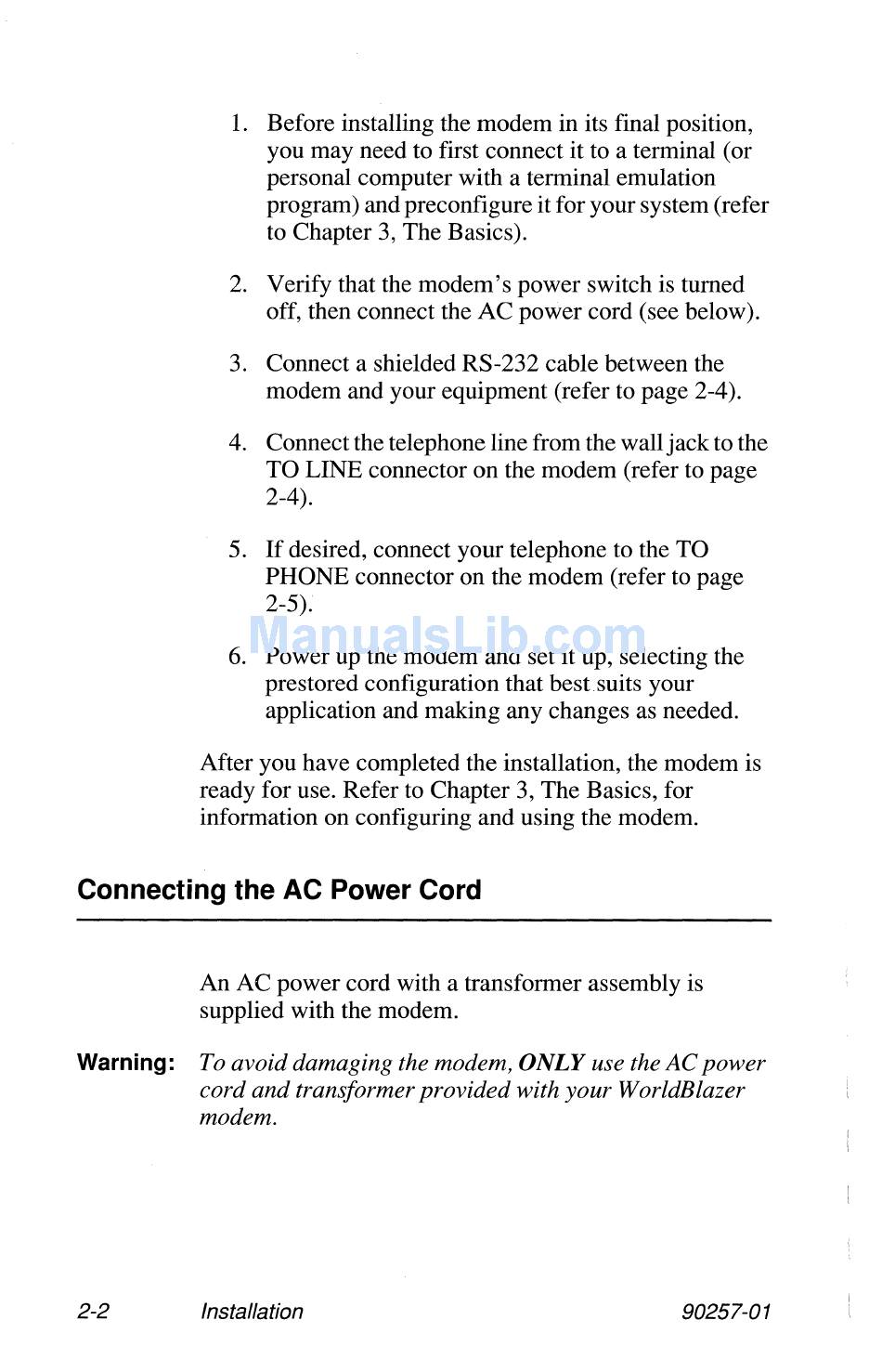

1. Before installing the modem in its final position,
you may need to first connect it to a terminal (or
personal computer with a terminal emulation
program) and preconfigure it for your system (refer
to Chapter 3, The Basics).
2. Verify that the modem's power switch is turned
off, then connect the AC power cord (see below).
3. Connect a shielded RS-232 cable between the
modem and your equipment (refer to page 2-4).
4. Connect the telephone line from the wall jack to the
TO LINE connector on the modem (refer to page
2-4).
5. If desired, connect your telephone to the TO
PHONE connector on the modem (refer to page
2-5).
6. Power up the modem and set it up, selecting the
prestored configuration that best suits your
application and making any changes as needed.
After you have completed the installation, the modem is
ready for use. Refer to Chapter 3, The Basics, for
information on configuring and using the modem.
Connecting the AC Power Cord
An AC power cord with a transformer assembly is
supplied with the modem.
Warning:
To avoid damaging the modem, ONLY use the AC power
cord and transformer provided with your WorldBlazer
modem.
2-2
Installation 90257-01
