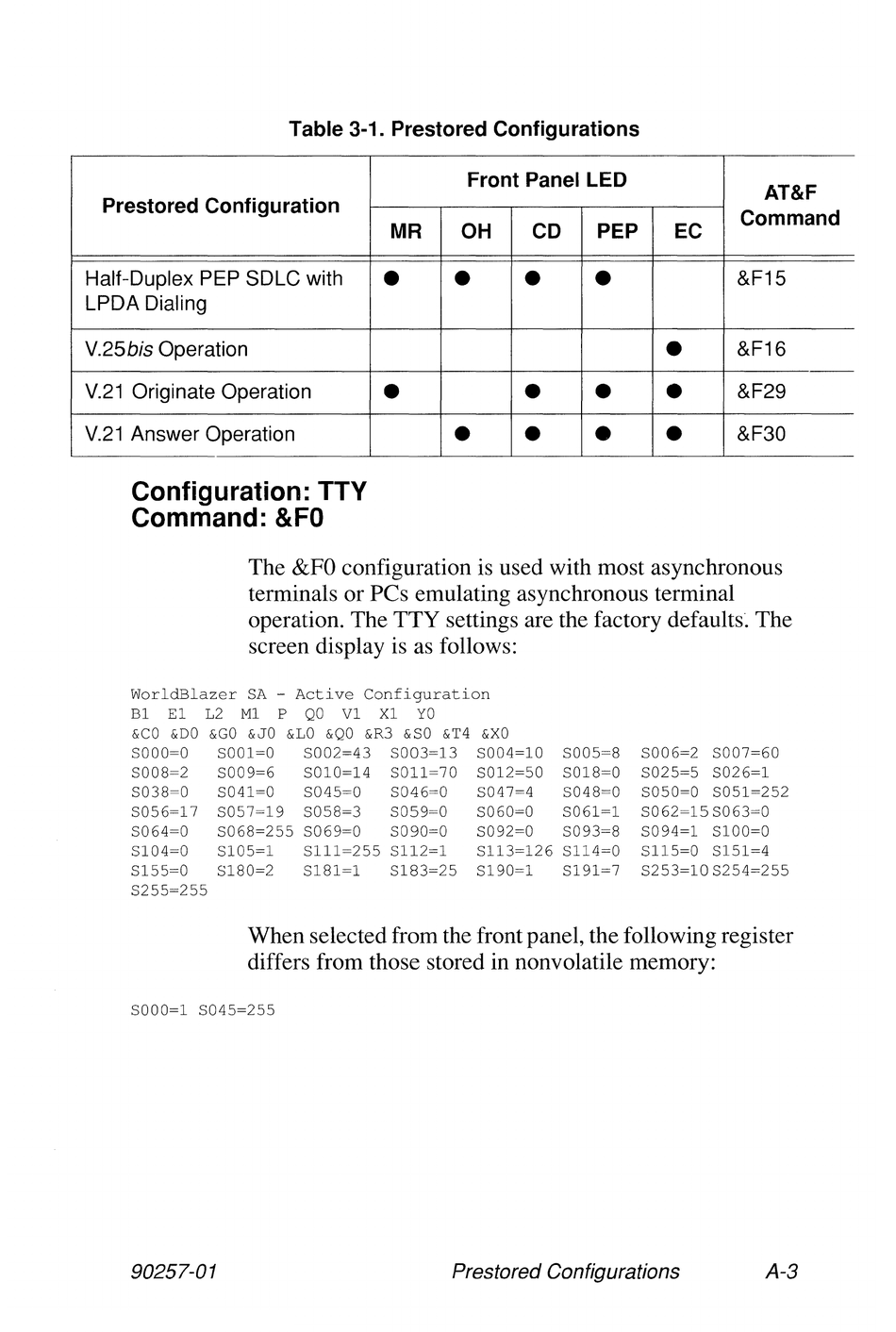

Table 3-1. Prestored Configurations
Presto red Configuration
Half-Duplex PEP SOLe with
LPDA Dialing
V.25bis Operation
V.21 Originate Operation
V.21 Answer Operation
Configuration: TTY
Command: &FO
MR
•
•
Front Panel LED
OH CD
PEP
• • •
• •
• • •
AT&F
EC
Command
&F15
•
&F16
•
&F29
•
&F30
The &FO configuration is used with most asynchronous
terminals or pes emulating asynchronous terminal
operation. The TTY settings are the factory defaults. The
screen display is as follows:
WorldBlazer SA - Active Configuration
B1 E1 L2 M1 P QO V1 Xl YO
&CO &00 &GO &JO &LO &QO &R3 &SO &T4 &XO
SOOO~O SOOl~O S002~43 S003~13 S004~10 S005~8 S006~2 S007~60
S008~2 S009~6 S010~14 SOll~70 S012~50 S018~O S025~5 S026~1
S038~O S041~O S045~O S046~O S047~4 S048~O S050~O S051~252
S056~17 S057~19 S058~3 S059~O S060~O S061~1 S062~15S063~O
S064~O S068~255 S069~O S090~O S092~O S093~8 S094~1 S100~O
S104~O S105~1 Slll~255 Sl12~1 Sl13~126 Sl14~O Sl15~O S151~4
S155~O S180~2 S181~1 S183~25 S190~1 S191~7 S253~10S254~255
S255~255
When selected from the front panel, the following register
differs from those stored in nonvolatile memory:
SOOO~l S045~255
90257-01
Prestored Configurations A-3
