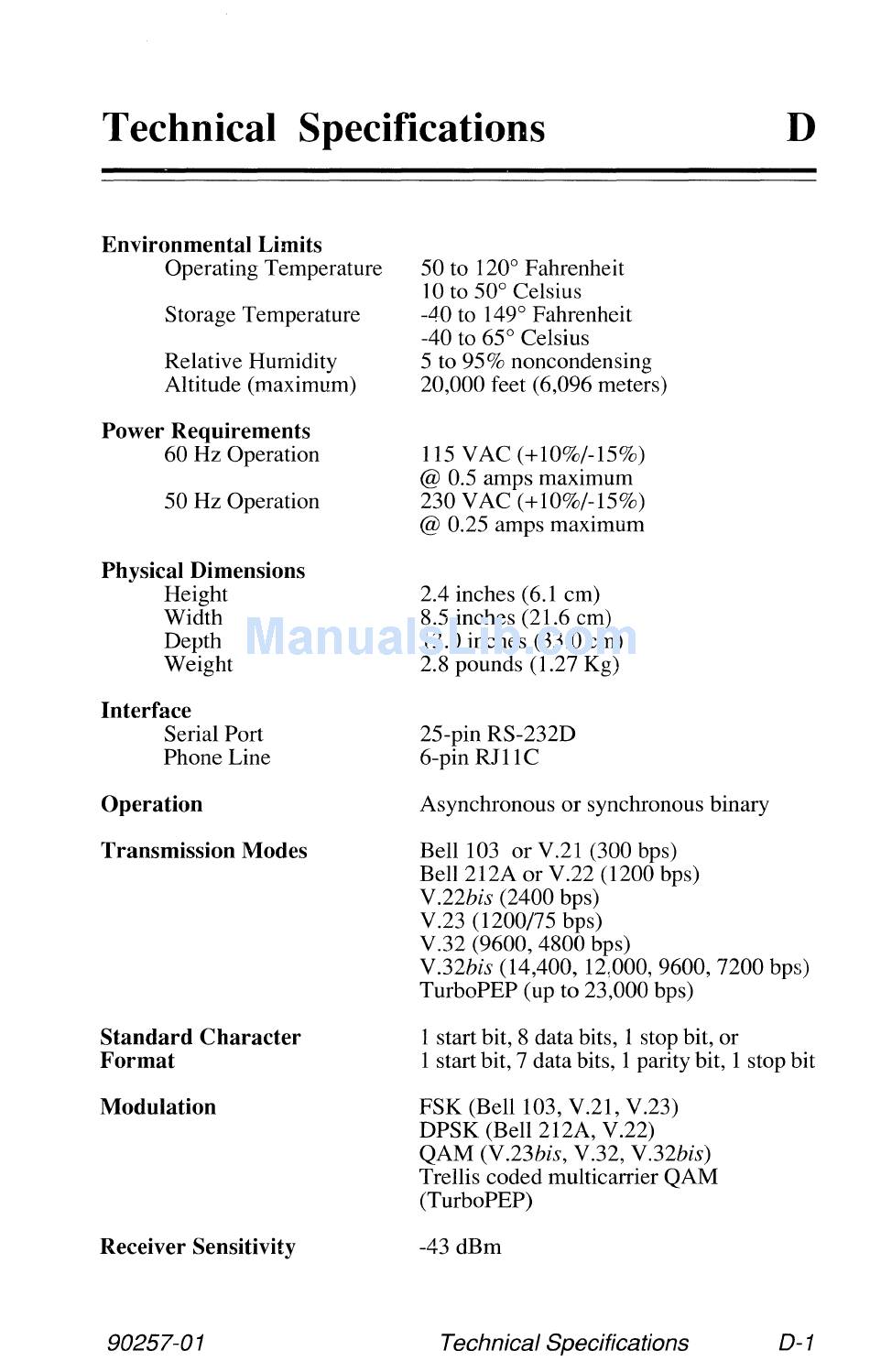

Technical Specifications D
Environmental Limits
Operating Temperature
Storage Temperature
Relative Humidity
Altitude (maximum)
Power Requirements
60 Hz Operation
50 Hz Operation
Physical Dimensions
Height
Width
Depth
Weight
Interface
Serial Port
Phone Line
Operation
Transmission Modes
Standard Character
Format
Modulation
Receiver Sensitivity
90257-01
50 to 120° Fahrenheit
10 to 50° Celsius
-.10 to 149° Fahrenheit
-40 to 65° Celsius
5 to 95% noncondensing
20,000 feet (6,096 meters)
115 VAC (+10%/-15%)
@
0.5 amps maximum
230 VAC (+10%/-15%)
@
0.25 amps maximum
2.4 inches (6.1 cm)
8.5 inches (21.6 cm)
13.0 inches (33.0 cm)
2.8 pounds
0.27
Kg)
25-pin RS-232D
6-pin RJIIC
Asynchronous or synchronous binary
Bell 103 or V.21 (300 bps)
Bell 212A or V.22 (1200 bps)
V.22his (2400 bps)
V.23 (1200/75 bps)
V.32 (9600, 4800 bps)
V.32his (14,400, 12,000,9600,7200 bps)
TurboPEP (up to 23,000 bps)
1 start bit, 8 data bits, 1 stop bit, or
1 start bit, 7 data bits, 1 parity bit, 1 stop bit
FSK (Bell 103, V.2l, V.23)
DPSK (Bell 212A, V.22)
QAM (V.23his, V.32, V.32bis)
Trellis coded multicarrier QAM
(TurboPEP)
-43 dBm
Technical Specifications
0-1
