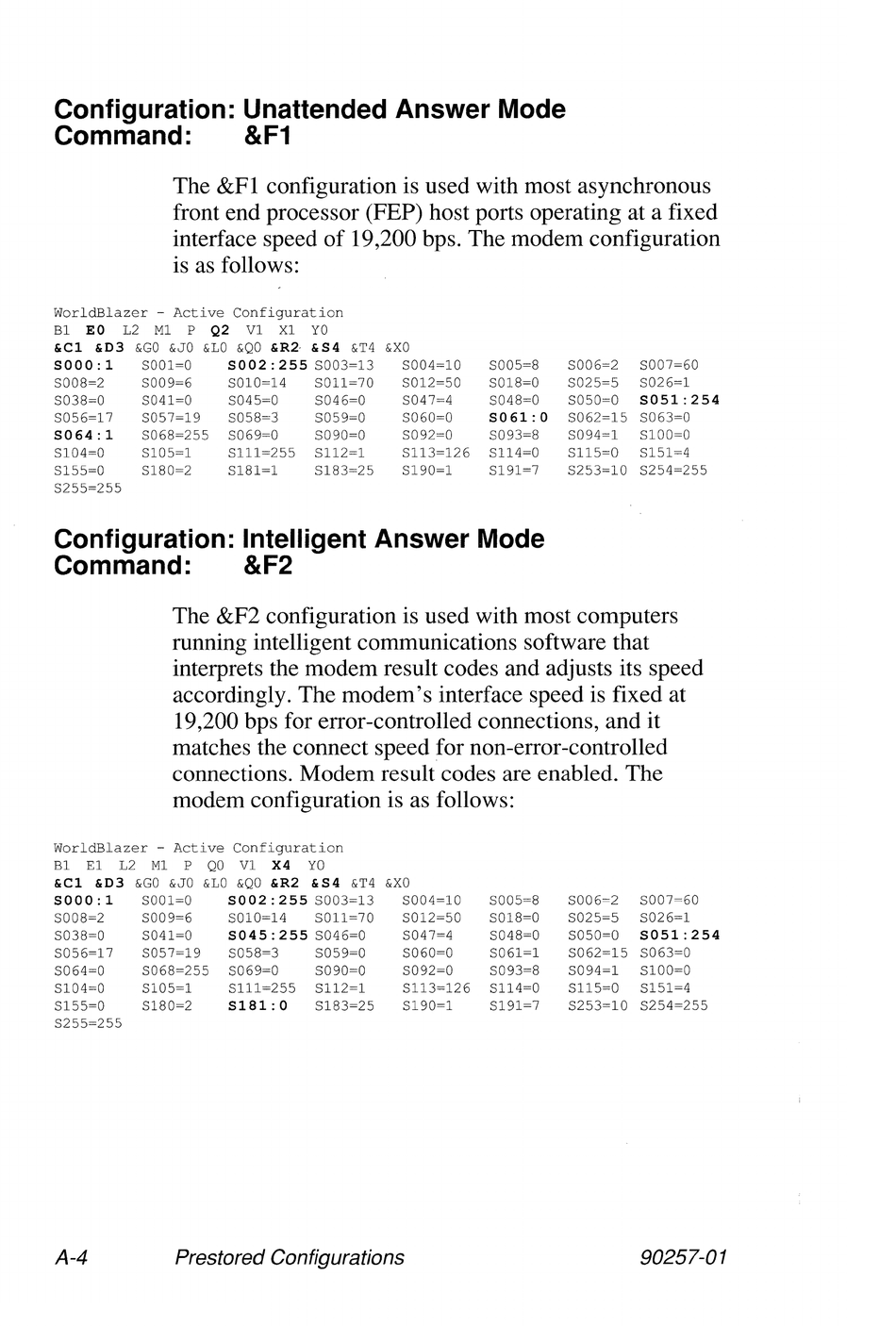

Configuration: Unattended Answer Mode
Command: &F1
The &F1 configuration is used with most asynchronous
front end processor (FEP) host ports operating at a fixed
interface speed of 19,200 bps. The modem configuration
is as follows:
WorldBlazer - Active Configuration
B1
EO
L2 M1
P
Q2 VI Xl YO
&C1 &D3 &GO &JO &LO &QO &R2 &84 &T4 &XO
8000:1
SOOl~O
8002: 255
SOO3~13 SOO4~10 SOO5~8 SOO6~2 SOO7~60
SOO8~2 SOO9~6
S010~14
SOl1~70
S012~50 S018~O S025~5 S026~1
S038~O S041~O S045~O S046~0 S047~4 S048~0 S050~O
8051:254
S056~17 S057~19
S058~3
S059~0 S060~0
8061:0
S062~15 S063~0
8064:1
S068~255
S069~0
S090~0
S092~O S093~8 S094~1 SlOO~O
S104~O Sl05~1 Slll~255 S112~1 S1l3~126 S114~0 S1l5~O S151~4
S155~O
S180~2 S181~1
S18>25
S190~1 S191~7 S253~10 S254~255
S255~255
Configuration: Intelligent Answer Mode
Command: &F2
The &F2 configuration is used with most computers
running intelligent communications software that
interprets the modem result codes and adjusts its speed
accordingly. The modem's interface speed is fixed at
19,200 bps for error-controlled connections, and it
matches the connect speed for non-error-controlled
connections. Modem result codes are enabled. The
modem configuration is as follows:
WorldBlazer - Active Configuration
B1 El L2 M1
P
QO VI
X4
YO
&C1 &D3 &GO &JO &LO &QO &R2 &84 &T4 &XO
8000:1
SOOl~O
8002: 255 SOO>13
S004~10 S005~8 S006~2
S007-60
S008~2 SOO9~6 SOlO~14 SOll~70 S012~50 S018~O S025~5 S026~1
S038~O S041~O
8045:255
S046~O S047~4 S048~0 S050~O
8051:254
S056~17 S057~19 S058~3 S059~O S060~0 S061~1 S062~15 S063~O
S064~O S068~255 S069~0 S090~O
S092~O S093~8 S094~1 S100~O
S104~O SlO5~1 S1l1~255 S112~1 Sl13~126 S114~0 S1l5~O S151~4
S155~O
S180~2
8181:0
S18>25 S190~1 S191~7 S253~10 S254~255
S255~255
A-4 Presto red Configurations 90257-01
