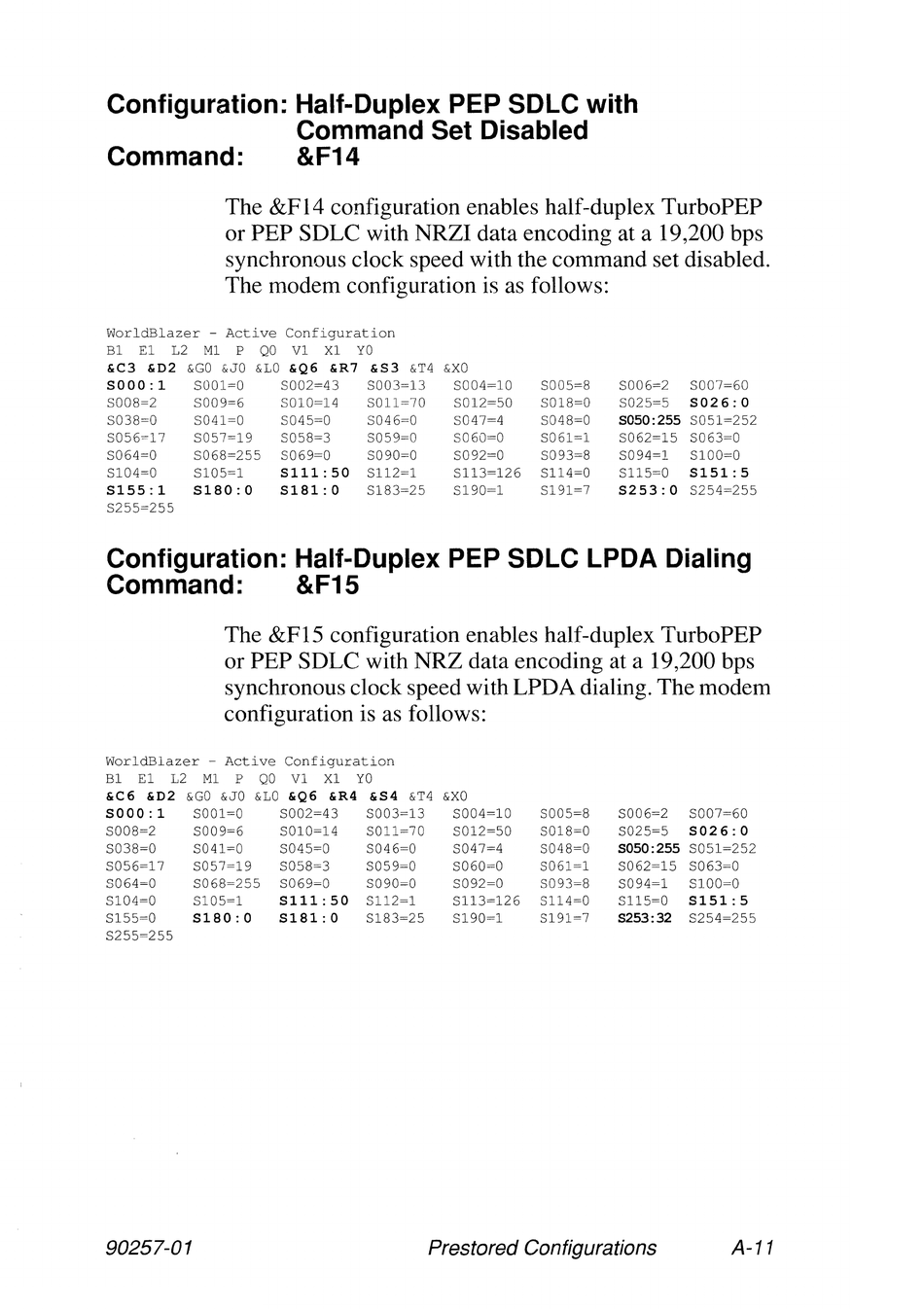

Configuration: Half-Duplex PEP SDLC with
Command Set Disabled
Command: &F14
The &Fl4 configuration enables half-duplex TurboPEP
or PEP SDLC with NRZI data encoding at a 19,200 bps
synchronous clock speed with the command set disabled.
The modem configuration is as follows:
WorldBlazer - Active Configuration
Bl El L2 Ml
P
QO
VI
Xl YO
&C3 &D2 &GO &JO &LO &Q6 &R7 &S3 &1'4 &XO
SOOO:1
SOOl~O SOO2~43 SOO3~13 SOO4~lO SOO5~8 SOO6~2 SOO,)~60
SOO8~2 SOO9~6 SOlO~14 SOl1~70 S012~50 S018~O S025~5 S026:0
S038~O S041~O S045~O S046~O S047~4 S048~O
S050:255
S051~252
S056-l7
S057~19 S058~3 S059~O S060~O S06l~1 S062~15 S063~O
S064~O S068~255 S069~O S090~O S092~O S093~8 S094~1 SlOO~O
SlO4~O SlO5~1
S111:50
S112~1 S113~126 S114~O S115~O
S151:5
S155:1 S180:0 S181:0
S183~25 S190~1 Sl91~7
S253:0
S254~255
S255~255
Configuration: Half-Duplex PEP SDLC LPDA Dialing
Command: &F15
The &F15 configuration enables half-duplex TurboPEP
or PEP SDLC with NRZ data encoding at a 19,200 bps
synchronous clock speed with LPDA dialing. The modem
configuration is as follows:
WorldBlazer - Active Configuration
B1 E1 L2 Ml
P
QO VI Xl YO
&C6 &D2 &GO &JO &LO &Q6 &R4 &S4 &1'4 &XO
SOOO:1
SOOl~O S002~43 SOO3~13 SOO4~lO SOO5~8 SOO6~2 SOO7~60
SOO8~2 SOO9~6 SOlO~14 SOl1~70 S012~50 SOI8~O S025~5 S026:0
S038~O S041~O S045~O S046~O S047~4 S048~O
S050:255 S051~252
S056~17 S057~19 S058~3 S059~O S060~O S06l~1 S062~15 S063~0
8064=0 S068~255 S069~O S090~O S092~O
S093~8 S094~1
S100~O
SlO4~O
SlO5~1
S111:50
S112~1
Sl1>126
S114~O S115~O
S151:5
S155~O
S180:0 S181:0
S183~25 S190~1 S19l~7
S253:32
S254~255
S255~255
