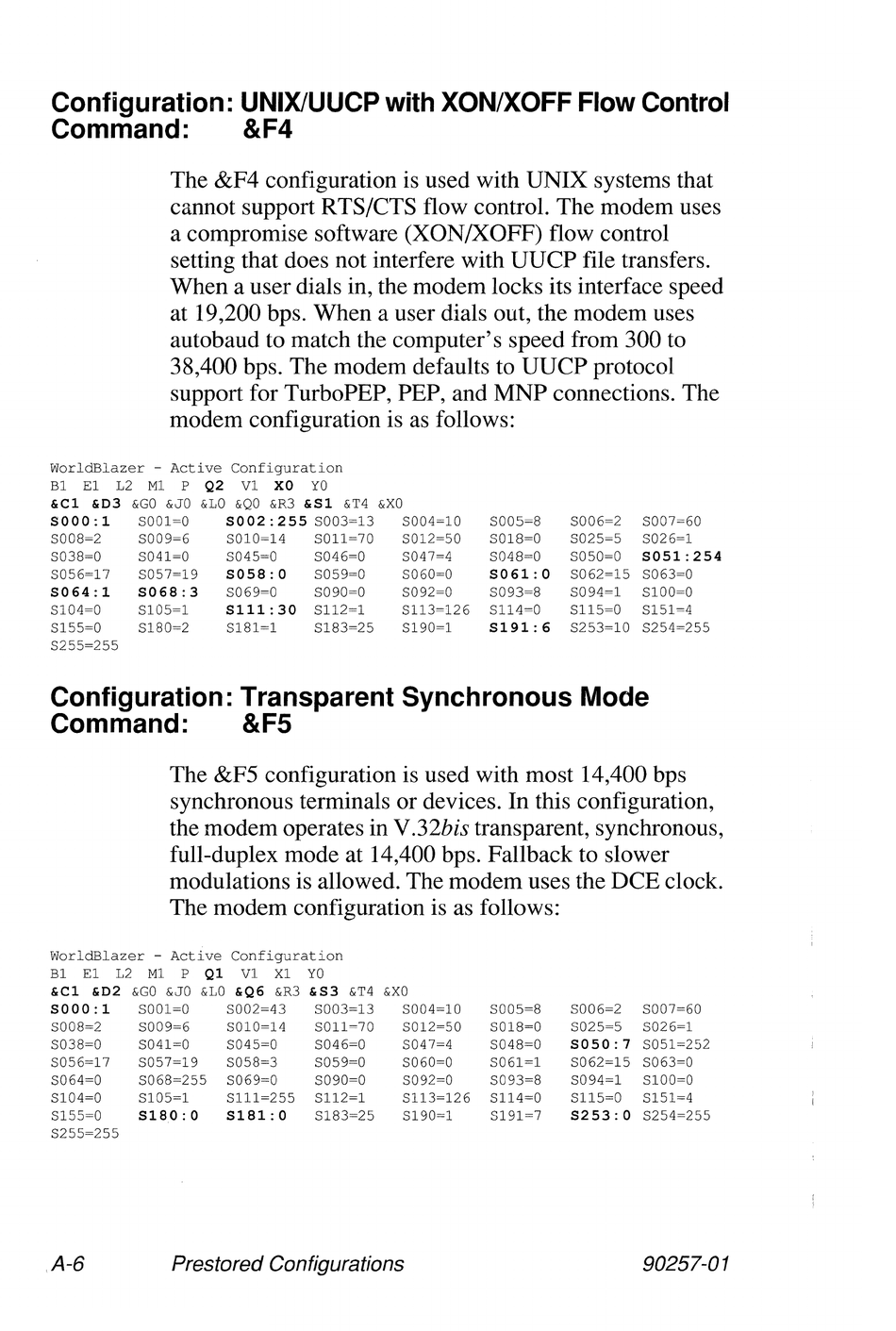

Configuration: UNIXlUUCP with XONIXOFF Flow Control
Command: &F4
The &F4 configuration is used with UNIX systems that
cannot support RTS/CTS flow control. The modem uses
a compromise software
(XONIXOFF)
flow control
setting that does not interfere with UUCP file transfers.
When a user dials in, the modem locks its interface speed
at 19,200 bps. When a user dials out, the modem uses
autobaud to match the computer's speed from 300 to
38,400 bps. The modem defaults to UUCP protocol
support for TurboPEP, PEP, and MNP connections. The
modem configuration is as follows:
WorldBlazer - Active Configuration
B1 E1 L2 M1
P
Q2 V1 XO YO
&C1 &D3 &GO
&JO
&LO &QO &R3 &Sl &T4 &XO
SOOO:l
SOOl~O
S002: 255
SOO3~13 SOO4~10 SOO5~8 SOO6~2 S007~60
S008~2 S009~6 S010~14 SOll~70 S012~50 S018~0 S025~5 S026~1
S038~0
S041~O
S045~0 S046~0 S047~4 S048~0 S050~O
S051:254
S056~17 S057~19
S058:0
S059~0 S060~O
S061:0
S062~15 S063~O
S064:1 S068:3
S069~0 S090~0 S092~O
S09>8
SO
94~1 S100~O
S104~0 S105~1
Slll:30
S1l2~1 S1l3~126 S1l4~0 S115~0 S151~4
S155~0 S180~2 S181~1
S18>25
S190~1
S191:6
S253~10 S254~255
S255~255
Configuration: Transparent Synchronous Mode
Command: &F5
The &F5 configuration is used with most 14,400 bps
synchronous terminals or devices. In this configuration,
the modem operates in V.32bis transparent, synchronous,
full-duplex mode at 14,400 bps. Fallback to slower
modulations is allowed. The modem uses the DCE clock.
The modem configuration is as follows:
WorldBlazer - Active Configuration
B1 E1 L2 M1
P
Q1 V1 Xl YO
&C1 &D2 &GO &JO &LO &Q6 &R3 &S3 &T4 &XO
SOOO:l
SOO1~O SOO2~43 SOO3~13 S004~10 S005~8 SOO6~2 S007~60
S008~2 S009~6 S010~14 SOl1~70 S012~50 S018~0 S025~5 S026~1
S038~0 S041~O S045~O S046~O S047~4 S048~O
S050:7
S051~252
S056~17 S057~19 S058~3 S059~0 S060~0 S061~1 S062~15 S063~O
S064~0 S068~255 S069~O S090~O S092~O S093~8 S094~1 S100~0
S104~0 S105~1 S1l1~255 S112~1 S113~126 S1l4~O S1l5~O S151~4
S155~0
S180:0 S181:0 S18>25
S190~1 S191~7
S253:0
S254~255
S255~255
