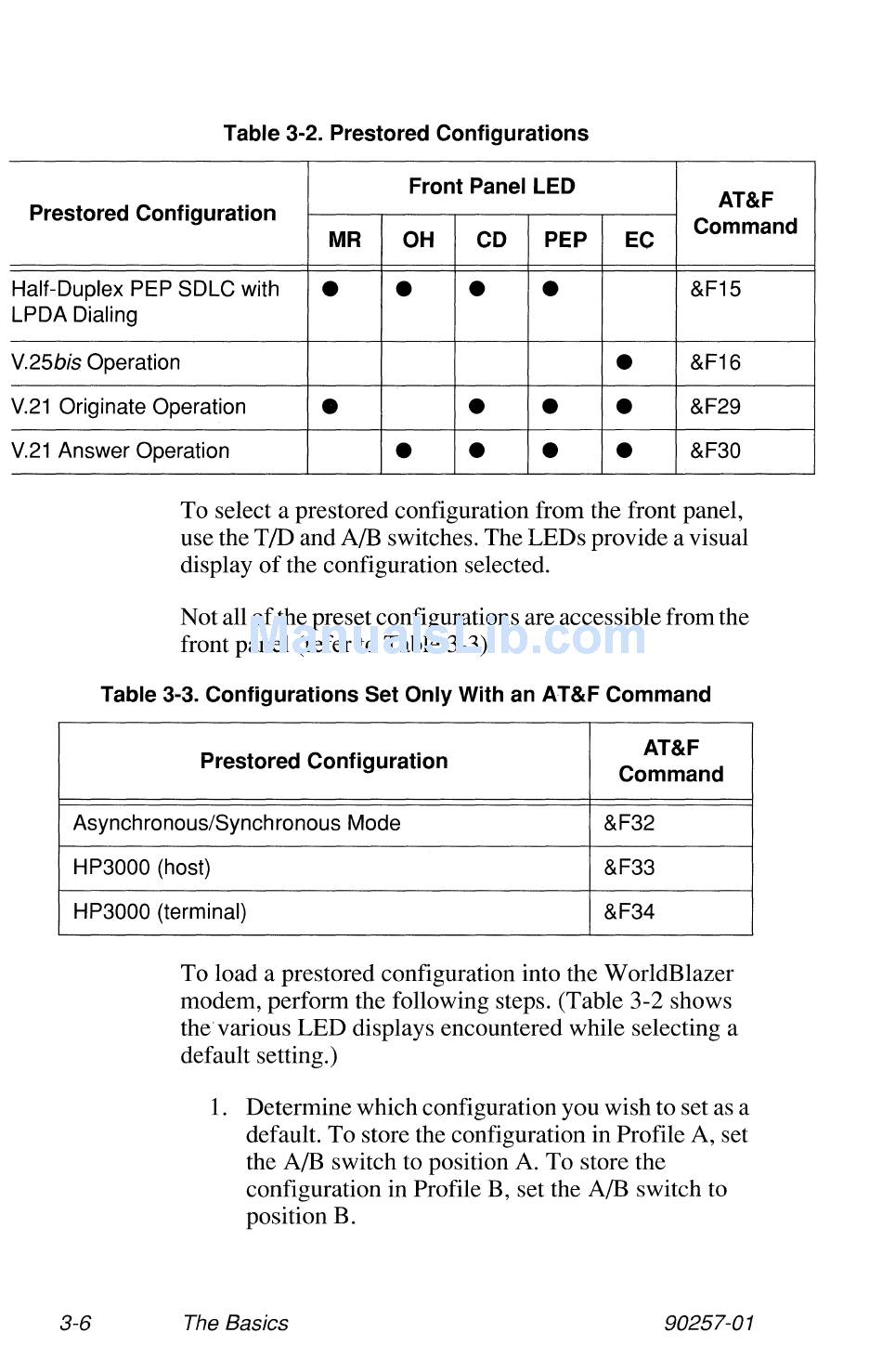

Telebit WorldBlazer User Manual page 25

Table 3-2. Presto red Configurations
Front Panel LED
AT&F
Presto red Configuration
Command
MR
OH CD PEP EC
Half-Duplex PEP SOLe with
• • • •
&F15
LPDA Dialing
V.25bis Operation
•
&F16
V.21 Originate Operation
• • • •
&F29
V.21 Answer Operation
• • • •
&F30
To select a prestored configuration from the front panel,
use the TID and AlB switches. The LEDs provide a visual
display of the configuration selected.
Not all of the preset configurations are accessible from the
front panel (refer to Table 3-3).
Table 3-3. Configurations Set Only With an AT&F Command
Prestored Configuration
AT&F
Command
Asynchronous/Synchronous Mode &F32
HP3000 (host) &F33
HP3000 (terminal) &F34
3-6
To load a prestored configuration into the WorldBlazer
modem, perform the following steps. (Table 3-2 shows
the various LED displays encountered while selecting a
default setting.)
1. Determine which configuration you wish to set as a
default. To store the configuration in Profile A, set
the AlB switch to position A. To store the
configuration in Profile B, set the AlB switch to
position B.
The Basics 90257-01
