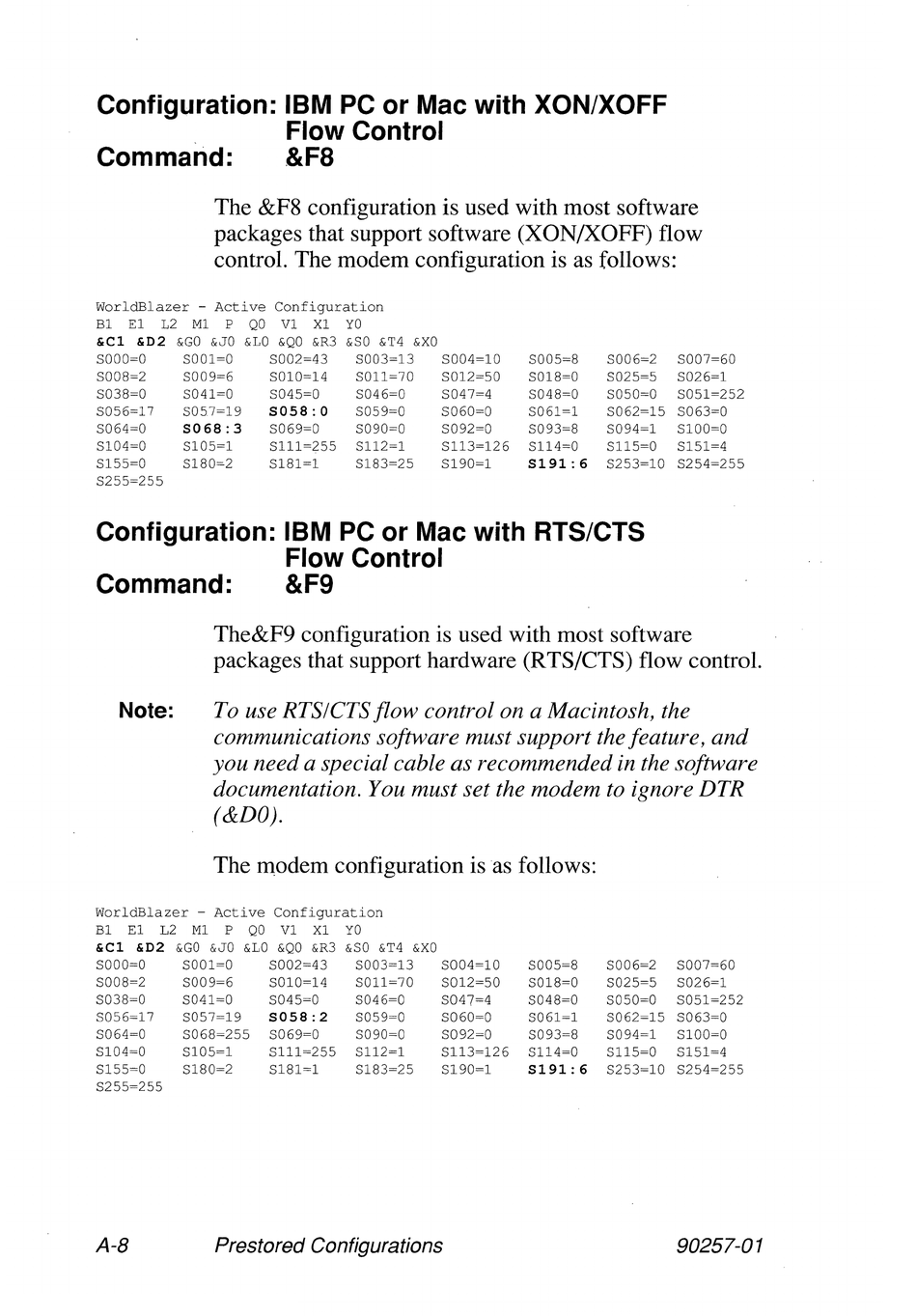

Telebit WorldBlazer User Manual page 45

Configuration: IBM PC or Mac with XON/XOFF
Flow Control
Command: .&F8
The &F8 configuration is used with most software
packages that support software (XON/XOFF) flow
control. The modem configuration is as follows:
WorldBlazer - Active Configuration
B1 E1 L2 M1
P
QO V1 Xl YO
&C1 &D2 &GO &JO &LO &QO &R3 &SO &T4 &XO
SOOO~O SOO1~O S002~43 800>13 S004~10
S005~8 S006~2 S007~60
S008~2 S009~6 S010~14 S011~70 S012~50 S018~0 S025~5 S026~1
S038~0 S041~0 S045~0 S046~0 S047~4 S048~0 S050~0 S051~252
S056~17 S057~19
S058:0
S059~0 S060~0 3061~1 S062~15 S063~0
S064~O
S068:3
S069~0 S090~0 S092~O S093~8 S094~1 S100~0
S104~O S105~1 S111~255 3112~1
311>126
S114~0 S115~0 S151~4
S155~O
S180~2 S181~1 S183~25 S190~1
S191:6
S253~10 S254~255
S255~255
Configuration: IBM PC or Mac with
RTS/CTS
Flow Control
Command: &F9
Note:
The&F9 configuration is used with most software
packages that support hardware (RTS/CTS) flow control.
To use RTS/CTS flow control on a Macintosh, the
communications software must support the feature, and
you need a special cable as recommended in the software
documentation. You must set the modem to ignore DTR
(&DO).
The modem configuration is as follows:
WorldBlazer - Active Configuration
B1 E1 L2 M1
P
QO
V1
Xl YO
&C1 &D2 &GO &JO &LO &QO &R3 &SO &T4 &XO
SOOO~O SOOl~O S002~43 SOO3~13 3004~10 SOO5~8 S006~2 SOO7~60
SOO8~2 S009~6 S010~14 SOl1~70 S012~50 S018~O S025~5
S026~1
S038~O S041~O
S045~0 S046~0 S047~4 S048~O S050~O S051~252
S056~17 S057~19
S058:2
S059~O S060~O S061~1 S062~15 S06>0
S064~0 S068~255 S069~0 S090~0 S092~O S093~8 S094~1 S100~0
S104~O S105~1 Sl11~255 S112~1 Sl13~126 S114~O S115~O
S151~4
S155~0 S180~2 S181~1 S18>25 S190~1
S191:6
S253~10 S254~255
S255~255
A-8
Presto red Configurations
90257-01
