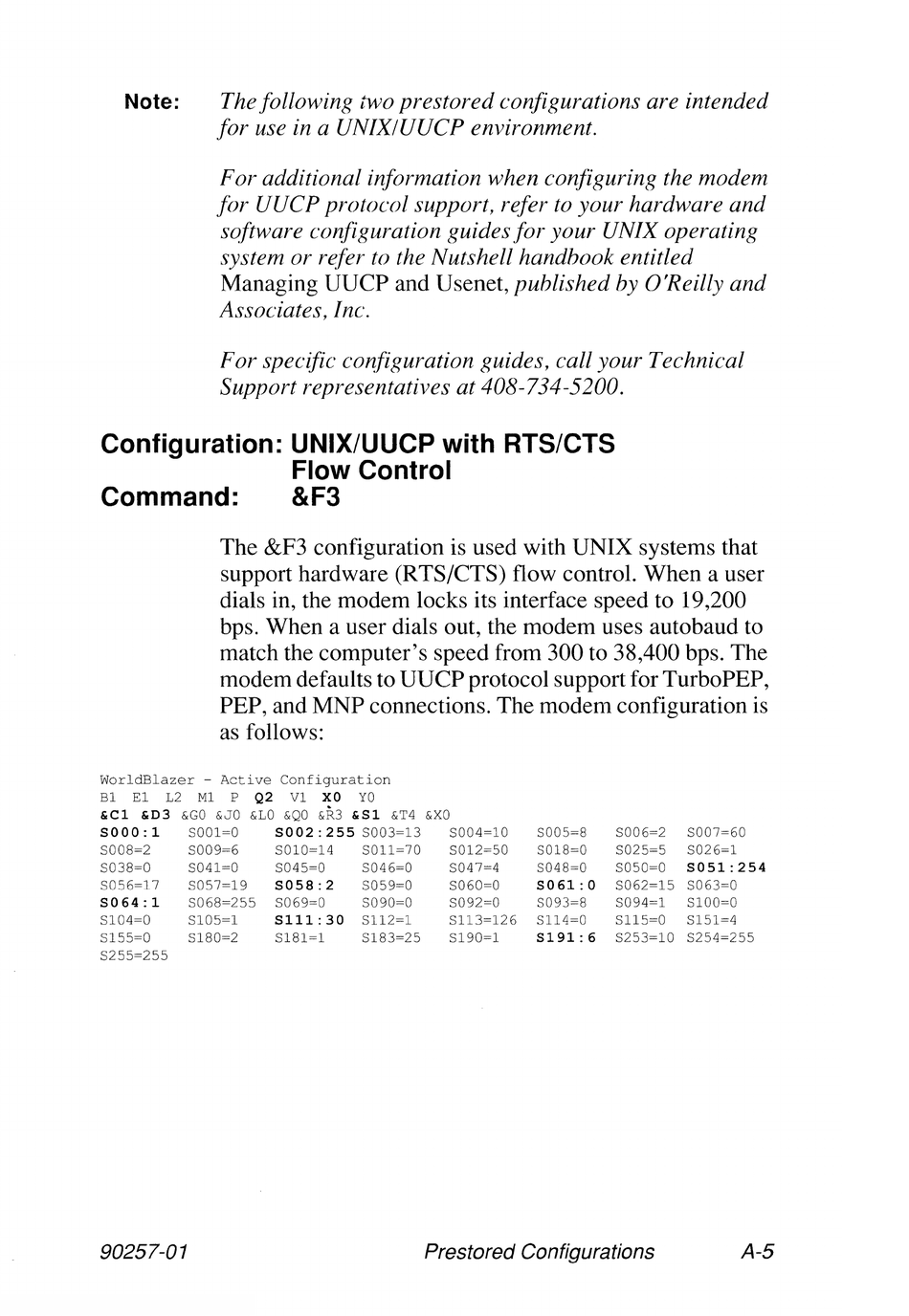

Telebit WorldBlazer User Manual page 42

Note:
The following two prestored configurations are intended
for use in a UNIX/UUCP environment.
For additional information when configuring the modem
for UUCP protocol support, refer to your hardware and
software confif?uration guides for your UNIX operating
system or refer to the Nutshell handbook entitled
Managing UUCP and Usenet, published by O'Reilly and
Associates, Inc.
For specific configuration guides, call your Technical
Support representatives at 408-734-5200.
Configuration: UNIX/UUCP with RTS/CTS
Flow Control
Command: &F3
The &F3 configuration is used with UNIX systems that
support hardware (RTS/CTS) flow control. When a user
dials in, the modem locks its interface speed to 19,200
bps. When a user dials out, the modem uses autobaud to
match the computer's speed from 300 to 38,400 bps. The
modem defaults to UUCP protocol support for TurboPEP,
PEP, and MNP connections. The modem configuration is
as follows:
WorldBlazer
- Active Configuration
B1 E1 L2 Ml
P
Q2 VI XO YO
&C1 &D3 &GO &JO &LO &QO &fU &Sl &T4 &XO
SOOO:l SOOl~O S002: 255 SOO3~13 SOO4~10 SOO5~8 SOO6~2 SOO7~60
SOO8~2 SOO9~6
S010~14 SOl1~70
SOl2.~50 S018~O S025~5 S026~1
S038~O S041~O S045~O S046~O S047~4 S048~O S050~O S051:254
SOS6~17 SOS7~19
S058:2
S059~O S060~O
S061:0
S062~15 S063~O
S064:1
S068~255 S069~O S090~O S092~O S093~8
S094~1
S100~O
S104~O S105~1 Slll:30 S112~1 S113~126 S114~O S115~O S151~4
S155~O S180~2 S181~1 S183~25 S190~1
S191:6
S253~lO S254~255
S255~255
