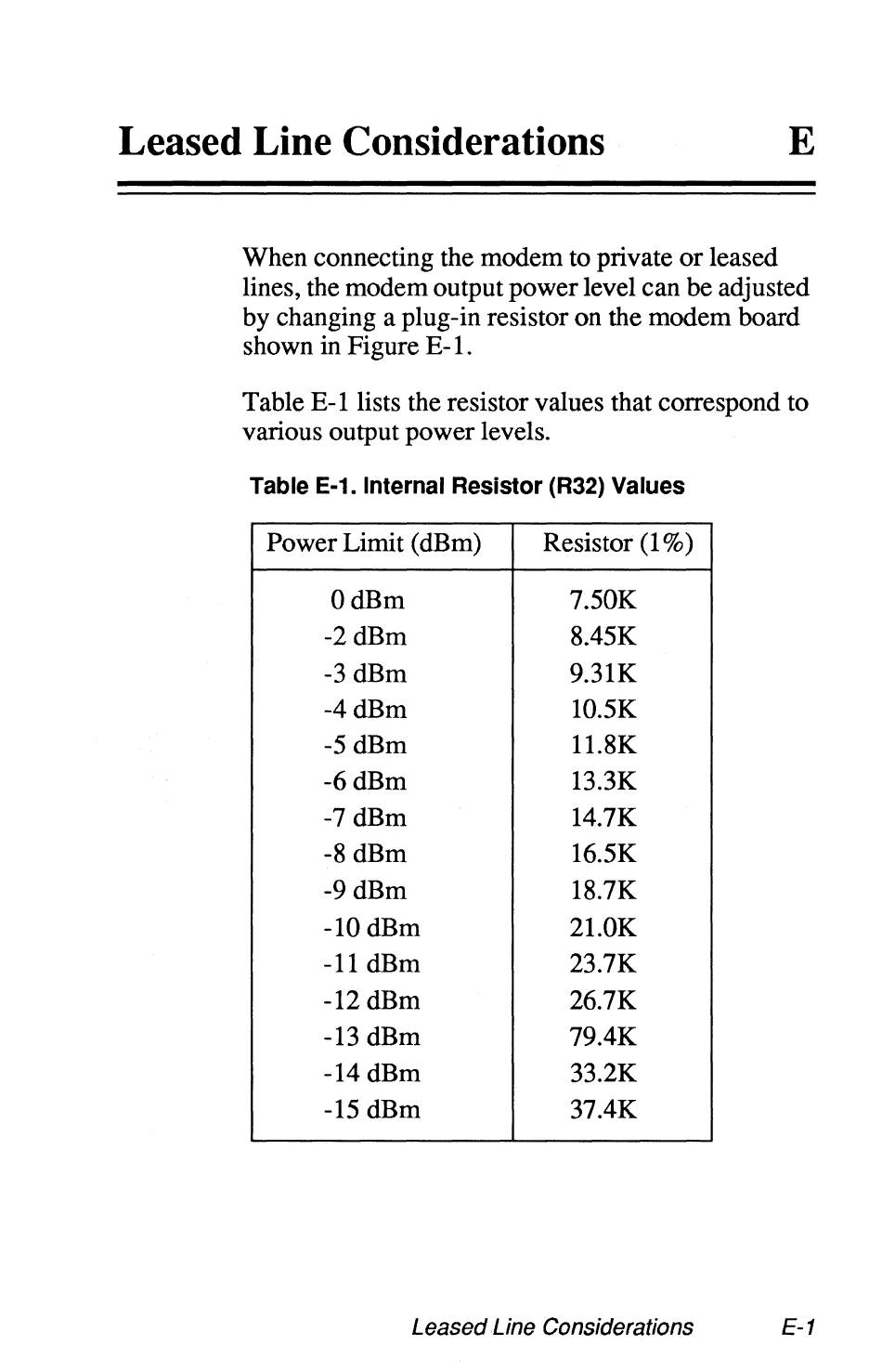

Leased Line Considerations E
When connecting the modem to private or leased
lines, the modem output power level can be adjusted
by changing a plug-in resistor on the modem board
shown in Figure E-1.
Table E-1 lists the resistor values that correspond to
various output power levels.
Table E-1. Internal Resistor (R32) Values
Power Limit (dBm) Resistor (1
% )
OdBm 7.50K
-2dBm 8.45K
-3dBm 9.31K
-4dBm 10.5K
-5dBm ll.8K
-6dBm
13.3K
-7 dBm 14.7K
-8dBm
16.5K
-9dBm 18.7K
-10 dBm 21.0K
-11 dBm 23.7K
-12 dBm
26.7K
-13 dBm 79.4K
-14 dBm 33.2K
-15 dBm 37.4K
Leased Line Considerations E-1
