MANO310 Mini ITX Motherboard
1.2

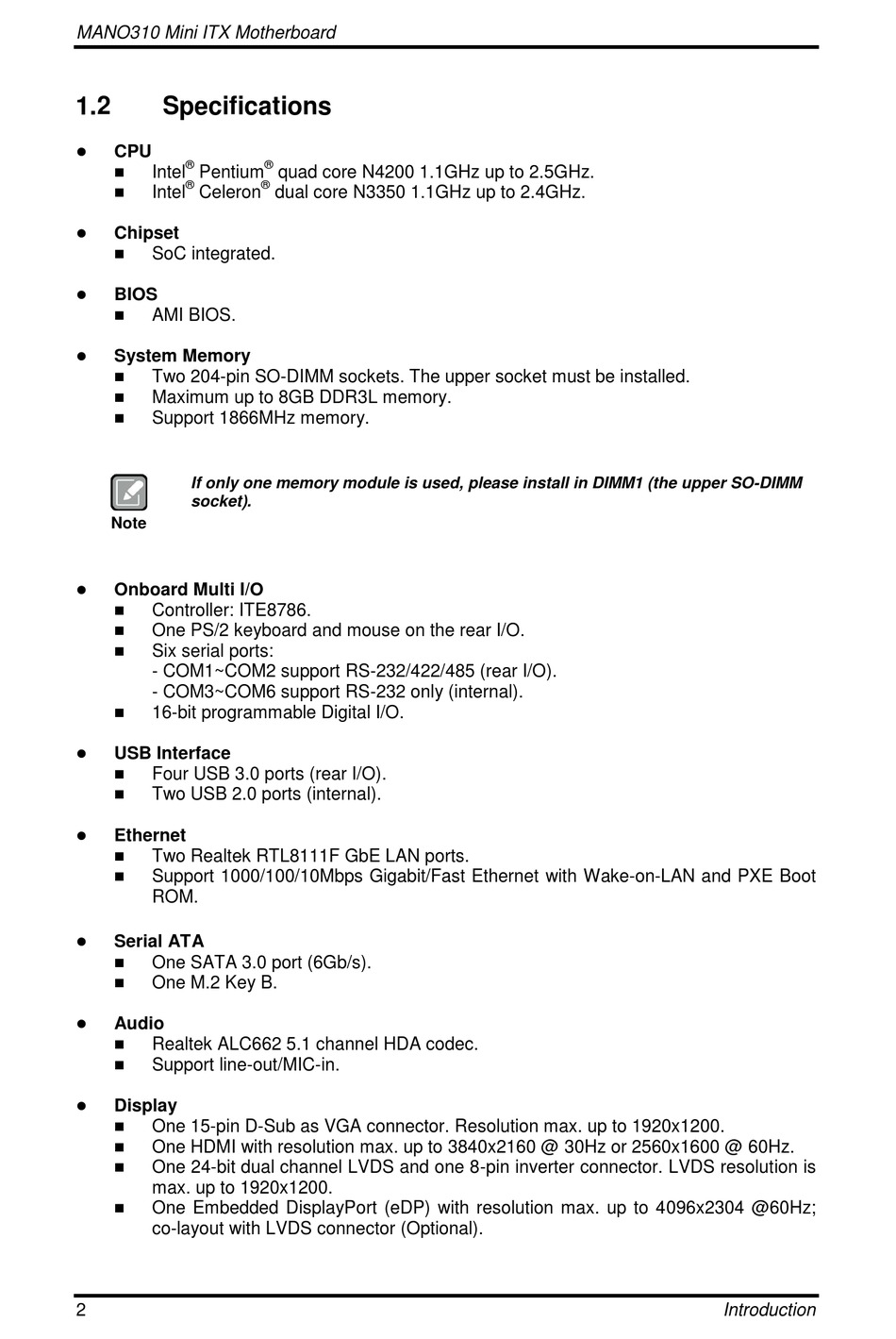

Specifications

 CPU
®
 Intel Pentium
®
 Intel Celeron
 Chipset

SoC integrated.
 BIOS
 AMI BIOS.

System Memory
 Two 204-pin SO-DIMM sockets. The upper socket must be installed.

Maximum up to 8GB DDR3L memory.

Support 1866MHz memory.
If only one memory module is used, please install in DIMM1 (the upper SO-DIMM
socket).
Note

Onboard Multi I/O
 Controller: ITE8786.

One PS/2 keyboard and mouse on the rear I/O.
 Six serial ports:
- COM1~COM2 support RS-232/422/485 (rear I/O).
- COM3~COM6 support RS-232 only (internal).
 16-bit programmable Digital I/O.
 USB Interface

Four USB 3.0 ports (rear I/O).
 Two USB 2.0 ports (internal).
 Ethernet
 Two Realtek RTL8111F GbE LAN ports.
 Support 1000/100/10Mbps Gigabit/Fast Ethernet with Wake-on-LAN and PXE Boot
ROM.
 Serial ATA
 One SATA 3.0 port (6Gb/s).
 One M.2 Key B.
 Audio
 Realtek ALC662 5.1 channel HDA codec.

Support line-out/MIC-in.
 Display
 One 15-pin D-Sub as VGA connector. Resolution max. up to 1920x1200.
 One HDMI with resolution max. up to 3840x2160 @ 30Hz or 2560x1600 @ 60Hz.
 One 24-bit dual channel LVDS and one 8-pin inverter connector. LVDS resolution is
max. up to 1920x1200.

One Embedded DisplayPort (eDP) with resolution max. up to 4096x2304 @60Hz;
co-layout with LVDS connector (Optional).
2
®
quad core N4200 1.1GHz up to 2.5GHz.
®
dual core N3350 1.1GHz up to 2.4GHz.
