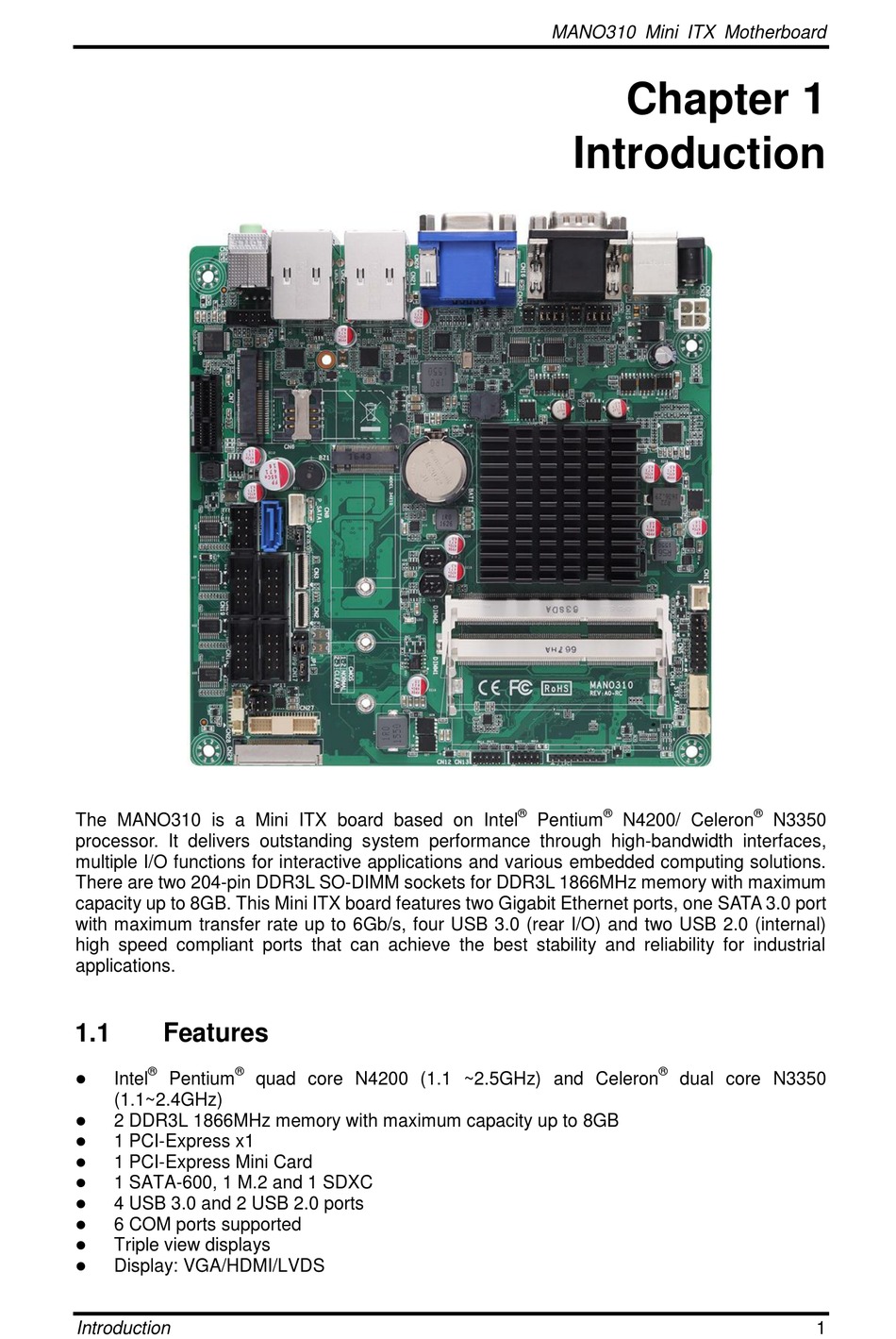

The MANO310 is a Mini ITX board based on Intel
processor. It delivers outstanding system performance through high-bandwidth interfaces,
multiple I/O functions for interactive applications and various embedded computing solutions.
There are two 204-pin DDR3L SO-DIMM sockets for DDR3L 1866MHz memory with maximum
capacity up to 8GB. This Mini ITX board features two Gigabit Ethernet ports, one SATA 3.0 port
with maximum transfer rate up to 6Gb/s, four USB 3.0 (rear I/O) and two USB 2.0 (internal)
high speed compliant ports that can achieve the best stability and reliability for industrial
applications.
1.1

Features

® ®
 Intel Pentium
(1.1~2.4GHz)
 2 DDR3L 1866MHz memory with maximum capacity up to 8GB
 1 PCI-Express x1
 1 PCI-Express Mini Card
 1 SATA-600, 1 M.2 and 1 SDXC
 4 USB 3.0 and 2 USB 2.0 ports
 6 COM ports supported
 Triple view displays
 Display: VGA/HDMI/LVDS
Introduction
quad core N4200 (1.1 ~2.5GHz) and Celeron
MANO310 Mini ITX Motherboard
Chapter 1
Introduction
® ®
Pentium N4200/ Celeron
®
dual core N3350
®
N3350
