MANO310 Mini ITX Motherboard
2.4.23

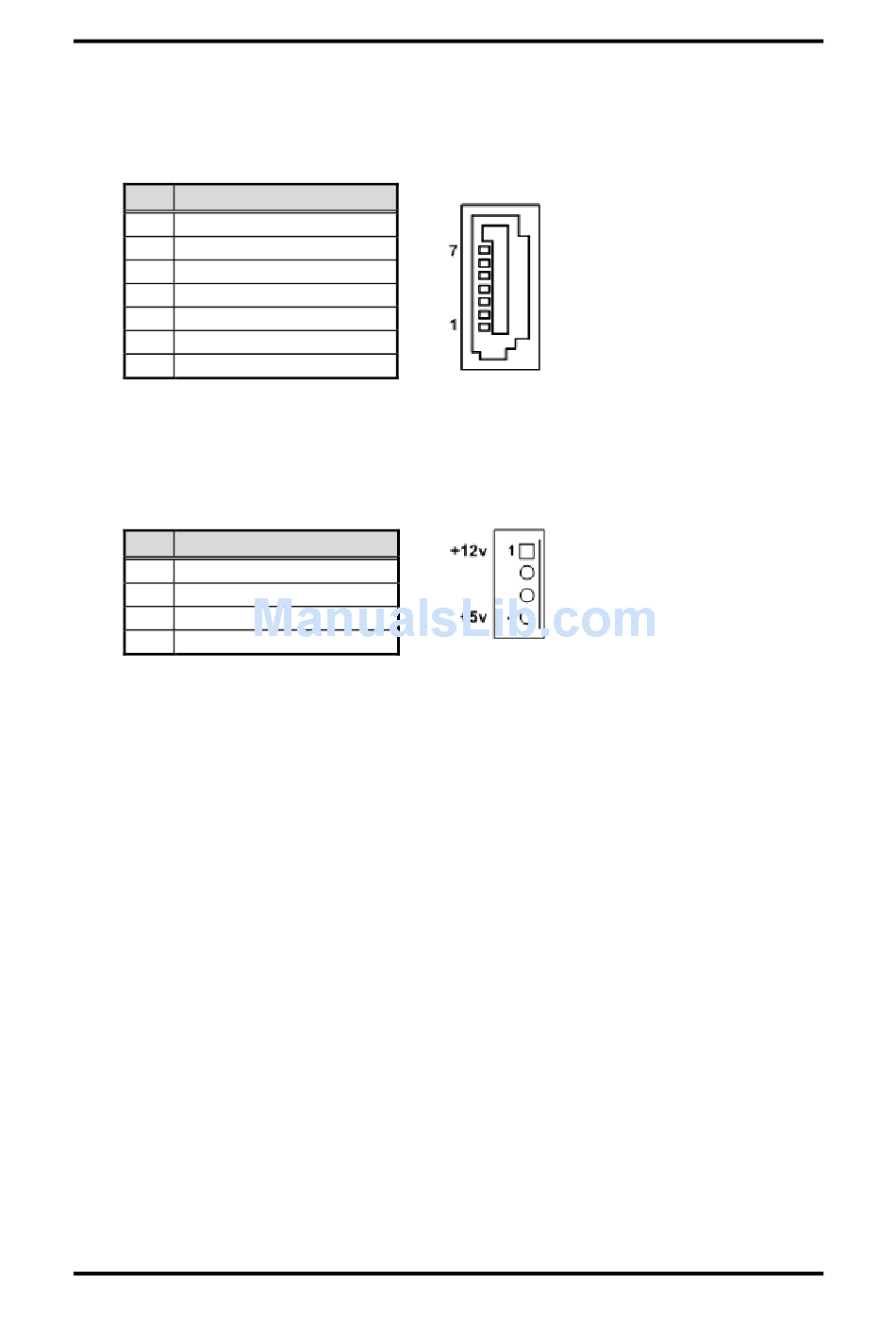

SATA 3.0 Connector (CN32)

This Serial Advanced Technology Attachment (Serial ATA or SATA) connector is for
SATA 3.0 interface allowing up to 6.0Gb/s data transfer rate. It is a computer bus
interface for connecting to devices such as hard disk drive.
Pin Signal
1 GND
2 SATA_TX+
3 SATA_TX-
4 GND
5 SATA_RX-
6 SATA_RX+
7 GND
2.4.24

SATA Power Connector (CN33)

This is a 4-pin (pitch=2.0mm) connector for interfacing to SATA 2.5" and SATA 3.5" HDD
power supply.
Pin Signal
1 +12V
2 GND
3 GND
4 +5V
24 Board and Pin Assignments
