Module programming

Refer to "Keyport location" on page 20 for more information and for troubleshooting purposes.

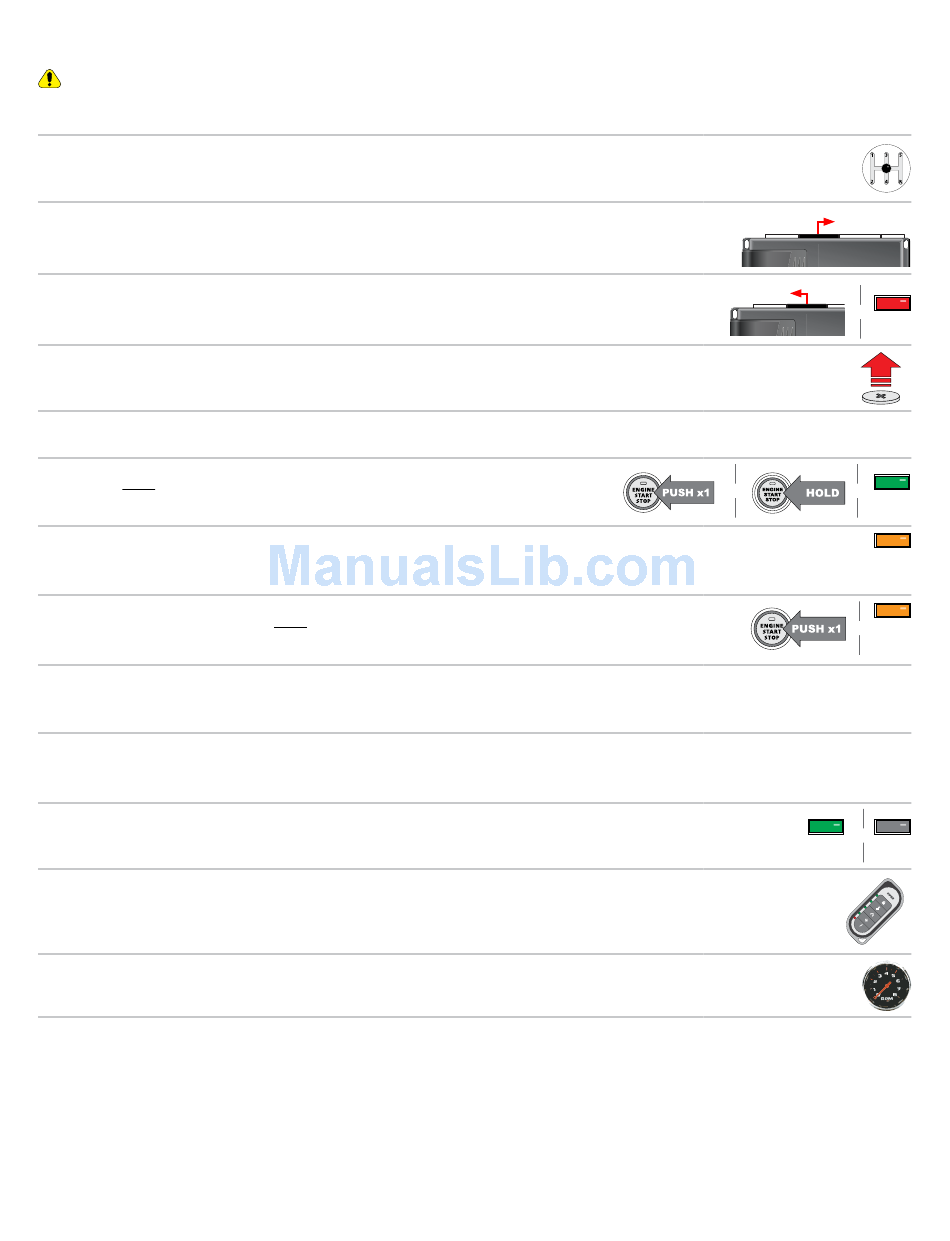

To connect the module:
Please ensure that the vehicle is in a safe location and cannot move forward during
1
programming. For vehicles equipped with a manual transmission, make sure the gearshift
lever is in the neutral position.
2
Connect all the harnesses to the DS4+, EXCEPT the 12-pin main power harness.
3
Connect the 12-pin main power harness, and wait until the LED turns ON solid red.
Remove battery from one key fob and make sure that the other key fob is located more than
4
10 feet away from vehicle.
Put the key fob (with battery removed) in the keyport (Refer to "Keyport location" on page
5
20).
Press once and then press and hold the Push-to-Start button until the ignition
6
turns ON then release. The LED flashes green.
7
Leave ignition ON until the LED starts flashing orange slowly.
Press the Push-to-Start button once to turn the ignition OFF. The LED continues to flash orange
8
slowly.
Remove the module from the vehicle and reconnect it to your computer. The Directechs web site will automatically
9
recognize that you are moving on to the second phase of the programming sequence.
10
Select the method and click on Submit Key2GO Request.
Once the configuration is completed, reconnect the module. The LED turns ON solid green
11
for 3 seconds, then turns OFF.
Pair remotes (if applicable). For information on how to pair a specific remote, please
12
refer to its corresponding owner documentation, which can be found inside the product
packaging of the complete system or on www.directechs.com.*
By default, the tachometer is preprogrammed for the vehicle. For instructions on how to
13
program tach, see page 24.
* Your aftermarket remote may differ from the model shown in the illustrations.
You have successfully completed the module programming sequence.
