Type 3 - Directed DS4+ Installation Manual

Type 3

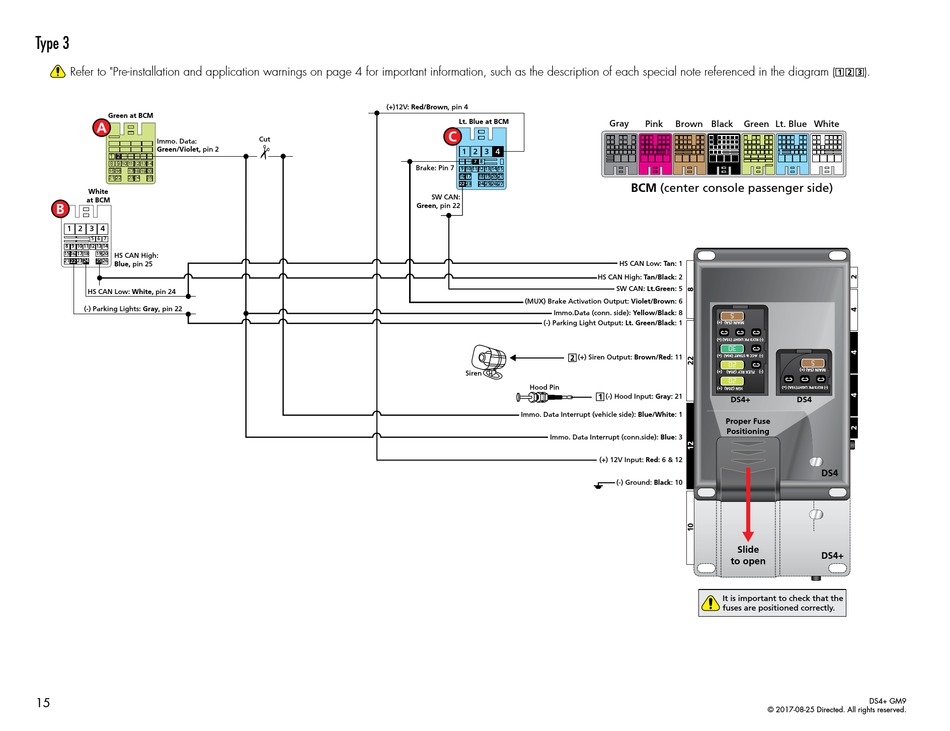

Wiring diagram
Refer to "Pre-installation and application warnings on page 4 for important information, such as the description of each special note referenced in the diagram (
Green at BCM
Immo. Data:
Green/Violet, pin 2
1 2 3 4 5 6 7
8 9 10 11 12 1314
15 16 17 18 1920
21 22 23 24 25
White
at BCM
1 2 3 4
5 6 7
8 9 10 11 12 13 14
15 16 17 18 19 20 HS CAN High:
21 22 23 24 25 26
Blue, pin 25
HS CAN Low: White, pin 24
(-) Parking Lights: Gray, pin 22
15
(+)12V: Red/Brown, pin 4
Cut
Brake: Pin 7
SW CAN:
Green, pin 22
Lt. Blue at BCM
Gray
1 2 3 4
5 6 7
8
9 10 11 12 13 14 15
16 17 18 19 20 21
22 23 24 25 26 27 BCM (center console passenger side)
HS CAN Low: Tan: 1
HS CAN High: Tan/Black: 2
SW CAN: Lt.Green: 5
(MUX) Brake Activation Output: Violet/Brown: 6
Immo.Data (conn. side): Yellow/Black: 8
(-) Parking Light Output: Lt. Green/Black: 1
(+) Siren Output: Brown/Red: 11
Siren
Hood Pin
(-) Hood Input: Gray: 21
Immo. Data Interrupt (vehicle side): Blue/White: 1
Immo. Data Interrupt (conn.side): Blue: 3
(+) 12V Input: Red: 6 & 12
(-) Ground: Black: 10
Pink Brown Black Green Lt. Blue White
DS4+ DS4
Proper Fuse
Positioning
DS4
Slide
DS4+
to open
It is important to check that the
fuses are positioned correctly.
© 2017-08-25 Directed. All rights reserved.
).
DS4+ GM9
