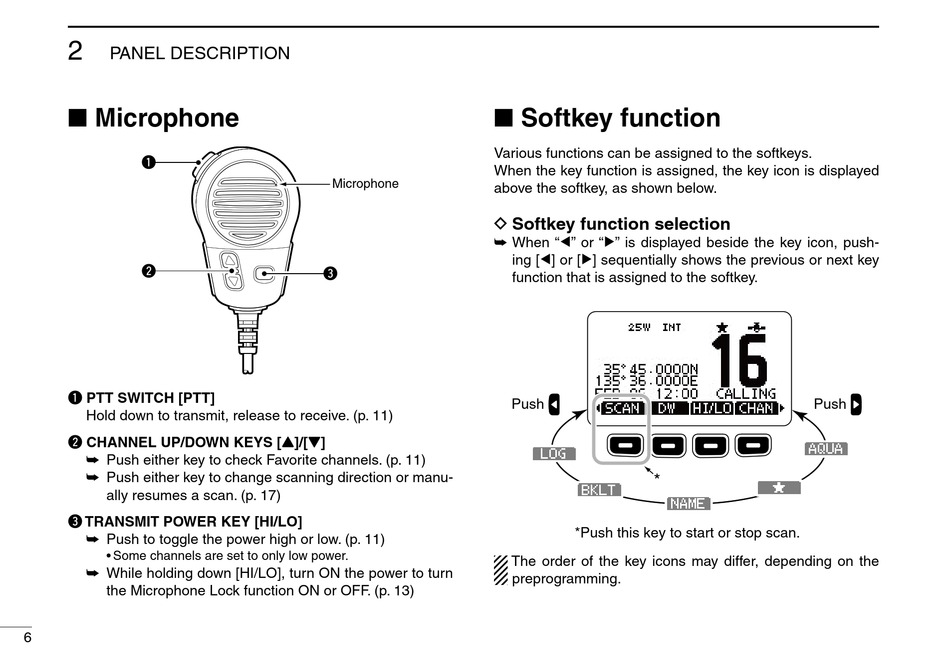

PANEL DESCRIPTION

Microphone

■
q
w
q PTT SWITCH [PTT]
Hold down to transmit, release to receive. (p. 11)
w CHANNEL UP/DOWN KEYS [Y]/[Z]
Push either key to check Favorite channels. (p. 11)
➥
Push either key to change scanning direction or manu-
➥
ally resumes a scan. (p. 17)
e TRANSMIT POWER KEY [HI/LO]
Push to toggle the power high or low. (p. 11)
➥
• Some channels are set to only low power.
While holding down [HI/LO], turn ON the power to turn
➥
the Microphone Lock function ON or OFF. (p. 13)
6
■
Various functions can be assigned to the softkeys.
When the key function is assigned, the key icon is displayed
Microphone
above the softkey, as shown below.
D
➥
e

Softkey function

Softkey function selection
When " Ω" or "≈" is displayed beside the key icon, push-
ing [Ω] or [≈] sequentially shows the previous or next key
function that is assigned to the softkey.
Push
*
*Push this key to start or stop scan.
The order of the key icons may differ, depending on the
preprogramming.
Push
