9
CONNECTIONS AND MAINTENANCE

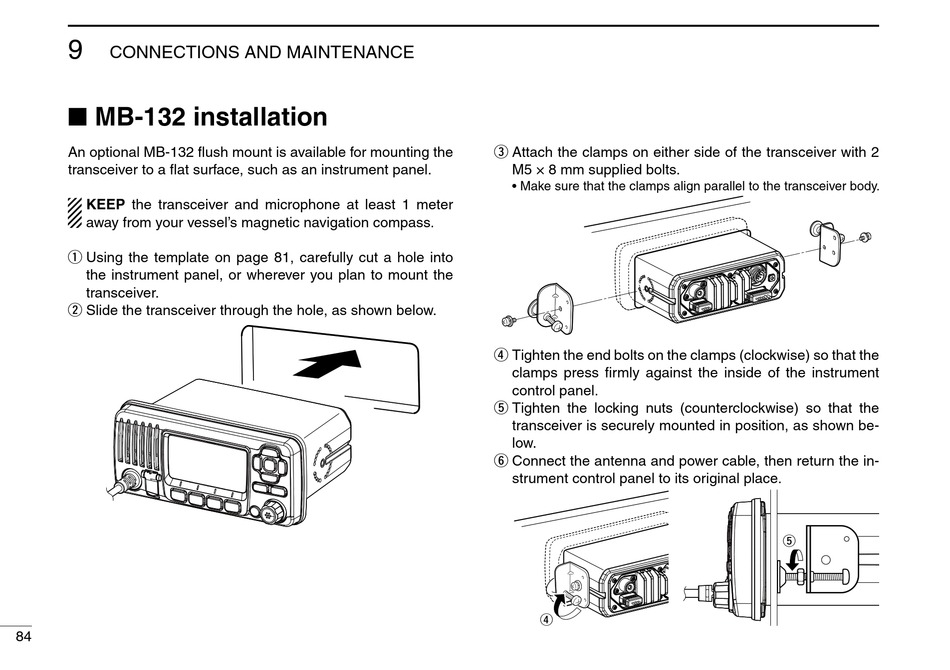

MB-132 installation
■
An optional MB-132 flush mount is available for mounting the
transceiver to a flat surface, such as an instrument panel.
KEEP the transceiver and microphone at least 1 meter
away from your vessel's magnetic navigation compass.
Using the template on page 81, carefully cut a hole into
q
the instrument panel, or wherever you plan to mount the
transceiver.
Slide the transceiver through the hole, as shown below.
w
84
Attach the clamps on either side of the transceiver with 2
e
M5 × 8 mm supplied bolts.
• Make sure that the clamps align parallel to the transceiver body.
Tighten the end bolts on the clamps (clockwise) so that the
r
clamps press firmly against the inside of the instrument
control panel.
Tighten the locking nuts (counterclockwise) so that the
t
transceiver is securely mounted in position, as shown be-
low.
Connect the antenna and power cable, then return the in-
y
strument control panel to its original place.
r
t
