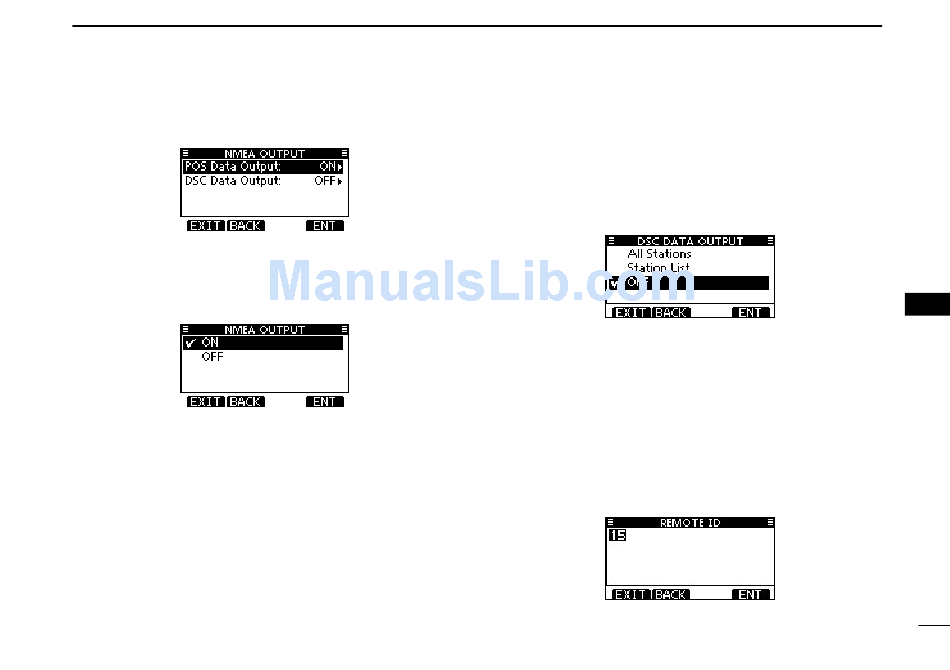

NMEA Output

D
Select the option for the Data Output function.
• POS data output
When receiving a position data, this function makes the trans-
ceiver send the position data from its NMEA Output port to a
connected device.
• DSC data output
When receiving a DSC call, this function makes the trans-
ceiver send the DSC data from its NMEA Output port to a
connected device.
(Default: ON)
All Stations
Station List
OFF
Remote ID
D
Set a Remote ID number to between 1 and 69.
The Remote ID is included in the sentence of the Icom origi-
nal NMEA format.
MENU SCREEN OPERATION
: Outputs the call from any vessel from the
NMEA Output port.
: Outputs the call from any vessels listed on
the Individual ID screen.
: Does not output any call to the external
equipment.
8
1
2
(Default: OFF)
3
4
5
6
7
8
9
10
11
12
13
(Default: 15)
14
15
16
79
