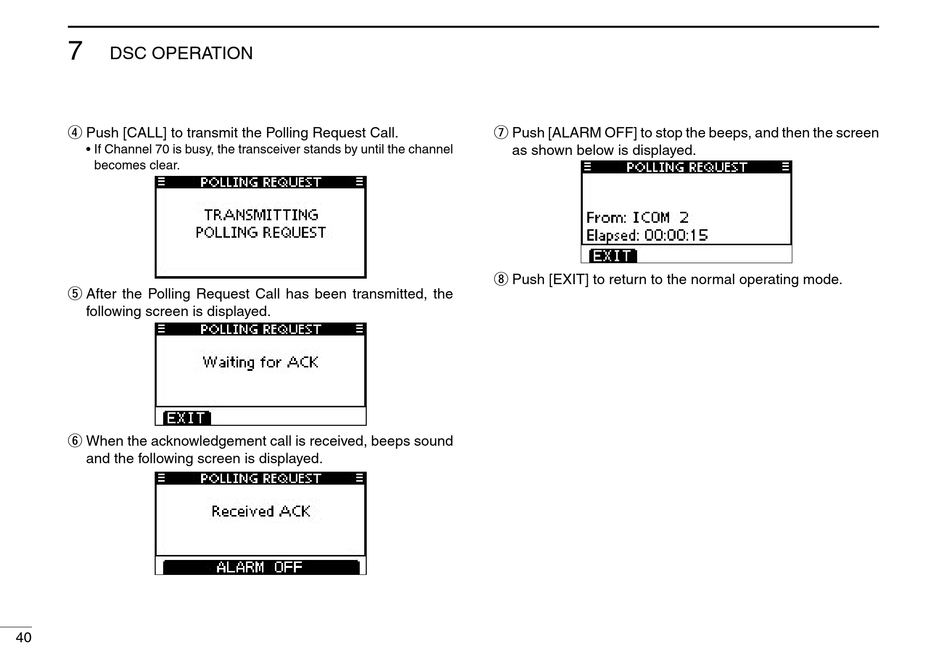

Icom iM323 Instruction Manual page 50

7
DSC OPERATION
Push [CALL] to transmit the Polling Request Call.
r
• If Channel 70 is busy, the transceiver stands by until the channel
becomes clear.
After the Polling Request Call has been transmitted, the
t
following screen is displayed.
When the acknowledgement call is received, beeps sound
y
and the following screen is displayed.
40
Push [ALARM OFF] to stop the beeps, and then the screen
u
as shown below is displayed.
Push [EXIT] to return to the normal operating mode.
i
