Page 1 E7L Drive/Bypass Technical Manual Model: E7L Document Number: TM.E7L.01...
Page 2 Quick Reference for Bypass Parameters Parameter Factory User Parameter Factory User Parameter Factory User Parameter Factory User Number Setting Setting Number Setting Setting Number Setting Setting Number Setting Setting A1-00 b5-04 L1-05 E1-05 208V, 230V or 460V A1-01 b5-06 L2-01 kVA Dep.
Page 3: Warnings And Cautions
• YASKAWA is not responsible for any modification of the product made by the user; doing so will void the warranty. This product must not be modified. Verify that the rated voltage of the Drive and Bypass unit matches the voltage of the incoming power supply before applying •...
Page 4 WARNING Some drawings in this manual may be shown with protective covers or shields removed, to describe details. These must be • replaced before operation. Observe electrostatic discharge procedures when handling circuit cards to prevent ESD damage. • • The equipment may start unexpectedly upon application of power. Clear all personnel from the Drive, motor, and machine area before applying power.
Page 5: Introduction
E7L_ _ _ _. This manual is subject to change as product improvements occur. The latest version of the manual can be obtained from the Yaskawa website www.drives.com . The date shown on the rear cover is changed when revisions are made. The latest version of Drive software is also shown.
Page 6 This manual may describe trademarked equipment, which is the property of other companies. These trademarks are the property of the registered owner companies and may include the following: APOGEE FLN, trademark of Siemens Building Technologies, Inc. ® Metasys , trademark of Johnson Controls Inc. ®...
Page 7 Resources Available Table of Resources Manuals, Installation Guides, and CD’s Document Number Description TM.E7.01 E7 Drive User Manual TM.E7B.01 E7 Drive/Bypass Tech Manual TM.E7.02 E7 Drive Programming Manual TM.E7.21 E7 APOGEE™ FLN Technical Manual TM.E7.22 E7 Metasys N2 Technical Manual ®...
Page 8 Notes: Introduction vi...
Page 9: Table Of Contents
Table of Contents Quick Reference Parameter List ............Inside front cover Warnings and Cautions ....................i Introduction........................iii Chapter 1 - Physical Installation ................1-1 Bypass Model Number and Enclosure Style .............. 2 Enclosure Data ......................3 Confirmations upon Delivery ..................6 Bypass Product Options ..................... 8 Bypass Component Descriptions ................
Page 10 Chapter 6 - Diagnostics & Troubleshooting ............6-1 E7L Bypass PCB and H/O/A Control Panel Diagnostics ........... 2 Drive Diagnostics ....................... 6 Drive Troubleshooting ....................19 Drive Main Circuit Test Procedure ................25 Drive Date Stamp Information .................. 29 Chapter 7 - Maintenance .................... 7-1 E7L Maintenance .......................
Page 11 Appendix F - Replacement Parts ................F-1 Primary Drive Replacement Parts - 208/230/240VAC ..........2 Primary Drive Replacement Parts - 480VAC ............. 3 Bypass Replacement Parts..................4 Index ........................Index-1 Table of Contents ix...
Page 12 Notes: Table of Contents x...
Page 13 Chapter 1 Physical Installation This chapter describes the checks required upon receiving and the installation process for a Drive and Bypass unit. Bypass Model Number and Enclosure Style ........2 Enclosure Data ................3 Bypass Unit Enclosures ............. 5 Confirmations upon Delivery ............6 Receiving Checks ..............
Page 14: Bypass Model Number And Enclosure Style
The Bypass covers two voltage ranges: 208-240 VAC and 480 VAC. Ratings applicable are from 1/2 to 60 HP. Table 1.1 Bypass Bypass Bypass Base Model Number Continuous Uses Voltage Output Basic Drive *NEMA 12 Current Model-Number NEMA 1 FVFF (Amps) E7LVD002 E7LBD002 CIMR-E7U22P2 E7LVD003 E7LBD003 0.75 CIMR-E7U22P2 E7LVD004 E7LBD004 CIMR-E7U22P2 E7LVD007 E7LBD007 CIMR-E7U22P2 E7LVD010 E7LBD010 10.6...
Page 15: Enclosure Data
Enclosure Data Table 1.2 208V Enclosure Data Drive Bypass Heat Enclosure Dimensions Weight Input Electrical Model 110% Model Loss NEMA 1 & NEMA 12 -FVFF Volts Schematic CIMR- 1 min Number Watts Assembly inches E7U22P21 E7L_D002 0.75 E7U22P21 E7L_D003 E7U22P21 E7L_D004 29.48 19.06...
Page 16 Table 1.3 240V Enclosure Data Drive Bypass Heat Enclosure Dimensions Weight Input Electrical Model 110% Model Loss NEMA 1 & NEMA 12 -FVFF Volts Schematic CIMR- 1 min Number Watts Assembly inches E7U22P21 E7L_A002 0.75 E7U22P21 E7L_A003 E7U22P21 E7L_A004 115 lbs E7U22P21 E7L_A006 29.48...
Page 17: Bypass Unit Enclosures
Table 1.4 480V Enclosure Data Drive Bypass Heat Enclosure Dimensions Weight Input Electrical Model 110% Model Loss NEMA 1 & NEMA 12 -FVFF Volts Schematic CIMR- 1 min Number Watts Assembly inches 42P21 E7L_B001 0.75 42P21 E7L_B001 42P21 E7L_B002 115 lbs 42P21 E7L_B003 29.48...
Page 18: Confirmations Upon Delivery
The Bypass unit is thoroughly tested at the factory. Any damages or shortages evident when the equipment is received must be reported immediately to the commercial carrier that transported the material. Shipping damage is not covered by the Yaskawa warranty. After unpacking and inspecting for damage, verify that internal wire connections have not come loose during shipment by spot checking wire terminations with a screwdriver or the appropriate tool.
Page 19 Drive Nameplate Information A nameplate is also attached to the right side of the Drive inside the Bypass enclosure. The following nameplate is an example for a standard Drive. Drive Enclosure and Drive Model Number Revision Code Input Power Specifications Output Power Specifications Weight Serial Number...
Page 20: Bypass Product Options
Bypass Product Options Option C Motor Circuit Protector (MCP)/Disconnect: Replaces the standard input disconnect switch and provides short circuit protection integral with the Drive and Bypass package. The MCP includes a through the door, padlockable operator mechanism. Without this option, short circuit protection must be provided by others on the input side of the Drive and Bypass unit. Option F Drive Input Fuses: Fuses capable of protecting semiconductor devices, rated at 200 kAIC are connected to the line side of the Drive, between the input disconnect and the Drive, to protect the Drive semiconductors when motor or output conductor short...
Page 21 Option U Enable Embedded Serial Communications: A no cost option. The Drive in a Bypass unit is capable of network communications via one of 3 embedded protocols. Specifying option U will enable the Siemens APOGEE protocol and provide the necessary parameter settings and wiring (jumpers) to be network ready when delivered (Project specific H5-0X parameters are setup by the user).
Page 22: Bypass Component Descriptions
Bypass Component Descriptions Bypass Unit Front Control Panel The external appearance, component names, and terminal arrangement of the Bypass unit is shown in Figures 1.4 through 1.8. Drive Operational Disconnect Status Switch Menu Alpha-Numeric Indicating LED Display LEDs Drive Keypad Operator Indicating LEDs H/O/A Keypad...
Page 23 Input Disconnect Switch Electrically located on the input power side of the Bypass unit, the disconnect provides a through the door padlockable operator mechanism. The Bypass three phase input power connection is made to the input terminals of the disconnect. The door mounted rotary operating mechanism is a convenient means of disconnecting the Bypass unit from line power for equipment maintenance.
Page 24: Internal Bypass Panel
Internal Bypass Panel Control Wiring Line Drive Terminal Strips Connections Drive Digital TB1 through TB5 Keypad Input Disconnect Load Connections Overload Relay PCB A3 Control Power Output Bypass Transformer Contactor Contactor Fig 1.7 Internal Bypass Panel Label Defining Customer Control Circuit Connection TB4, TB5 and Terminal PE Points...
Page 25 Contactors The Bypass is a “2 contactor Bypass” circuit employing IEC rated contactors in an electrically interlocked arrangement to allow mutually exclusive operation in Drive or Bypass modes. To minimize enclosure space requirements, they are mounted in a 2 contactor assembly. The control logic and “soft start”...
Page 26 DIP Switch Selectable Functions: The DIP switches used to select these functions are located on the logic controller Printed Circuit Board (PCB) A2 (See Figure 1.9). The factory default is shown on the wiring diagram in Chapter 2 or Schematic diagram E7L-00. DIP switches S1, S2, S3 and S4 allow the user to configure various project specific functions of the E7L including: •...
Page 27 DIP Switches are “ON” when moved toward the enclosure door. DIP Switch S1 example Fig 1.10 DIP Switches S1 to S4 for Drive/Bypass Operational Configuration Physical Installation 1 - 15...
Page 28: Exterior And Mounting Dimensions
Exterior and Mounting Dimensions Bypass Unit 30 HP and Below, 480 VAC; 15 HP and Below, 208V/240V RECOMMENDED CONDUIT ENTRANCE AREA TOP, BOTTOM AND SIDE TOP VIEW DIMENSIONS IN INCHES (MM), FOR REFERENCE ONLY Fig 1.11 Enclosure 1 for up to 30HP, 480 VAC NEMA 1 and NEMA 12 FVFF Enclosures Physical Installation 1 - 16...
Page 29: Bypass Unit 40 Hp To 60 Hp, 480 Vac; 20 Hp To 30 Hp, 208V/240V
Bypass Unit 40 HP to 60 HP, 480 VAC; 20 HP to 30 HP, 208V/240V RECOMMENDED CONDUIT ENTRANCE AREA TOP, BOTTOM AND SIDE TOP VIEW DIMENSIONS IN INCHES (MM), FOR REFERENCE ONLY Fig 1.12 Enclosure 2, for 40HP to 60HP, 480 VAC NEMA 1 and NEMA 12 FVFF Enclosures Physical Installation 1 - 17...
Page 30: Dimensions And Weights
Dimensions and Weights Table 1.6 Bypass Dimensions and Weights Continuous Wall NEMA 1 and NEMA 12 Rated Nominal Bypass Weight Output Mounting Dimen- Drawing Dimensions inches (mm) Input Current sions Number _ _ _ (lbs) Voltage (Amps) Width Depth H x W Height D002 D003...
Page 31: Checking And Controlling Installation Site
Checking and Controlling Installation Site Install the Bypass unit as described below and maintain the specified operating conditions. Installation Site Location of the Bypass unit is important to achieving proper performance and design operating life. Install the Bypass unit as close as possible to the motor.
Page 32: Controlling The Ambient Temperature
Controlling the Ambient Temperature To enhance the reliability of operation, the Bypass unit should be installed in an environment free from extreme temperature variations. Do not store this Technical Manual or any other documents on the top surface of the Bypass unit, they may cover the heat sink cooling air discharge opening and cause the unit to overheat.
Page 33: Chapter 2 - Electrical Installation
Chapter 2 Electrical Installation This chapter describes wiring and the electrical installation process for a Drive and Bypass unit. Termination Configuration - Power Wiring ........2 Field Wiring, Pressure Wire Connector, Wire Type, Range and Tightnening Torque Specifications ........3 Cable Length between Drive and Motor ........
Page 34: Termination Configuration - Power Wiring
Termination Configuration - Power Wiring The input disconnect switch is located in the upper right hand side of the Bypass unit. The three phase input power connection is made to the input terminals of the disconnect. See Figure 2.1 for a representative example. Input Power Terminals Ground Lug Drive...
Page 35: Field Wiring, Pressure Wire Connector, Wire Type, Range And Tightnening Torque Specifications
Field Wiring, Pressure Wire Connector, Wire Type, Range and Tightnening Torque Specifications CUSTOMER A.C. LINE WIRING EARTH GND. WIRING E7 BYPASS MODEL NO. OPTIONAL MOTOR CIRCUIT PROTECTOR - OPTION C STANDARD INPUT DISCONNECT SWITCH GROUND LUG BASE NUMBER MFG. CURRENT WIRE SIZE TIGHTENING MFG.
Page 36: Cable Length Between Drive And Motor
Cable Length between Drive and Motor The Bypass unit should be installed as close as possible to the motor to minimize the length of load side power cable needed between the Drive and the motor. If the cable between the Drive and the motor is long, the high-frequency leakage current will increase, causing the Drive output current to increase as well.
Page 37: Grounding
Grounding Drive and Motor Ground Wire Landing The Drive ground lug (terminal ) is connected to the enclosure. The enclosure ground lug must be connected to earth ground. See Figure 2.1. The Drive has a second ground lug to accept the motor ground lead. Ground Wiring Precautions Observe the following precautions when connecting the ground wire: 208-240 VAC Drives should have a ground connection with resistance of less than 100 Ω..
Page 38: Wire Routing
Wire Routing The following Figures indicate suggested wire entry and bending areas for representative wall mount enclosures. Motor connection Input Control power circuit wiring Fig 2.5 Typical Wall Mount Enclosure Electrical Installation 2 - 6...
Page 39: E7 Drive Main Circuit Configurations 208-240 Vac
2. Control power is supplied internally from the main circuit DC power supply for all Drives. 3. Consult your Yaskawa representative before using 12-pulse rectification. E7 Drive Main Circuit Configurations 480 VAC Table 2.3 Drive Main Circuit Configurations...
Page 40: Control Wiring
Control Wiring Bypass Field Control Wire Landing The Bypass field control wiring is terminated on the control PCB A2, Terminal blocks TB1 through TB5. The terminal desig- nations are labeled on the enclosure, adjacent to PCB A2 (see Figure 2.6). Route the control wiring as shown in Figure 2.5. Fig 2.6 TB1 Control Terminal Locations, All Models Electrical Installation 2 - 8...
Page 41: Annunciation Contacts
Annunciation Contacts Contacts for customer use are provided and wired to TB1 and TB2 as follows for use as annunciators of Bypass unit operation. All are 5 amp at 120 VAC contacts. Table 2.4 Output Relays - Factory Defaults Function Name (E7L-00) Terminal Block Terminals...
Page 42: Building Automation System Run/Stop Circuit
Building Automation system Run/Stop circuit: A control terminal block position (TB1, terminals 2 and 9) is provided to connect the Normally Open (NO) Run/Stop contact from a BAS or other remote controller for auto mode control. There must be continuity between these terminals in order for the motor to run, in auto mode. Safety Interlock Circuit: A control terminal block position (TB1, terminals 1 and 9) is provided to connect the series circuit of Normally Closed (NC) safety devices such as: freeze up thermostats, smoke/fire sensors, high pressure limits, temperature limits or vibration...
Page 43: Analog Inputs
Analog Inputs The Drive has two analog input terminals for use as auto mode speed command (terminals A1 & A2) and feedback (terminal A2) input. Table 2.7 Drive Analog Input Terminals Terminal Signal Level 0 to 10 VDC 4 to 20 mA or 1 to 10 VDC (programmable via parameter H3-08 and DIP switch S1-2) Control Circuit Analog Input Terminals on PCB A2 All control inputs are landed on TB1 through TB5 on PCB A2.
Page 44 Analog Input (Drive Speed Control Circuit) Wiring Keep this lead length as short as possible (50 m max.) to maintain signal quality. Insulated twisted shielded pair wire (2 con- ductor # 18 ga, Belden 8760 or equivalent) is required. Do not run these wires in the same conduits as other AC power or con- trol wires.
Page 45: Analog Outputs
Analog Outputs Two analog outputs are provided, both can be configured for a signal level of 0 to 10 VDC or 4 to 20 mA. The signal level is controlled by the position of jumpers J2 and J3 (see Figures 1.8 and 1.9 for location) on Control PCB A2 and by the values selected for Drive parameters H4-07 and H4-08.
Page 46: Serial Communications
Serial Communications: Terminals are provided for “full duplex” or “half duplex” connections to the Drive for RS422/RS485 serial communication. For “half duplex” operation via Metasys N2 protocol (enabled with option J), APOGEE FLN protocol (enabled with option U) or Modbus protocol (enabled with option V) field configuration of these terminals is required. When no cost options J, U or V are ordered: •...
Page 47 Terminating Resistor The terminating resistance must be turned ON only if the Drive is at the very end of the Serial Communication chain. Set the terminating resistance by turning ON DIP switch S1-1. Fig 2.9 Terminating Resistor 1. Separate the communication cables from the main circuit cables and control circuit wiring. 2.
Page 48: Remote Transfer To Bypass
Remote Transfer to Bypass Terminal TB1-4 on the Control PCB A2 is a dedicated terminal for “Remote Transfer” to Bypass operation. This function allows a contact closure from a BAS, between terminals TB1-4 and TB1-9, to transfer motor operation from Drive mode to Bypass mode.
Page 49: Dip Switch Programmable Functions Summary
DIP Switch Programmable Functions Summary TABLE 2.13 DIP Switch Functions SETTINGS FACTORY POS. DESCRIPTION SWITCH SETTING SERIAL COMMUNICATIONS TERMINATING RESISTANCE SEE TABLE 5.2 DRIVE ANALOG INPUT 2 (A2) SIGNAL (H3-08="0", FOR 0-10VDC) 4-20MADC 0-10VDC TB3(3) CONNECTED TO DRIVE ANALOG INPUT 2 (A2) TB3(3) CONNECTED TO DRIVE ANALOG INPUT 1 (A1) AUTO TRANSFER TO BYPASS UPON A DRIVE FAULT ACTIVE...
Page 50: Bypass Controller Pcb
Bypass Controller PCB INTERNAL SUPPLY CUSTOMER SUPPLIED 120 VAC LOGIC 120 VAC LOGIC ELECTRONIC BYPASS CONTROL PCB SAFETY INTERLOCKS AUTO MODE RUN/STOP MIN. RATING OF CONTACTS: BAS/DAMPER INTERLOCK 5MA, 120VAC REMOTE TRANSFER SMOKE PURGE 120VAC +/- 15%, MIN. RATING 25MA MIN., SPARE OF CONTACTS: 4MA MAX.
Page 51: Wiring Checks
Table 2.14 Terminal Numbers and Wire Sizes (Same for all Bypass Units) Possible Recommended Tightening Wire Sizes Wire Size Terminal Torque Terminals Wire Type Screws lb.-in. (N•m) TB1-1 to 14 Stranded TB2-1 to 6 Phoenix 4.2 to 5.3 wire: TB3-1 to 4 (0.5 to 0.6) 26 to 16 (0.75)
Page 52: Bypass Control Circuit Terminal Functions
Bypass Control Circuit Terminal Functions The functions of the control circuit terminals are shown in Table 2.15. Table 2.15 Bypass Control Circuit Terminals Type Signal Name Function Signal Level TB1-1 NC Safety Circuit Fault when OPEN TB1-9 TB1-2 Auto Mode run/stop command Run when CLOSED;...
Page 53 Table 2.15 Bypass Control Circuit Terminals (Continued) Type Signal Name Function Signal Level TB4-1 Differential input, Communication input optical isolation TB4-2 For 2-wire RS-485, short TB4-3 to TB4-1 RS-485/ and TB4-4 to TB4-2. TB4-3 Differential input, Communication output optical isolation TB4-4 Signal common Electrical Installation 2 - 21...
Page 54: Wiring Diagram
Wiring Diagram Electrical Installation 2 - 22...
Page 55 Electrical Installation 2 - 23...
Page 56: Electrical Overview
Electrical Overview E7 Drive Control Cat 5 Cable Panel /w RJ 45 connectors Control Drive Board Keypad Ribbon Cable signals Ribbon between cable for drive and LEDs and PCB-A2 switches for H/O/A Membrane control Keypad for Customer H/O/A Control Control Terminal Blocks Electronic...
Page 57 Chapter 3 Control Panel This chapter describes the displays and functions of the Control Panel. Digital Operator and Control Panel Display ........2 Digital Operator and H/O/A Control Panel Keys ......3 Drive Digital Operator/Keypad ........... 4 Control Panel Indicator Lights (LEDs) ........6 Selector Key Indicators...............
Page 58: Digital Operator And Control Panel Display
Digital Operator and Control Panel Display The various items included on the Digital Operator Display and Control Panel are described below. Drive Operational Status Alpha-Numeric LED Digital Display Menu Indicating Drive Digital LEDs Operator/Keypad Drive Keypad Operator RUN & STOP Indicators Status Indicating LEDs Drive/Bypass and H/O/A Control Keypad...
Page 59: Digital Operator And H/O/A Control Panel Keys
Digital Operator and H/O/A Control Panel Keys The names and functions of the Digital Operator and H/O/A Control Panel Keys are described in Table 3.1. Table 3.1 Digital Operator and H/O/A Control Panel Keys Name Function MENU Key Scrolls from one of the five main menus to the next. ESCAPE Key Returns to the display before the DATA/ENTER key was pressed.
Page 60: Drive Digital Operator/Keypad
Drive Digital Operator/Keypad Drive Operational Status Indicators The definition of the Drive operational status indicators are shown in Table 3.2. Table 3.2 Drive Operational Status Indicators Indicator Definition Lit (red) when a forward run command is input. Also lit when the Drive is in “Hand” Mode. Lit (red) when a reverse run command is input.
Page 61 Drive Run Indicator The status of the “RUN” indicator is shown in Table 3.4 when the Drive is either in the “Hand” or “Auto” mode. Table 3.4 RUN Indicator Indicator Status Description On (Red) Drive is running Blinking (Red) Drive is decelerating to a stop Drive is stopped Drive Stop Indicator The status of the “STOP”...
Page 62: Chapter 3 - Control Panel
Control Panel Indicator Lights (LEDs) Control Power Status Indicator Table 3.6 Control Power Indicator Indicator Status Condition 3 Phase Power is applied to the Bypass unit and the control power On (Green) transformer is functioning. 3 Phase Power is disconnected from the Bypass unit or a control power transformer fuse has cleared.
Page 63 Bypass Motor OL Indicator Table 3.9 Motor OL Indicator Indicator Status Description The motor overload (S10 on schematic E7L-00) has tripped OFF de- On (Red) energizing both the Drive and Bypass Circuits. The motor overload (S10) is satisfied. Safeties Open Status Indicator Table 3.10 Safeties Open Indicator Indicator Status Description...
Page 64 Auto Run Status Indicator Table 3.13 Auto Run Indicator Indicator Status Description On (Green) The E7L is in AUTO mode and has received a Run command at TB1-2. The E7L is not in AUTO mode or has not received a Run command when in AUTO mode.
Page 65: Selector Key Indicators
Selector Key Indicators When off these selector key indicators simply mean that the function has not been selected. The table below describes the operation when these functions are selected and the key indicator is lit. Table 3.17 Selector Key Indicators Selector Key LED Color Function When Lit...
Page 66: Abnormal Control Panel Indicators
Abnormal Control Panel Indicators “Auto Transfer” LED (Amber in Auto X-fer to Bypass Mode; “Smoke Purge” LED Amber in Remote X-fer to Bypass Mode) (Amber when Smoke Purge activated) “Drive Test” LED (Amber in “Drive Test” Mode) “HAND” LED “Bypass Select” LED (Amber in Hand Mode) (Amber in Bypass Mode &...
Page 67: Drive Main Menus
Drive Main Menus The Drive’s parameters and monitoring functions are organized into groups called menus that make it easier to read and set parameters. The Drive is equipped with five menus. The five menus and their primary functions are shown in Table 3.18 and are directly available by pressing the MENU key.
Page 68: Main Menu Structure
Main Menu Structure The menu selection display will appear when the MENU key is pressed from a monitor or setting display. Press the MENU key from the menu selection display to switch between the menus. Press the DATA/ENTER key from the menu selection key to monitor data and from a monitor display to access the setting display.
Page 69: Drive - Operation Menu
- DRIVE - Operation Menu This menu is used for setting a speed command or monitoring values such as output frequency and output current. It is also used for displaying the fault history and the fault traces. The Drive may be limited to this menu in order to accept a run command, see parameter b1-08 in Chapter 5 and Table 5.1.
Page 70 U1 Monitor Parameter List keys to scroll through the U1 “Monitor” parameter list. Monitor Parameters U1-01 Frequency Ref U1-02 Output Freq U1-03 Output Current U1-06 Output Voltage U1-07 DC Bus Voltage U1-08 Output kWatts U1-10 Input Term Sts U1-11 Output Term Sts U1-12 Int Ctl Sts 1 U1-13...
Page 71 U2 Fault Trace Parameter List After viewing the “Monitor” parameter list, one may view the “Fault Trace” parameter list. keys to scroll through the U2 “Fault Trace” parameter list. Fault Trace Parameters U2-01 Current Fault U2-02 Last Fault U2-03 Frequency Ref U2-04 Output Freq U2-05...
Page 72: Quick - Quick Setting Menu
- QUICK - Quick Setting Menu This menu is used to set/read a limited set of parameters in the Drive. Follow the key operations below to access the Quick Setting Menu. Example Operations Key operations in quick programming menu are shown in the following figure. Menu Selection Display Monitor Display Setting Display...
Page 73 keys to scroll through the “Quick Setting” parameter list. Parameter Parameter Name Number b1-01 Frequency Reference Selection b1-02 Run command Selection b1-03 Stopping Method Selection b5-01 PI Mode Selection b5-02* Proportional Gain Setting b5-03* Integral Time Setting b5-31* PI Unit Selection C1-01 Acceleration Time 1 C1-02...
Page 74: Adv- Programming Menu
- ADV- Programming Menu This menu is used to set/read every parameter in the Drive. Follow the key operations below to access the Programming Menu. Example Operations Key operations in advanced programming menu are shown in the following figure. Menu Selection Display Function Selection Display Monitor Display Setting Display...
Page 75 , and keys to scroll through the “Programming” parameter group list. For a complete parameter list see Appendix A. Parameter Group Functions A1 Initialization A2 User Parameters Sequence DC Braking Speed Search Delay Timers PI Control Energy Saving Accel/Decel S-Curve Acc/Dec Torque Comp Carrier Freq Preset Reference...
Page 76: Verify - Modified Constants (Parameters) Menu
- VERIFY - Modified Constants (Parameters) Menu Verify menu is used to display any parameters that have been changed from their default settings in a programming menu or by autotuning. “None” will be displayed if no settings have been changed. For the initialization parameters, only A1-00 will be displayed if it has been changed.
Page 77: A.tune - Auto-Tuning Menu
- A.TUNE - Auto-Tuning Menu For E7 Bypass units Auto-Tuning can only be accomplished through the DriveWizard software (Part Number DWST616-C2). A free download from www.drives.com. This menu is used in non-bypass Drives to auto-tune the Drive in order to utilize the bi-directional speed search feature. Fol- low the key operations below to access the Auto-Tuning Menu.
Page 78: Example Of Changing A Parameter
Example of Changing a Parameter Table 3.19 provides an example of how to change parameter “C1-01” (Acceleration Time 1) from 30 sec to 20 sec. Table 3.19 Changing a Parameter in the Programming Menu Step Digital Operator Display Description Number Power supply turned ON.
Page 79 Chapter 4 Start Up and Operation This chapter describes the procedures to prepare for and conduct the E7L Drive and Bypass unit start up. Start Up Introduction ..............2 The Safety Interlock Circuit at Power Up ........2 The BAS Interlock Circuit at Power Up ........3 Bypass Unit Start Up Preparation ..........
Page 80: Start Up Introduction
Yaskawa service representative should complete this start up procedure. Please complete the checklist in this document and maintain it in a secured location. Should you have a need to contact Yaskawa in the future, technical service personnel may request information from this document.
Page 81: The Bas Interlock Circuit At Power Up
The BAS Interlock Circuit at Power Up When a Run command is received in HAND or AUTO mode, the E7L will display a red “Damper/Bas” LED in the “System Status” area of the front control panel. This condition will prevent Drive or Bypass operation. One of the following three items needs to be done prior to start-up: Install a “BAS Interlock Circuit”...
Page 82: Bypass Unit Start Up Preparation
BYPASS UNIT START UP PREPARATION Note: These instructions assume that all jumpers and DIP switches are in the factory default position as defined by schematic diagram E7L-00. 1. Review this Bypass Technical Manual and any option instructions and schematics shipped with the Drive and Bypass unit.
Page 83: Bypass Unit Start Up Procedure
BYPASS UNIT START UP PROCEDURE (Please review “Bypass Start Up Preparation” on page 4-4) The front control panel has a digital alpha/numeric display and keypad, in the upper portion, for Drive operation and program- ming. The row of LEDs above the alpha/numeric display indicate Drive operational status. The REMOTE SEQ and REF LEDs in this row are always lit in most Bypass unit applications of the E7 Drive (See Chapter 3 for an explanation).
Page 84 Adjustment Dial Test Button Reset Button Fig 4.2 Overload Relay Detail To maintain overcurrent, short-circuit, and ground-fault protection, the manufacturer’s instructions for IMPORTANT setting the motor OLR must be followed. 2. Apply power to the Drive and Bypass package. Using a VOM, ensure that all three phases are present and that the input voltage is correct for the system being set up.
Page 85 Table 1 is also used to document parameters that have been factory set to typical values for fan and pump applications. These parameters [b1-07, b1-08, b8-01, L4-05, L5-01, L5-03, o1-02, o2-03 and o3-02] may be changed to meet the needs of the specific application. 4.
Page 86 11. If the circuit breaker option is not present - go to step 12. In preparation for testing the Bypass, observe the trip setting of the Circuit Breaker. The trip point is factory set at the lowest possible setting and must be adjusted for each application. This breaker will trip due to inrush current and load inertia unless it is reset! •...
Page 87 Notes: Start Up and Operation 4 - 9...
Page 88: Bypass Unit Operation Description
Bypass Unit Operation Description (For selector key positions, control inputs and DIP switch selectable functions.) The Bypass has two modes of operation: Bypass and Drive. When in the Bypass mode the connected motor is run directly from the incoming AC line, whereas in Drive mode the motor is run from the Drive output. The DRIVE Select and Bypass Select keys located on the front panel determine the operating mode.
Page 89 Control Panel LEDs Status LEDs Selector Button LEDs Drive Keypad LEDs Drive Bypass Smoke Drive Bypass Drive Auto/Remote Purge Ready Fault Motor O/L Select Select HAND AUTO Test ALARM STOP Flash Flash Flash Flash Flash Flash Flash Flash Flash Flash Flash Flash Flash...
Page 90: Selector Key Functions
For additional influences on the Drive behavior in Drive operating mode, consult Table 5.1 and Table 5.2. These tables explain the settings of Drive parameters required by the Bypass logic (Table 5.1) and those that are also dependent upon the control options present on the unit (Table 5.2).
Page 91 Safety Interlock Circuit A Control terminal block position (TB1-1) is provided to connect the series circuit of Normally Closed (NC) safety devices such as: freeze-up thermostats, smoke/fire sensors, high pressure limits, temperature limits or vibration detectors. Anytime all the safety device contacts are closed, the Drive or Bypass will operate. When any one of these contacts open, the Drive or Bypass will immediately stop operating.
Page 92: Contact Closure Inputs
Contact Closure Inputs Auto Mode Run/Stop Contact Input TB1-3 and TB1-4 are input terminals used for the Run/Stop command when in the AUTO mode. When these input contacts close, the unit will begin running. When the contacts reopen, the unit will cease running.
Page 93 Chapter 5 Programming This Manual contains descriptions of all parameters in the Drive that may be useful in Bypass applications. Parameters are listed in alpha-numerical order. Parameter number and name, along with a detailed description and its settings are described on the following pages.
Page 94: Regarding Chapter 5
Regarding Chapter 5 Standard LED Keypad Display and Optional LCD Keypad Display: This programming chapter has been written to cover both the standard LED keypad display and the optional LCD keypad display. When referring to the keypad display, the complete description of the parameter setting choices are presented for clarity purposes.
Page 95 Only Drive terminals A1, A2, S6, S7 and SN are available for other uses. They have been brought out to terminals on the E7L PCB A2: Drive Terminals Correspondence to E7L Terminals Drive E7L PCB A2 Drive Function E7L PCB A2 Terminal Terminal Selection Parameter...
Page 96: Bypass Unit Basic Programming Parameters
Bypass Unit Basic Programming Parameters The basic Drive programming for a Bypass unit is different from that of a Drive installation without the Bypass option. Several Drive parameters have been programmed at the factory to meet the needs of the Bypass logic circuit. See Table 5.1 below, the highlighted parameters are required by the Bypass logic circuit.
Page 97 Table 5.1 Bypass Parameter Settings (Continued) SETTING OPTIONAL LCD PARAMETER UNITS DESCRIPTION KEYPAD DISPLAY Drive NUMBER For Bypass For Bypass Setting Default L5-01 10.0 Number of Re-start Attempts – Sets the number of Num of Restarts / (0-10) times the Drive will perform an automatic re-start L5-03 Maximum Restart Time After Fault –...
Page 98 Table 5.2 Option Dependent Bypass Parameter Settings HAND Speed Drive Terminal A2 Sig- Parameters Effected by Options Specified and Settings Command nal Level via TB3-3 or AUTO PCB DIP PCB DIP Source TB5-9 Options Switch S1 Switch S4 Specified Run/Stop Speed H1-02 H1-03...
Page 99: Discussion Of Table 5.2 Option-Dependent Bypass Parameter Settings
Discussion of Table 5.2 Option-Dependent Bypass Parameter Settings: Drive Parameter Settings for Various Combinations of Bypass and Options Notes: See Appendix D, Communications, for additional information on serial communication. Hand mode run/stop for Drive and Bypass is always via the front control panel HAND selector key. The HAND/OFF/AUTO selector keys must be in AUTO position if serial communication is to be used to control the Drive.
Page 100 Options - P "Pneumatic Pressure Transducer"; Bypass with pneumatic input for speed control: Hand mode speed command from Keypad/Operator. Auto mode speed command input signal from the pneumatic transducer, or 4-20 mA applied to Terminal TB5-9 (Drive terminal A2). Auto mode run/stop contact closure for Drive and Bypass applied to terminals TB1-2 and TB1-9. Significant Drive Operational Result Parameter Setting...
Page 101 Options - J, U, V or L "Serial Communications"; Bypass with serial communication for run/stop control and speed monitoring: Hand mode speed command from Keypad/Operator. Auto mode speed command input signal, 0-10 VDC applied to Terminal TB3-3 (Drive terminal A2). Auto mode run/stop command for Drive from serial communication.
Page 102: Drive Parameters
Drive Parameters A1 Initialization The initialization group contains parameters associated with initial setup of the Drive. Parameters involving the display language, access levels, initialization and password are located in this group. A1-00 Select Language (Optional LCD keypad only) Setting Description English (factory default) Japanese Deutsch...
Page 103 If A1-01 is configured for Advanced Access (A1-01= “2: Advanced Level”), then all menus and all parameters are shown. If the Access Level Selection is set to Advanced, all parameters should be adjustable unless: 1. The Drive parameters are password protected (A1-04) which will prevent access to A1-00 through A1-03 and all A2 parameters.
Page 104: B1 Sequence
A1-04 Password Entry Setting Range: 0 to 9999 Factory Default: 0 If parameters A1-01 through A1-03 and all of the A2 parameters are locked (unchangeable) they can be unlocked by entering the correct password number into A1-04. Once the correct password number is entered and the specified parameters are unlocked, a 2-Wire or 3-Wire initialization will reset the password to 0000.
Page 105 If you want the Drive to follow the speed command set by the digital operator: Use the HAND mode by pressing the HAND key of the HAND/OFF/AUTO selector. The speed command can then be entered into the U1-01 monitor parameter in the “-DRIVE-”...
Page 106 When the output frequency has dropped below the DC Injection Start Frequency in b2-01 (Default = 0.5HZ) DC current will be injected in the motor at a level determined by b2-02 (50% Default). The DC Injection condition will occur for the time specified by b2-04 (0.0 Default), to establish the end point of the ramp.
Page 107 2:DCInj to Stop: When the Run command is removed, the Drive will Baseblock (turn off its output) for the Minimum Base- block Time (L2-03). Once the Minimum Baseblock Time has expired, the Drive will inject DC current into the motor wind- ings to lock the motor shaft.
Page 108 b1-04 Reverse Operation Setting Description Reverse Enabled Reverse Disabled (factory default) Exchange Phase ExchgPhs, Rev Dsbl For some applications reverse motor rotation is not applicable and may even cause problems (e.g., air handling units, pumps, etc.). Setting parameter b1-04 to 1 or 3 will cause the Drive to ignore any inputs for reverse operation. Setting parameter b1-04 to either 2 or 3 will change the motor shaft rotation when a Forward Run command is given by exchanging the order of the output phasing.
Page 109: B2 Dc Braking
b1-08 Run Command Selection During Programming Setting Description Disabled Enabled (factory default) As a convenience to the user, the Drive will respond to a Run input even when the digital operator is being used to adjust parameters. If it is necessary that external Run commands not be recognized while the Drive is being programmed, set b1-08= “0: Disabled”.
Page 110 b2-02 DC Injection Braking Current Setting Range: 0 to 100% Factory Default: 50% The level of DC Injection Braking Current affects the strength of the magnetic field attempting to lock the motor shaft. Increasing the level of current will increase the amount of heat generated by the motor windings and should only be increased to the level necessary to hold the motor shaft.
Page 111: B3 Speed Search
b3 Speed Search The Speed Search function allows the Drive to determine the speed of a motor shaft that is being driven by rotational inertia. Speed Search will allow the Drive to determine the speed of the already rotating motor and begin to ramp the motor to a set speed without first having to bring it to a complete stop.
Page 112 AC power supply Set frequency Start using reference speed detected Output frequency Output current 10 ms Minimum baseblock time (L2-03) x 0.75 *1 *1 Baseblock time may be reduced by the output frequency immediately before the baseblock. Minimum baseblock time (L2-03) x 0.75*1 the motor waits for the *2 After AC power supply recovery, motor waits for the minimum Speed Search Wait Time (b3-05).
Page 113 Deceleration time set in b3-03 Run command Maximum output Set frequency frequency or reference set frequency Output frequency Speed search current level b3-02 Output current Search Delay Time (b3-05). * Lower limit is set using Speed Search Time (b3-05). Minimum baseblock time (L2-03) Fig 5.10 Speed Search (Current Detection Method) at Startup AC power supply...
Page 114 b3-02 Speed Search Deactivation Current Setting Range: 0 to 200% of Drive rated output current Factory Default: 120% of Drive rated output current When using the current detection method of Speed Search, parameter b3-02 sets the current level that will determine when the search is complete and the rotor and output speeds match.
Page 115: B5 Pi Function
b5 PI Function The capability to accept an analog signal as feedback for a PI (Proportional + Integral) control function is built into the Drive. D1-04 Frequency Reference using multi-step Sleep function command selection b5-21 D1-02 b5-16 b1-01 on/off Delay Frequency reference D1-01 b5-01=0...
Page 116 Table 5.3 PI Control Parameter Settings in E7L Bypass Units SETTING OPTIONAL LCD PARAMETER KEYPAD DISPLAY Bypass & PI Bypass UNITS DESCRIPTION NUMBER For Bypass Setting Control Default b1-01 SEE TABLE Frequency Reference Selection – Selects the Reference Source / Terminals speed command input source b5-01 PI Mode Selection –...
Page 117 Table 5.4 Option Dependent Bypass Parameter Settings with PI Control HAND Speed Drive Terminal A2 Parameters Effected by Options Specified and Command Signal Level via TB3-3 AUTO Settings Source or TB5-9 PCB DIP PCB DIP Options Switch S1 Switch S4 Speed or Specified Run/Stop...
Page 118 Optional LCD Digital Operator and Control Panel Display for PI Control In Table 5.5, the o1-0X parameter listed setup the Drive display to indicate 3 variables for PI control as in Figure 5.14 when the HAND/OFF/AUTO selector is in AUTO . Table 5.5 parameter for optional LCD display setup for PI control.
Page 119 Discussion of Table 5.4 Options Dependent, PI Control Bypass Parameter Settings: Typical Drive Parameter Settings for PI Control with Various Combinations of Bypass and Control Options Notes: For project specific PI control tuning see the PI Control (b5-XX) parameters in this chapter. Tables 5.3 and 5.4 provide the basic configuration for PI Control from a Drive in an E7L Bypass unit.
Page 120 Options - J, U, V or L "Serial Communications"; Bypass with PI Control and serial communication for run/stop control and Setpoint input: Hand mode speed command from Keypad/Operator. Auto mode PI Setpoint input signal from serial communication. Auto mode run/stop command for Drive from serial communication. Auto mode run/stop command for Bypass from serial communication.
Page 121 The analog feedback to the Drive for the PI control is via the Drive A2 terminal. The Drive must be programmed (H3-09= “B: PI Feedback”) to use terminal A2 as feedback for the PI functionality of the Drive. The PI setpoint can be configured to come from one of many different inputs or parameters. The table below describes the options for originating the PI setpoint.
Page 122 The Integral factor of PI functionality is a time-based gain that can be used to eliminate the error (difference between the setpoint and feedback at steady state). The smaller the Integral Time set into b5-03, the more aggressive the Integral factor will be.
Page 123 b5-08 PI Primary Delay Time Constant Setting Range: 0.00 to 10.00 Seconds Factory Default: 0.00 Seconds Acts as a time based filter that lowers the responsiveness of the PI function, but also makes the function more stable when the setpoint varies rapidly or when the feedback is noisy. b5-09 PI Output Level Selection Setting Description...
Page 124 b5-13 PI Feedback Loss Detection Level Setting Range: 0 to 100% Factory Default: 0% b5-14 PI Feedback Loss Detection Time Setting Range: 0.0 to 25.0 Seconds Factory Default: 1.0 Seconds The Drive interprets feedback loss whenever the feedback signal drops below the value of b5-13 and stays below that level for at least the time set into b5-14.
Page 125 b5-17 PI Accel/Decel Time Setting Range: 0.0 to 25.5 Seconds Factory Default: 0.0 Seconds This is a soft start function that is applied to the PI setpoint analog input. Instead of having nearly instantaneous changes in signal levels, there is a programmed ramp applied to level changes. When changing setpoints the error can be limited by gradually ramping the setpoint through the use of parameter b5-17.
Page 126 If the monitors seem more natural in terms of percentage, set b5-20= 1. If the monitors are easier to work with when displaying the equivalent synchronous RPM, set b5-20= [the number of motor poles]. If another engineered unit, such a fpm or cfm, is desired, set b5-20= xxxxx where X X X X X Digit 5 Digit 4 Digit 3 Digit 2 Digit 1 Digits 1 through 4 set the desired number to be displayed at 100% speed.
Page 127 b5-22 PI Snooze Level Setting Range: 0 to 100% Factory Default: 0% b5-23 PI Snooze Delay Time Setting Range: 0 to 3600 Seconds Factory Default: 0 Seconds b5-24 PI Snooze Deactivation Level Setting Range: 0 to 100% Factory Default: 0% The Snooze Function is a variation on the Sleep Function.
Page 128 b5-26 PI Maximum Boost Time Setting Range: 0 to 3600 Seconds Factory Default: 0 Seconds Associated with the Snooze Function. In cases where the temporary PI Setpoint (intended PI setpoint + PI Setpoint Boost) cannot be reached within the PI Maximum Boost Time (b5-26), the Setpoint Boost is interrupted and the Drive output is turned off.
Page 129: B8 Energy Savings
b5-29 PI Square Root Gain Setting Range: 0.00 to 2.00 Factory Default: 1.00 A multiplier applied to the square root of the feedback. b5-30 PI Output Square Root Monitor Selection Setting Description Disabled (factory default) Enabled If the PI Function is regulating the flow of a closed loop system by using a pressure feedback, it may be convenient to view the square root of the PI output using monitor U1-37.
Page 130: C1 Accel/Decel
C1 Accel/Decel C1-01 Acceleration Time 1 C1-02 Deceleration Time 1 C1-03 Acceleration Time 2 C1-04 Deceleration Time 2 Setting Range: 0.0 to 6000.0 Seconds Factory Default: 30.0 Seconds C1-01 (Acceleration Time 1) sets the time to accelerate from zero to maximum speed (E1-04). C1-02 (Deceleration Time 1) sets the time to decelerate from maximum speed to zero.
Page 131: D1 Preset References
d1 Preset References d1-01 Frequency Reference 1 d1-02 Frequency Reference 2 d1-03 Frequency Reference 3 d1-04 Frequency Reference 4 Setting Range: 0.00 to E1-04 Value Factory Default: d1-01 = 10.00 Hz d1-02 = 6.00 Hz d1-03 = 0.00 Hz d1-04 = 0.00 Hz d1-01 and d1-02 are special parameter settings required by the Bypass logic circuit.
Page 132 As shown in Table 5.8, it is possible to use analog inputs in place of Frequency Reference 1 and Frequency Reference 2. If b1-01= “1: Terminals” then the analog input A1 will be used instead of Frequency Reference 1 for the first preset speed. If b1-01= “0: Operator”, then Frequency Reference 1 will be used.
Page 133: D2 Reference (Speed Command) Limits
d2 Reference (Speed Command) Limits d2-01 Frequency Reference Upper Limit Setting Range: 0.0 to 110.0% Factory Default: 100.0% d2-02 Frequency Reference Lower Limit Setting Range: 0.0 to 110.0% Factory Default: 0.0% The use of parameters d2-01 and d2-02 places limitations on the speed command that the Drive will accept. The parameters are set in units of percentage of the maximum frequency (E1-04) and provide limits on any remote speed command input.
Page 134 d3 Jump Frequencies d3-01 Jump Frequency 1 d3-02 Jump Frequency 2 d3-03 Jump Frequency 3 Setting Range: 0.0 to 200.0 Hz Factory Default: 0.0 Hz d3-04 Jump Frequency Width Setting Range: 0.0 to 20.0 Hz Factory Default: 1.0 Hz In order to avoid continuous operation at a speed that causes resonance in driven machinery, the Drive can be programmed with jump frequencies that will not allow continued operation within specific frequency ranges.
Page 135: D4 Sequence
d4 Sequence d4-01 MOP Reference Memory Setting Description Disabled (factory default) Enabled The Drive offers the capacity to change the speed command much the way a Motor Operated Potentiometer (MOP) would. Using programmed digital inputs configured as MOP Increase (H1-0x= 10) and MOP Decrease (H1-0x= 11), the Drive will increase the speed command whenever the MOP Increase input is closed and decrease the speed command whenever the MOP Decrease is closed.
Page 136: E1 V/F Pattern
E1 V/f Pattern E1-01 Input Voltage Setting Setting Range: 155.0V to 255.0V (208V/240V Models) 310.0V to 510.0V (480V Models) Factory Defaults: 208.0V (208V Models) 240.0V (240V Models) 480.0V (480V Models) Set the Input Voltage parameter (E1-01) to the nominal voltage of the connected AC power supply. This parameter adjusts the levels of some protective features of the Drive (i.e.
Page 137 Table 5.9 Preset V/f Patterns Specifications E1-03 V/f Pattern *1 Specifications E1-03 V/f Pattern *1 High Starting Torque 1 50Hz 50Hz High Starting (Hz) (Hz) 0 1.3 2.5 0 1.3 2.5 Torque 2 High 60Hz Saturation Starting Torque 1 60Hz High 50Hz Saturation Starting...
Page 138 E1-05 Maximum Output Voltage Setting Range: 0.0 to 255.0V (208V/240V Models) 0.0 to 510.0V (480V Models) Factory Defaults: 208.0V (208V Models) 230.0V (240V Models) 460.0V (480V Models) E1-06 Base Frequency Setting Range: 0.0 to 200.0 Hz (settings above 120.0 Hz are currently not supported) Factory Default: 60.0 Hz E1-07 Mid Output Frequency A Setting Range:...
Page 139: E2 Motor Setup
To set up a custom V/f pattern, program the points shown in the diagram below using parameters E1-04 through E1-13. Be sure that the following condition is true: E1-09 ≤ E1-07 ≤ E1-06 ≤ E1-11 ≤ E1-04 Max Voltage E1-05 Mid Voltage B E1-12 Base Voltage E1-13 Mid Voltage A E1-08...
Page 140: F6 Com Opt Setup
E2-03 No Load Current Setting Range: Model Dependent (see appendix B) Factory Default: Model Dependent Set E2-03 to the motor no-load current at rated voltage and rated frequency. Consult the motor manufacturer for the proper value if the no load current is not stated on the motor nameplate. F6 Com OPT Setup ®...
Page 141: H1 Digital Inputs
F6-05 Current Scaling via Communication Option PCB Setting Description A Display (factory default) 100%/8192 (Drive Rated Current) A communication option card can read the Drive’s DPRAM to access the current monitor. The format of the current reading in the DPRAM will be determined by parameter F6-05. F6-05= “0: A Display”...
Page 142 The Drive has five multi-function contact digital inputs. By programming parameters H1-01 through H1-05, the user can assign specific functions to each input. Below is a table with a complete list of all of the digital input functions. The programming manual has a more detailed description of each of the functions.
Page 143 The following table details which reference is active based on the status of the Multi-step Ref 1 and Multi-step Ref 2 inputs: Table 5.11 Digital Input Functions Terminal Terminal Terminal Programmed Programmed Programmed as Preset Speed Details as Multi-step as Multi-step Jog Reference Reference 1 Reference 2...
Page 144 Table 5.12 Option/Inv Function Input Status Run and Speed Command Source OPEN From the control circuit and analog input terminals CLOSED From Serial Com port (R+,R-,S+, and S-) (embedded protocols) To switch the command source between the serial communication port and the control circuit terminals be sure to program the following parameters: •...
Page 145 H2 Digital Outputs H2-01 Drive Terminal M1-M2 Function Selection H2-02 Drive Terminal M3-M4 Function Selection Setting Range: 0 to 3B Factory Default: H2-01= “0: During Run 1” H2-02= “3B: Run Src Com/Opt” H2-01 and H2-02 are two of the special parameter settings required by the Bypass logic circuit. See Table 5.1. The Drive has two multi-function outputs.
Page 146: H3 Analog Inputs
H3 Analog Inputs H3-02 Drive Terminal A1 Gain Setting Setting Range: 0.0 to 1000.0% Factory Default: 100.0% The addition of another input signal on terminal A1 to the Drive and Bypass unit, after shipment to the job site, would be the only reason for changing this parameter.
Page 147 Gain =200% 100% Bias = 0% 20mA 12mA Analog Input Level Analog Input Signal Fig 5.25 Output Frequency as Commanded via Analog Input with Increased Gain Setting Adjustment of the bias setting will likewise adjust the speed command that is equivalent to the minimum analog input level (0Vdc or 4mA).
Page 148 H3-08 Drive Terminal A2 Signal Level Setting Description 0 - 10VDC 4 - 20mA (Default) H3-08 is one of the special parameter settings required by the Bypass logic circuit. See Table 5.2. The H3-08 parameter (Drive Terminal A2 Signal Level) allows the programmer to specify the signal that will be applied to the A2 analog input (E7L Terminal TB3-3 or TB5-9).
Page 149 H3-09 Drive Terminal A2 Function Selection H3-09 is one of the special parameter settings required by the Bypass logic circuit. See Table 5.2. Setting Description Frequency Bias Aux Reference PI Feedback Frequency Bias 2 Motor Temperature PI Differential Not Used The Drive A2 analog input (E7L Terminal TB3-3 or TB5-9) can be programmed to perform many different functions.
Page 150 H3-10 Drive Terminal A2 Gain Setting Setting Range: 0.0 to 1000.0% Factory Default: 100.0% H3-11 Drive Terminal A2 Bias Setting Setting Range: -100.0% to +100.0% Factory Default: 0.0% Parameters H3-10 and H3-11 perform the same function for the A2 analog input that parameters H3-02 and H3-03 perform for the A1 analog input.
Page 151 H3-13 Master Frequency Reference Terminal Selection Setting Description Main Fref= A1 (factory default) Main Fref= A2 Parameter H3-13 allows the programmer to select which analog input will serve as the Speed Command input when “Termi- nals” are selected as the Auto Mode Speed source (b1-01= “1: Terminals”), or Terminal is selected as the reference source for the Hand mode (b1-12= “1: Terminals”).
Page 152: L2 Momentary Power Loss Ride-Thru Function
L2 Momentary Power Loss Ride-thru Function When momentary power loss recovery is enabled (L2-01 ≠0), a speed search is executed to catch the potentially spinning motor shaft. This speed search will occur regardless of the setting of b3-01 “Speed Search Selection”. L2-01 Momentary Power Loss Detection Selection Setting Description...
Page 153: L3 Stall Prevention
L3 Stall Prevention L3-01 Stall Prevention Selection During Accel Setting Description Disabled General Purpose (factory default) Intelligent L3-02 Stall Prevention Level During Accel Setting Range: 0 to 200% of Drive rated output current Factory Default: 120% of Drive rated output current The stall prevention during acceleration function adjusts the acceleration time in order to prevent OC fault trips during acceleration.
Page 154 The following figure demonstrates acceleration when L3-01= “1: General Purpose”. a - Set accel time b - Accel time is extended Output Frequency L3-02 Output Current TIME Fig 5.31 Time Chart for Stall Prevention During Acceleration The L3-02 parameter is set as a percentage of the Drive rated output current. If the motor capacity is small compared to the Drive’s capacity, or if the motor stalls during acceleration, lower the set value of L3-02.
Page 155 a - Set decel time b - Decel time is extended Output Frequency DC Bus 380/660/760 Vdc Voltage TIME Fig 5.32 Time Chart for Stall Prevention During Deceleration L3-05 Stall Prevention Selection During Running Setting Description Disabled Decel Time 1 (factory default) Decel Time 2 L3-06 Stall Prevention Level During Running Setting Range:...
Page 156: L4 Speed Command Loss Detection
L4 Speed Command Loss Detection L4-05 Frequency Reference Loss Detection Selection Setting Description Disabled (factory default) Enabled @ % of PrevRef L4-06 Frequency Reference at Loss of Frequency Reference Setting Range: 0.0 to 100.0% of previous speed command Factory Default: 80.0% of previous speed command The Drive can be configured to compensate for the loss of its external speed command.
Page 157: L5 Fault Restart
L5 Fault Restart L5-01 Number of Auto Restart Attempts Setting Range: 0 to 10 Factory Default: 10 L5-02 Auto Restart Operation Selection Setting Description No Flt Relay (factory default) Flt Relay Active L5-03 Maximum Restart Time After Fault Setting Range: 0.5 to 600.0 Seconds Factory Default: 600.0 Seconds All major faults will cause the Drive to stop.
Page 158 The setting of parameter L5-02 determines whether the fault output (MA-MB) will be closed during an auto restart attempt. The setting of L5-02 can be important when interfacing the Drive with other equipment. The following faults will allow the Auto Restart function to initiate: •...
Page 159: L6 Torque Detection
L6 Torque Detection L6-01 Torque Detection Selection 1 Setting Description Disabled (factory default) OL@SpdAgree - Alm OL At Run -Alm OL@SpdAgree - Flt OL At Run - Flt UL@SpdAgree - Alm UL at Run - Alm UL@SpdAgree - Flt UL At Run - Flt L6-02 Torque Detection Level 1 Setting Range: 0 to 300% of Drive rated output current...
Page 160 After selecting the proper detection scheme the Torque Detection Level (L6-02) must be specified. If the current level read by the output current transformers rises above (overtorque) or drops below (undertorque) this level, and remains there for at least the Torque Detection Time (L6-03), then the Torque Detection Function will change the state of any digital output configured for Torque Detection (H2-01/H2-02= “B: Trq Det 1 N.O.”, or “17: Trq Det 1 N.C.”).
Page 161: L8 Hardware Protection
L8 Hardware Protection L8-01 Internal Dynamic Braking Resistor Protection Selection Setting Description Not Provided (factory default) Provided This parameter is not applicable for Drive operation. L8-02 Overheat Pre-Alarm Level Setting Range: 50 to 130 Factory Default: 95 L8-03 Overheat Pre-Alarm Operation Selection Setting Description Ramp to Stop (Decel Time C1-02)
Page 162 L8-11 Heatsink Cooling Fan Operation Delay Time Setting Range: 0 to 300 Seconds Factory Default: 300 Seconds Parameters L8-10 and L8-11 allow the Drive programmer to customize the heatsink cooling fan operation. Parameter L8-10 determines whether the cooling fans are always ON whenever the Drive is powered (L8-10= “1: Fan Always On”) or if the cooling fans are only ON when the Drive is in a Run condition (L8-10= “0: Fan On-Run Mode”).
Page 163: O1 Monitor Configuration
o1 Monitor Configuration o1-01 User Monitor Selection Setting Range: 6 to 53 Factory Default: 6 Setting Description Output Voltage (factory default) DC Bus Voltage Output Power Input Terminal Status Output Terminal Status Drive Operation Status Cumulative Operation Time Software Number Terminal A1 Input Voltage Terminal A2 Input Voltage Motor Secondary Current (I...
Page 164 o1-02 Power-On Monitor Setting Description Frequency Reference (factory default) Output Frequency Output Current User Monitor (set by o1-01) When the Drive is powered up, the display monitor is the “Power-On” monitor. The factory default “Power-On monitor” is Speed Command (U1-01). Pressing the INCREASE key once scrolls the monitors to show the next two sequential monitors, Output Frequency (U1-02), Output Current (U1-03) and User Monitor as selected by o1-01.
Page 165 o1-03 Digital Operator Display Scaling Setting Description Hz (factory default) 2 - 39 RPM (Enter the # of Motor Poles) 40 - 39999 User Display Parameter o1-03 allows the programmer to change the units in which the speed monitors and some speed parameters are displayed. The o1-03 parameter will change the units of the following: •...
Page 166 o1-05 LCD Contrast Adjustment Setting Range: 0 to 5 Factory Default: 3 The contrast setting of the LCD display of the digital operator can be adjusted by the setting of parameter o1-05. The higher the number programmed into o1-05, the darker the background will become. Set o1-05 to the value that makes the LCD the easiest to view at the normal viewing distance and angle.
Page 167: O2 Key Selections
o2 Key Selections o2-03 User Parameter Default Value Setting Description No Change Set Defaults Clear All The Drive gives the option of configuring any and all of the programming parameters and then saving the parameters as “User Initialization Values”. After configuring the Drive, set parameter o2-03= “1: Set Defaults”, to save the parameters to a User Initialization memory location.
Page 168 o2-06 Operation Selection when Digital Operator is Disconnected Setting Description Disabled Enabled (factory default) Leaving o2-06 enabled will cause the Drive to fault, when the digital operator is removed, even if it’s not outputting to the motor. The reset key on the digital operator will need to be pressed after reconnecting the digital operator to reset the fault and continue normal operation.
Page 169 o2-10 Cumulative Cooling Fan Operation Time Setting Setting Range: 0 to 65535 Hours Factory Default: 0 Hours The elapsed time of heatsink cooling fan operation is tracked by the U1-40 monitor. Much like the o2-07 parameter can be used to adjust or reset the Drive operation elapsed timer, parameter o2-10 can be used to adjust the time displayed by the U1-40 monitor in the event of fan replacement.
Page 170: O3 Digital Operator Copy Function
o3 Digital Operator Copy Function o3-01 Copy Function Selection The membrane over the Drive keypad also makes the keypad non-removable on Bypass units. In order to use the keypad copy function on a Bypass unit - order a separate keypad, part number CDR001115 and obtain locally a standard CAT 5 Ethernet cable.
Page 171 • Software Number (e.g. 03011 also known as FLASH ID) Yaskawa offers DriveWizard™ software that can also READ, COPY, and VERIFY Drive parameter values. DriveWizard™ lists all discrepancies between the Drive and a pre-saved parameter file when verifying is performed.
Page 172: T1 Auto-Tuning
T1 Auto-Tuning Auto-Tuning can only be accomplished through the DriveWizard software (Part Number DWST616-C2). Available by download from www.drives.com. T1-02 Motor Rated Power Setting Range: 0.00 to 650.00 kW Factory Default: Model Dependent T1-04 Motor Rated Current Setting Range: Model Dependent Factory Default: Model Dependent Auto tuning is recommended to achieve optimum performance.
Page 173 Chapter 6 Diagnostics & Troubleshooting This chapter describes diagnostics and troubleshooting for the Drive and Bypass. E7L Bypass PCB and H/O/A Control Panel Diagnostics ....2 Introduction ................2 Specifications................2 Set Up for Maintenance Mode ............ 2 Testing ..................3 Drive Diagnostics ................
Page 174: E7L Bypass Pcb And H/O/A Control Panel Diagnostics
E7L Bypass PCB and H/O/A Control Panel Diagnostics Introduction This section describes a quick and systemic approach in troubleshooting of an E7L Bypass panel and PCB A2. The only addi- tional testing device needed will be a DVM to verify the PCB A2 interactions and connections to other devices in the E7L Bypass panel.
Page 175: Testing
Testing Test all the fuses in the panel, including the two on the bypass control PCB A2. CAUTION In maintenance mode, all power or control systems connected to the bypass panel such as motors or controls will be energized for a couple of seconds to allow the wiring to be tested. If this is not desirable, these wires should be disconnected from the panel prior to any maintenance mode testing.
Page 176 Four inputs are excluded from this process, they do not cause any LEDs to blink. They have LEDs on the keypad that monitor the status independently: • Motor-Overload-Relay input at CN109/5 • User-Safety-Interlock input at TB1/1 • Drive-Fault-Relay input at CN102/2 •...
Page 177 The overall layout of PCB A2 is shown in Figure 6.1 for further reference. Customer Connector Connection For cable to Terminals Keypad Customer 120V Customer Circuit Fuse Configuration Switches Connectors to Panel Wiring Harnesses Connector CPLD For cable to Logic Drive Main Processor...
Page 178: Drive Diagnostics
Field Service, Start Up Assistance, Factory Repair, Replacement Parts, and Other Support Contact Drives Technical Support for help with any of these needs. Technical Training Training is conducted at Yaskawa training centers, at customer sites, and via the internet. For information, visit www.drives.com or call 1-800-YASKAWA (927-5292).
Page 179: Fault Detection
Fault Detection When the Drive detects a fault, the fault information is displayed on the digital operator, the fault contact closes, and the motor coasts to stop. (However, a fault with selectable stopping method will operate according to the stopping method selected.) •...
Page 180 Table 6.3 Fault Displays and Processing (Continued) Digital Description Cause Corrective Action Operator Display Perform a factory initialization. CPF04 Noise or spike on the control Cycle power off and on to the CPU Internal A/D Converter Fault Internal A/D Err circuit input terminals.
Page 181 Table 6.3 Fault Displays and Processing (Continued) Digital Description Cause Corrective Action Operator Display Remove power to the Drive. Connect the option board once An option board is not more. correctly connected to the con- CPF23 Perform a factory initialization. Communication Option Card trol board or an option board Option DPRAM Err...
Page 182 Table 6.3 Fault Displays and Processing (Continued) Digital Description Cause Corrective Action Operator Display Ensure the values in L6-02 and Loss of Load Detection 1 L6-03 are appropriate. Motor is underloaded. Drive output current < L6-02 for more than Loss of Load Det 1 Check application/machine the time set in L6-03 status to eliminate fault.
Page 183 Table 6.3 Fault Displays and Processing (Continued) Digital Description Cause Corrective Action Operator Display The load is too large. The Recheck the cycle time and the cycle time is too short at the size of the load as well as the accel/decel time.
Page 184 Table 6.3 Fault Displays and Processing (Continued) Digital Description Cause Corrective Action Operator Display Verify dynamic braking duty cycle. Overhauling load, extended Dynamic Braking Resistor dynamic braking duty cycle, Monitor DC bus voltage. The protection of the dynamic braking DynBrk Resistor defective dynamic braking resistor based on setting of L8-01 resistor.
Page 185: Alarm Detection
Alarm Detection Alarms are Drive protection functions that does not operate the fault contact. The Drive will automatically return to its original status once the cause of the alarm has been removed. During an alarm condition, the Digital Operator display flashes and an alarm output is generated at the multi-function outputs (H2-01 to H2-02) if programmed.
Page 186 Table 6.4 Alarm Displays and Processing (Continued) Digital Description Cause Corrective Action Operator Display Verify Drive is programmed to receive the PI Feedback source signal. Check to ensure the PI Feedback PI Feedback Loss source is installed and working properly. PI Feedback source This fault occurs when PI Feedback Loss (e.g.
Page 187 Table 6.4 Alarm Displays and Processing (Continued) Digital Description Cause Corrective Action Operator Display Check the input circuit and High input voltage at R/L1, reduce the input power to within S/L2 and T/L3. specifications. DC Bus Overvoltage The deceleration time is set too DC Bus Overvolt 208-240VAC: Trip point is ≥...
Page 188: Operator Programming Errors (Ope)
Operator Programming Errors (OPE) An Operator Programming Error (OPE) occurs when an inapplicable parameter is set or an individual parameter setting is inappropriate. The Drive does not operate until the parameter is set correctly. (Alarm output and fault contact do not operate.) If an OPE occurs, change the appropriate parameter by checking the cause shown in Table 6.5.
Page 189: Auto-Tuning Faults
Auto-Tuning Faults Auto-tuning faults are shown below. When the following faults are detected, the fault is displayed on the digital operator and the motor coasts to a stop during operation. The fault contact is not activated. Table 6.6 Auto-Tuning Displays and Processing Digital Operator Display Probable Cause Corrective Action...
Page 190: Digital Operator Copy Function Faults
Digital Operator COPY Function Faults These faults can occur occurred during the operator COPY function. Fault content is displayed on the operator. An error during the COPY function does not activate the fault contact output or alarm output. Table 6.7 Digital Operator COPY Function Faults Function Digital Operator Display Probable Causes...
Page 191: Drive Troubleshooting
Drive Troubleshooting Due to parameter setting errors, faulty wiring, etc., the Drive and motor may not operate as expected when the system is started up. If this occurs, use this section as a reference and apply the appropriate measures. If a fault is displayed on the digital operator, refer to Fault Detection, Table 6.3. If Parameter Cannot Be Set Use the following information if a Drive parameter cannot be set.
Page 192: If The Motor Does Not Operate
If the Motor Does Not Operate Use the following information if the motor does not operate. Ensure the digital operator is securely connected to the Drive. The motor does not operate when the HAND key on the Digital Operator is pressed. The following causes are possible: The Speed Command (Frequency Reference) is too low.
Page 193: The Direction Of The Motor Rotation Is Reversed
The motor stops during acceleration or when a load is connected. The load may be too high. The Drive has a stall prevention function and an automatic torque boost function, but the motor responsiveness limit may be exceeded if acceleration is too rapid or if the load is too great. Lengthen the acceleration time (CI-01) or reduce the load.
Page 194: If The Motor Overheats
If the Motor Overheats Take the following steps if the motor overheats. The load is too high. If the motor load is too high and the motor is used when the effective torque exceeds the motor's rated torque, the motor will overheat.
Page 195: If A Stand Alone Ground Fault Interrupter Operates When The Drive Is Run
If a “Stand Alone” Ground Fault Interrupter Operates When the Drive is Run The Drive performs internal switching, so there is a certain amount of leakage current. This may cause an external ground fault interrupter to operate and cut off the power supply. Whenever possible, use a ground fault interrupter with a high leakage detection level (i.e., a sensitivity current of 200 mA or greater per unit, with an operating time of 0.1 s or more), or one that incorporates high frequency countermeasures (i.e., one designed for use with Drives).
Page 196: If The Motor Rotates Even When Drive Output Is Stopped
If the Motor Rotates Even When Drive Output is Stopped If the motor rotates even when the Drive is stopped, the DC injection braking may be insufficient. If the motor continues operating at low speed, without completely stopping after a stop has been executed, it means that the DC injection braking is not decelerating the motor enough.
Page 197: Drive Main Circuit Test Procedure
Drive Main Circuit Test Procedure Prior to removing any protective cover or wiring any part of the Drive, remove all power sources, including main input power and control circuit power. Wait a minimum of 5 minutes after power removal, before WARNING removing any cover.
Page 198 Table 6.8 Main Circuit Test Procedure (Continued) Procedure Check 11. Place the positive (red) meter lead on terminal ⊕ 1. Place the negative (black) meter lead on terminal R/L1. Expected reading is OL displayed. 12. Place the positive (red) meter lead on terminal ⊕ 1. Input Diodes (D1-D12 or Q1) Place the negative (black) meter lead on terminal S/L2.
Page 199 Table 6.8 Main Circuit Test Procedure (Continued) Procedure Check The output transistors are used to switch the DC bus voltage to allow current to flow to the motor. 1. Set a digital multi-meter to the Diode Check setting. 2 Place the positive (red) meter lead on terminal U/T1. Place the negative (black) meter lead on terminal ⊕...
Page 200 Table 6.8 Main Circuit Test Procedure (Continued) Procedure Check The Heat Sink & Internal Cooling Fans cool the heat sink as well as the output transistor modules of the Drive. 1. Conduct a visual inspection to ensure the fan turns freely. 2.
Page 201: Drive Date Stamp Information
Drive Date Stamp Information This information is used to determine when a Drive was built to see if it is within its warranty period. The date stamp is located on the lower right side of the Drive. Fig 6.2 Date Stamp Location YEA Production Manufacture Date 00.7.22...
Page 202 Notes: Diagnostic & Troubleshooting 6 - 30...
Page 203 Chapter 7 Maintenance This chapter describes basic maintenance and inspection of the Drive and Bypass unit. Please refer to these instructions to ensure that the Drive receives the proper maintenance to maintain overall performance. E7L Maintenance ................2 Periodic Inspection ..............2 Preventive Maintenance ............
Page 204: E7L Maintenance
E7L Maintenance Periodic Inspection Check the following items during periodic maintenance. The motor should not be vibrating or making unusual noises. • • There should be no abnormal heat generation from the Drive and Bypass or motor. • The ambient temperature should be within the Drive and Bypass specification of -10°C to 40°C (14°F to 104°F). The output current value shown in parameter U1-03 should not be higher than the motor rated current for an extended period •...
Page 205: Preventive Maintenance
Preventive Maintenance Table 7.3 Preventive Maintenance Inspection Points Item Check Points Every 3-6 Months Yearly Ambient Temperature Humidity Dust Environment Harmful Gas General Oil Mist Abnormal vibration or noise Equipment Main circuit & control voltage AC Power Supply Loose lugs, screws & wires Hot spots on parts Corrosion Conductors &...
Page 206: Replacing The H/O/A Control Panel
Replacing the H/O/A Control Panel To remove and replace the H/O/A control panel, remove 6 nuts from the Bypass “Operator Panel A3” located on the inside of the enclosure door. H/O/A Control Mounting Nuts, Panel PCB A3 6 places Fig 7.1 Removing PCB A3 Control panel A3 will then lift off.
Page 207: Drive Heatsink Cooling Fan Replacement
Drive Heatsink Cooling Fan Replacement _ _ _ Drive Models CIMR- 20P4 thru 2018 (25 HP@208V/240V) and 40P4 thru 4018 (30 HP@480V) If the Drive is mounted with the heatsink external to the enclosure, as it is in Bypass units, the cooling fan IMPORTANT can only be replaced by removing the Drive from the enclosure.
Page 208 _ _ _ Drive Models CIMR- 2022 thru 2110 (30 HP and above @ 208V/240V) and 4030 thru 4300 (40 HP and above @ 480V) A cooling fan assembly is attached to the top inside the Drive. The cooling fan assembly includes the heat sink cooling fans and the internal cooling fan.
Page 209: Removing And Replacing The Drive In A Bypass Unit
Warranty status determines whom you should contact to obtain a new Drive. For a Bypass unit that is still under warranty, begin by contacting Yaskawa Technical Support: 1-800-YASKAWA (927-5292), press 2 for Inverter and Drive Products, then 5 for technical support. Technical support may also be reached through e-mail at DriveSupport@yaskawa.com.
Page 210 Disconnect the cable from the Drive to the front panel mounted Digital Operator at the Drive end of the cable. If a LonWorks option card is present, leave all the wires connected to the option card, disconnect the option card ground wire at the Drive end and remove the option card from the Drive.
Page 211 Drive Bottom Bracket Fig 7.7 Drive Bottom Mounting Bracket Mounting Ring Bypass Enclosure Back Panel Fig 7.8 Back Panel with Mounting Ring To free the Drive, remove the bolts from the Drive mounting brackets (remove the bottom first). When free, pull the Drive through the front of the Bypass enclosure by guiding the heat sink back through the opening in the back panel.
Page 212 Programming the Replacement Drive Replacement drives come from the factory with standard factory default parameter settings. They are not “Bypass ready” and the parameters in the replacement Drive will need to be modified for Bypass compatibility. Several approaches to this may be available: The digital operator/keypad from the old Drive may contain a copy of the parameter settings for this application.
Page 213: Appendix A Parameters
Appendix A Parameters This appendix lists all the parameter numbers and names, along with a description of each. Also, below the parameter name in bold type is the abbreviated name as it appears on the digital operator display/keypad. Parameter List ................2 Monitor List ...................
Page 214: Parameter List
Parameter List Table A.1 Parameter List Parameter Name Parameter Setting Factory Menu Description LCD Digital Operator Range Setting Location Display Initialization Language selection for digital operator display 0: English 2: Deutsch A1-00 Language Selection 3: Francais 0 to 6 Programming Select Language 4: Italiano 5: Espanol...
Page 215 Table A.1 Parameter List (Continued) Parameter Name Parameter Setting Factory Menu Description LCD Digital Operator Range Setting Location Display User Parameter 7 – A2-07 Programming User Param 7 User Parameter 8 – A2-08 Programming User Param 8 User Parameter 9 –...
Page 216 Table A.1 Parameter List (Continued) Parameter Name Parameter Setting Factory Menu Description LCD Digital Operator Range Setting Location Display Sequence Selects the speed command (frequency reference) input source. 0: Operator - Digital preset speed d1-01 Frequency Reference 1: Terminals - Analog Input Terminal A1 (or Terminal A2 see Quick Setting b1-01 Selection...
Page 217 Table A.1 Parameter List (Continued) Parameter Name Parameter Setting Factory Menu Description LCD Digital Operator Range Setting Location Display Motor Pre-heat current in % of drive rated current. This is used to Motor Pre-Heat Current b2-09 keep the motor warm to prevent condensation and is used in 0 to100 Programming Preheat Current...
Page 218 Table A.1 Parameter List (Continued) Parameter Name Parameter Setting Factory Menu Description LCD Digital Operator Range Setting Location Display PI Primary Delay Time b5-08 Sets the amount of time for a filter on the output of the PI 0.00 to Constant 0.00sec Programming...
Page 219 Table A.1 Parameter List (Continued) Parameter Name Parameter Setting Factory Menu Description LCD Digital Operator Range Setting Location Display PI Feedback Square Root 0: Disabled b5-28 Function Selection 0 or 1 Programming 1: Enabled PI Feedback SqRt PI Square Root Gain b5-29 A multiplier applied to the square root of the feedback.
Page 220 Table A.1 Parameter List (Continued) Parameter Name Parameter Setting Factory Menu Description LCD Digital Operator Range Setting Location Display S-Curve Acc/Dec S-curve is used to further soften the starting ramp. The longer the S-curve time, the softer the starting S-Curve Characteristic at ramp.
Page 221 Table A.1 Parameter List (Continued) Parameter Name Parameter Setting Factory Menu Description LCD Digital Operator Range Setting Location Display Reference Limits Determines maximum speed command, set as a percentage of Frequency Reference Upper parameter E1-04. If speed command is above this value, actual d2-01 Limit 0.0 to 110.0...
Page 222 Table A.1 Parameter List (Continued) Parameter Name Parameter Setting Factory Menu Description LCD Digital Operator Range Setting Location Display V/F Pattern 155 to 255.0 240V Input Voltage Setting (240V) E1-01 Set to the nominal voltage of the incoming line. Quick Setting Input Voltage 310 to 510.0 480V...
Page 223 Table A.1 Parameter List (Continued) Parameter Name Parameter Setting Factory Menu Description LCD Digital Operator Range Setting Location Display Motor Setup Motor Rated Current 10% to E2-01 Set to the motor nameplate full load amps. Quick Setting Motor Rated FLA 200% Dependent E2-03...
Page 224 Table A.1 Parameter List (Continued) Parameter Name Parameter Setting Factory Menu Description LCD Digital Operator Range Setting Location Display Digital Inputs 0: 3-wire control FWD/REV selection for 3-wire sequence 1: Local/Remote Sel Hand/Auto Selection - Closed = Hand, Open = Auto 2: Option/Inv Sel Selects source of speed command and sequence Closed = b1-01 &...
Page 225 Table A.1 Parameter List (Continued) Parameter Name Parameter Setting Factory Menu Description LCD Digital Operator Range Setting Location Display 12: Forward Jog Closed = drive runs forward at speed command entered into parameter d1-17 13: Reverse Jog Closed = drive runs in reverse at speed command entered into parameter d1-17 14: Fault Reset Closed = Resets the drive after the fault and the run...
Page 226 Table A.1 Parameter List (Continued) Parameter Name Parameter Setting Factory Menu Description LCD Digital Operator Range Setting Location Display Digital Inputs 1E: Ref Sample Hold Analog speed command is sampled then held at time of input closure. 20: External fault, Normally Open, Always Detected, Ramp To Stop 21: External fault, Normally Closed, Always Detected, Ramp To Stop...
Page 227 Table A.1 Parameter List (Continued) Parameter Name Parameter Setting Factory Menu Description LCD Digital Operator Range Setting Location Display Digital Outputs 0: During RUN 1 = Closed when a run command is input or the drive is outputting voltage. 1: Zero Speed = Closed when drive output frequency is less than Fmin (E1-09) 2: Fref/Fout Agree 1 = Closed when drive output speed equals the speed command within the...
Page 228 Table A.1 Parameter List (Continued) Parameter Setting Factory Menu Parameter Name Description Range Setting Location LCD Digital Operator Display Analog Inputs H3-02 Terminal A1 Gain Setting Sets the speed command when 10V is input, as a 0.0 to 100.0% Programming Terminal A1 Gain percentage of the maximum output frequency (E1-04).
Page 229 Table A.1 Parameter List (Continued Parameter Setting Factory Menu Parameter Name Description Range Setting Location LCD Digital Operator Display Analog Outputs Selects which monitor will be output on terminals FM and AC. 1: Frequency Ref (100% = max. output frequency) 2: Output Freq (100% = max.
Page 230 Table A.1 Parameter List (Continued Parameter Setting Factory Menu Parameter Name Description Range Setting Location LCD Digital Operator Display Analog Outputs H4-06 Terminal AM Bias Setting Sets terminal AM output voltage (in percent of 10V) –110.0 to 0.0% Programming Terminal AM Bias when selected monitor is at 0% output.
Page 231 Table A.1 Parameter List (Continued Parameter Setting Factory Menu Parameter Name Description Range Setting Location LCD Digital Operator Display Motor Overload Enables or disables the motor thermal overload protection. Motor Overload Protection 0: Disabled L1-01 Selection 0 to 1 Programming 1: Std Fan Cooled (Enabled) MOL Fault Select 2: Std Blower Cooled...
Page 232 Table A.1 Parameter List (Continued Parameter Setting Factory Menu Parameter Name Description Range Setting Location LCD Digital Operator Display Stall Prevention 0: Disabled (Motor accelerates at active acceleration, C1-01 or C1-03. The motor may stall if load is too heavy or accel time is too short). 1: General Purpose (When output current exceeds L3-02 Stall Prevention Selection During level, acceleration stops.
Page 233 Table A.1 Parameter List (Continued Parameter Setting Factory Menu Parameter Name Description Range Setting Location LCD Digital Operator Display Ref Detection Speed Agreement Detection Level L4-01 0.0 to 200.0 0.0Hz Programming L4-01 and L4-02 are used in conjunction with the Spd Agree Level multi-function outputs, (H2-01and H2-02) as a setpoint Speed Agreement Detection Width...
Page 234 Table A.1 Parameter List (Continued Parameter Setting Factory Menu Parameter Name Description Range Setting Location LCD Digital Operator Display Hdwe Protection Internal Dynamic Braking Resis- 0: Not Provided L8-01 tor Protection Selection 0 or 1 Programming 1: Provided DB Resistor Prot When the cooling fin temperature exceeds the value set Overheat Pre-Alarm Level 50 to 130...
Page 235 Table A.1 Parameter List (Continued Parameter Setting Factory Menu Parameter Name Description Range Setting Location LCD Digital Operator Display Hunting Prev 0: Disabled (Hunting prevention function disabled). 1: Enabled (Hunting prevention function enabled). Hunting Prevention Selection n1-01 If the motor vibrates while lightly loaded, hunting 0 or 1 Programming Hunt Prev Select...
Page 236 Table A.1 Parameter List (Continued Parameter Setting Factory Menu Parameter Name Description Range Setting Location LCD Digital Operator Display Selects the "U1" monitors displayed on the 4th and 5th lines of the digital operator display. User Monitor Selection Mode 0: 3 Mon Sequential (Displays the next 2 sequential U1 o1-06 0 or 1 Programming...
Page 237 Table A.1 Parameter List (Continued Parameter Setting Factory Menu Parameter Name Description Range Setting Location LCD Digital Operator Display Sets how time is accumulated for the elapsed timer (o2-07). Cumulative Operation Time 0: Power-On Time o2-08 Selection 0 or 1 Programming (Time accumulates whenever drive is powered) Elapsed Time Run...
Page 238: Monitor List
Monitor List Table A.2 Monitor List Parameter Parameter Name Description LCD Digital Operator Display Monitor Frequency reference (speed command) monitor when in auto Frequency Reference U1-01 mode, frequency reference (speed command) setting location Frequency Ref when in hand mode. Units changeable via o1-03. Output Frequency Output frequency (speed) monitor.
Page 239 Table A.2 Monitor List (Continued) Parameter Parameter Name Description LCD Digital Operator Display Monitor Cumulative Operation Time U1-13 Displays total operating or power-on time of the Drive. Elapsed Time Software Number U1-14 Displays Drive's software number. FLASH ID Terminal A1 Input Voltage Displays the input voltage on Terminal A1, as a percentage of U1-15 Term A1 Level...
Page 240: Fault Trace List
Fault Trace List Table A.3 Fault Trace List Fault Trace Current Fault U2-01 Current Fault Previous Fault U2-02 Last Fault Frequency Reference at Most Recent Fault U2-03 Frequency Ref Output Frequency at Most Recent Fault U2-04 Output Freq Output Current at Most Recent Fault U2-05 Output Current Output Voltage at Most Recent Fault...
Page 241: Fault History List
Fault History List Table A.4 Fault History List Fault History Most Recent Fault U3-01 Last Fault Most Recent Fault U3-02 Fault Message 2 Most Recent Fault U3-03 Fault Message 3 Most Recent Fault U3-04 Fault Message 4 Cumulative Operation Time at Most Recent Fault U3-05 Elapsed Time 1 Cumulative Operation Time at 2...
Page 242: Decimal To Hex Conversion
Decimal to Hex Conversion: Table A.5 Decimal Decimal Parameters A - 30...
Page 243: Appendix B - Capacity Related Parameters
Appendix B Capacity Related Parameters This appendix lists the parameters affected by the Drive Capacity setting of o2-04. Drive Capacity ................2 Parameters Affected by o2-04 ........... 3 Capacity Related Parameter Values........... 4 Capacity Related Parameters B - 1...
Page 244: Drive Capacity
Drive Capacity Parameter o2-04 sets the Drive capacity according to the model number. Parameter o2-04 will need to be adjusted when replacing a control board. If a Control PCB is changed, the first time the Drive is powered up, parameter o2-04 must be set to the appropriate value listed in Table B.1 for the Drive model number.
Page 245 Parameters Affected by o2-04 The factory setting of the following parameters may change when the Drive capacity is changed. Table B.2 Parameters Affected by o2-04 Parameter Name Parameter Number Digital Operator Display Energy Saving Coefficient Value b8-04 Energy Save COEF Carrier Frequency Selection C6-02 CarrierFreq Sel...
Page 246 Capacity Related Parameter Values The following tables detail the factory default settings for the parameters that are affected by the setting of parameter o2-04. Table B.3 208/240VAC Drives Factory Factory Factory Factory Factory Factory Factory Factory Factory Factory Drive Model Nominal Default Default...
Page 247 Table B.4 480VAC Drives Factory Factory Factory Factory Factory Factory Factory Factory Factory Factory Drive Model Nominal Default Default Default Default Default Default Default Default Default Default CIMR-_ _ _ b8-04 C6-02 E2-01 E2-03 E2-05 L2-02 L2-03 L2-04 L8-02 L8-06 38.198 95°C 40P4...
Page 248 Notes: Capacity Related Parameters B - 6...
Page 249: Appendix C Specifications
Appendix C Specifications This appendix details the standard Drive Specifications. Standard Drive and Bypass Specifications ........2 208-240 VAC ................2 480 VAC ..................3 All Voltages ................4 Specifications C - 1...
Page 250: Standard Drive And Bypass Specifications
Standard Drive and Bypass Specifications The standard Drive and Bypass specifications are listed in the following tables. 208-240 VAC Table C.1 208-240VAC Drive and Bypass Specifications Bypass Model Number E7L_ * D003 D004 D007 D010 D016 D024 D030 D046 D059 D074 D088 208V...
Page 251 480 VAC Table C.2 480VAC Drive and Bypass Specifications Bypass Model Number E7L_ * B001 B002 B003 B004 B007 B011 B014 Motor HP (460V) 0.5/0.75 1.5/2 Bypass rated output current (A) Drive Model Number CIMR-E7U 42P2 42P2 42P2 42P2 43P7 45P5 47P5 Drive rated output capacity (kVA)
Page 252 All Voltages Table C.3 Common Drive Specifications All Models Specification Sine wave PWM Control method V/f control Speed range 40:1 Speed control accuracy ±2 to 3% (77°F ± 50°F) (25°C ± 10°C) Digital references: ± 0.01% (14°F to 104°F) (-10°C to +40°C) Frequency accuracy (temperature characteristics) Analog references: ±0.1% (77°F ±...
Page 253: Appendix D Communication
Appendix D Communication This appendix details the specifications, connections, and programming of the Drive for Modbus communications. This Drive also contains embedded APOGEE ™ FLN and Metasys N2 communication protocols. For details regarding APOGEE ™ FLN ® please refer to the E7 APOGEE Technical Manual (TM.E7.21).
Page 254: E7L And Serial Communication
E7L and Serial Communication The H/O/A selector keys must be in the AUTO position if serial communication is to be used for E7L run, stop or speed control. E7L serial communication may be used for any or all of the following monitoring and control functions: Monitor - Drive Parameters Control -...
Page 255: Using Modbus Communication
Using Modbus Communication Serial communication can be performed with Direct Digital Controllers (DDCs) or similar devices using the Modbus protocol. Modbus Communication Configuration Modbus communication is configured using 1 master (PLC) and a maximum of 31 slaves. Serial communication between master and slave is normally initiated by the master and responded to by the slaves.
Page 256: Communication Connection Terminal
Communication Connection Terminal Modbus communication uses the following terminals: TB4-1 (S+), TB4-2 (S-), TB4-3 (R+), and TB4-4 (R-). The terminating resistance must be turned ON only if the Drive is at the very end of the Serial Communication chain. Set the terminating resistance by turning ON pin 1 of switch S1.
Page 257 Related Parameters Table D.2 Serial Communication Related Parameters Parameter Setting Factory Chapter Menu Parameter Name Description Range Setting Ref # Location Digital Operator Display Selects the speed command (frequency reference) input source. Frequency Reference 0: Operator - Digital preset speed d1-01 Quick b1-01 Selection...
Page 258 Message Format In Modbus communication, the master sends commands to the slave, and the slave responds. The message format is configured for both sending and receiving as shown below. The length of the data packets is changed by the command (function) contents.
Page 259 Error Check Errors are detected during communication using CRC-16. Perform calculations using the following method: 1. The factory setting for CRC-16 communication is typically zero, but when using the Modbus system, set the factory setting to one (e.g., set all 16 bits to 1). 2.
Page 260: Modbus Function Code Details
Modbus Function Code Details Reading/Holding Register Contents (03H) Read the contents of the storage register only for specified quantities. The addresses must be consecutive, starting from a specified address. The data content of the storage register are separated into higher 8 bits and lower 8 bits. The following table shows message examples when reading status signals, error details, data link status, and frequency references from the slave 2 Drive.
Page 261 Loopback Test (08H) The loopback test returns the command message directly as the response message without changing the contents to check the communications between the master and slave. Set user-defined test code and data values. The following table shows a message example when performing a loopback test with the slave 1 Drive. Response Message Response Message Command Message...
Page 262 Modbus Data Tables The data tables are shown below. The types of data are as follows: Reference data, monitor data and broadcast data. Reference Data The reference data table is shown below. Reference data can be read and written to. Table D.4 Reference Data Register No.
Page 263 Monitor Data The following table shows the monitor data. Monitor data can only be read. Table D.5 Monitor Data Register No. Contents Drive status Bit 0 Operation 1: Operating 0: Stopped Bit 1 Reverse operation 1: Reverse operation 0: Forward operation Bit 2 Drive startup complete 1: Completed 0: Not completed Bit 3...
Page 264 Table D.5 Monitor Data (Continued) Register No. Contents Sequence input status Bit 0 Input terminal S1 1: ON 0: OFF Bit 1 Input terminal S2 1: ON 0: OFF Bit 2 Multi-function digital input terminal S3 1: ON 0: OFF 002BH Bit 3 Multi-function digital input terminal S4 1: ON 0: OFF...
Page 265 Broadcast Data The following table shows the broadcast data. Broadcast data can be written to. Table D.6 Broadcast Data Register Contents Address Operation signal Bit 0 Run command 1: Operating 0: Stopped Bit 1 Reverse operation command 1: Reverse 0: Forward Bits 2 and 3 Not used Bit 4...
Page 266 Error Codes The following table shows Modbus communication error codes. Table D.8 Error Codes Error Contents Code Function code error A function code other than 03H, 08H, or 10H has been set by the PLC. Invalid register number error • The register address you are attempting to access is not recorded anywhere. •...
Page 267: Modbus Self-Diagnosis
Modbus Self-Diagnosis The Drive has a built-in function for self-diagnosing the operations of serial communication interface circuits. The self-diagnosis function connects the communication parts of the send and receive terminals, receives the data sent by the Drive, and checks if communication is being performed normally. Perform the self-diagnosis function using the following procedure.
Page 268: Metasys N2 Point Database
Metasys N2 Point Database Metasys N2 Analog Input (AI) Summary Table D.9 Metasys N2 Analog Input Summary (E7 to Metasys N2) Object ID Object Name Units E7 Parameter AI 1 SPEED REFERENCE 0.01 Hz U1-01 AI 2 OUTPUT SPEED 0.01 Hz U1-02 AI 3 OUTPUT CURRENT...
Page 269 Metasys N2 Analog Output (AO) Summary Table D.10 Metasys N2 Analog Output Summary (Metasys N2 to E7) Object ID Object Name Units Default Value E7 Parameter AO 1 SPEED COMMAND 0.01 Hz AO 2 ACCELERATION TIME 30.0 C1-01 AO 3 DECELERATION TIME 30.0 C1-02...
Page 270: Metasys N2 Binary Input (Bi) Summary
Metasys N2 Binary Input (BI) Summary Table D.11 Metasys N2 Binary Input Summary (E7 to Metasys N2) Object ID Object Name Default Off (0) State On (1) State BI 1 RUN / STOP MONITOR STOPPED RUNNING BI 2 FORWARD / REVERSE MONITOR FORWARD REVERSE BI 3...
Page 271: Mailbox Function Points
Mailbox Function Points Reading a Drive Parameter Two points are defined for reading any Drive parameter: AO 30 Specifies the parameter to be read from the E7 Drive AI 38 Reports the value of the parameter specified in AO 30 When this point is read, it retrieves data from the parameter and sends it to the controller Example: Writing a value of 387 (183 hex) to AO 30 specifies Drive parameter b1-04.
Page 272: Apogee Fln Point Database
APOGEE FLN Point Database APOGEE FLN Point List Summary This database is for APOGEE FLN Application 2721 and features 97 logical points: 29 Logical Analog Inputs (LAI), 35 Log- ical Analog Outputs (LAO), 19 Logical Digital Inputs (LDI) and 14 Logical Digital Outputs (LDO). These points configure, control or monitor the operation of the Drive.
Page 273 Table D.13 APOGEE FLN Application 2721 Point Number Summary (Continued) Point Point Factory Default Engr. Units Slope Intercept Drive Point Name Number Type (SI Units) (SI Units) (SI Units) (SI Units) Text Text Parameter FREQ LOW LIM – – d2-02 {40} MULTI OUT 1 –...
Page 274 Table D.13 APOGEE FLN Application 2721 Point Number Summary (Continued) Point Point Factory Default Engr. Units Slope Intercept Drive Point Name Number Type (SI Units) (SI Units) (SI Units) (SI Units) Text Text Parameter {87} PID OUT CAP 0.01 – –...
Page 275 APOGEE FLN Logical Analog Input (LAI) Summary Table D.14 APOGEE FLN Application 2721 Logical Analog Input (LAI) Summary (Drive to APOGEE FLN) Point Drive Slope Database Descriptor Units Intercept Default Number Parameter FREQ OUTPUT 0.01 Fmin Fmax U1-02 PCT OUTPUT 0.01 –...
Page 276 APOGEE FLN Logical Analog Output (LAO) Summary Table D.15 APOGEE FLN Application 2721 Logical Analog Output (LAO) Summary (APOGEE FLN to Drive) Point Drive Slope Database Descriptor Units Intercept Default Number Parameter CTLR ADDRESS – H5-01 APPLICATION – 2721 32767 –...
Page 277 APOGEE FLN Logical Digital Input (LDI) Summary Table D.16 APOGEE FLN Application 2721 Logical Digital Input (LDI) Summary (E7 to APOGEE FLN) Point Defaul Off (0) On (1) Database Descriptor Slope Intercept Number State State Parameter MINOR FLT NO FLT FAULT U1-12 (Bit 6) MAJOR FLT...
Page 278: Mailbox Function Points
Mailbox Function Points Reading a Drive Parameter Two points are defined for reading any Drive parameter: Specifies the parameter to be read from Reports the value of the parameter specified in Point #70 When this point is read, it retrieves data from the parameter and sends it to the controller Example: Entering a value of 387 (183 hex) in Point #70 specifies Drive parameter B1-04.
Page 279 Note: Communications D - 27...
Page 280 Communications D - 28...
Page 281: Appendix E Peripheral Devices
Appendix E Peripheral Devices This appendix describes recommended branch short circuit protection and peripheral devices. Branch Circuit Short Circuit Protection....... E-2 Branch Circuit Overload Protection........E-5 Peripheral Devices ............. E-6 Peripheral Devices E - 1...
Page 282: Branch Circuit Short Circuit Protection
Branch Circuit Short Circuit Protection The following peripheral devices may be required between the AC main circuit power supply and the Drive input terminals L1(R), L2(S), and L3(T). Refer to applicable codes to determine the devices necessary for a given installation.
Page 283 Table E.2 Recommended Fuse and Circuit Breaker Ratings per NEC (480Vac Input) Fuse Circuit Breaker Input Output Selection Criteria Selection Criteria Amps Amps Model Maximum Maximum Maximum CB CIMR-E7U Time-Delay Non-Time-Delay (Continuous (Continuous Rating (A) Fuse Rating (A) Fuse Rating (A) Rating) Rating) 40P4...
Page 284 Table E.3 Semiconductor Fuses for Drive I t Protection and Branch Circuit Short Circuit Protection (200V Series) Recommended Alternate 1 Alternate 2 Drive Model No. Fuse Model No. Rating Fuse Mfr. Model No. Rating Fuse Mfr. Model No. Rating CIMR-E7* Mfr.
Page 285: Branch Circuit Overload Protection
Table E.4 Semiconductor Fuses for Drive I t Protection and Branch Circuit Short Circuit Protection (400V Series) Recommended Alternate 1 Alternate 2 Drive Model No. Fuse Model No. Rating Fuse Mfr. Model No. Rating Fuse Mfr. Model No. Rating CIMR-E7* Mfr.
Page 286: Peripheral Devices
Peripheral Devices The following peripheral devices may be required to be mounted between the AC main circuit power supply and the Drive input terminals R/LI, S/L2, and T/L3. Never connect a general LC/RC noise filter to the Drive output circuit. Never connect a phase-advancing capacitor to the input or output sides, or a surge suppressor to the output CAUTION side of the Drive.
Page 287: Appendix F Replacement Parts
Note: Part numbers listed in Appendix F are for units being produced at the date of publication. When purchasing replacement parts, confirm with Yaskawa Customer Service Center (800-927-5297) that part numbers ordered are compatible with the Drive or Bypass unit serial numbers specific to the installation.
Page 288: Primary Drive Replacement Parts - 208/230/240Vac
Primary Drive Replacement Parts - 208/230/240VAC Table F.1 208-240VAC Primary Parts Drive Model Nominal Power PCB Gate Drive PCB Control PCB Diode Module CIMR-E7U (3PCB) (3PCB) (1PCB) 20P4 ETP617012 ETC618021-S3010 Inside the Power Module 0.5/0.75 20P7 ETP617012 ETC618021-S3010 Inside the Power Module 21P5 ETP617022 ETC618021-S3010...
Page 289: Primary Drive Replacement Parts - 480Vac
Primary Drive Replacement Parts - 480VAC Table F.2 480VAC Primary Parts Drive Model Nominal Power PCB Gate Drive PCB Control PCB Diode Module CIMR-E7U (3PCB) (3PCB) (1PCB) 40P4 ETP617082 ETC618021-S3010 Inside the Power Module 0.5/0.75 40P7 ETP617082 ETC618021-S3010 Inside the Power Module 41P5 ETP617092 ETC618021-S3010...
Page 290: Bypass Replacement Parts
DC Bus Choke Contactor Contactor Relay Transformer Primary Fuses Option F Option R Option E Switch Drive Semiconductor Fuses (3) 3% - Option X 5% - Option Z YASKAWA BYPASS YASKAWA YASKAWA YASKAWA YASKAWA YASKAWA YASKAWA BUSSMANN YASKAWA NOM. BASE NO.
Page 291 Table F.4 Bypass Common Replacement Parts Part Description Part Number W1 AND W2 CABINET FAN UFN000005 W1 AIR FILTER UFL00001-1 W2 AIR FILTER UFL00001-2 CDR001104 LED DIGITAL OPERATOR (JVOP161) OPTIONAL LCD DIGITAL OPERATOR (JVOP162) CDR001115 FRONT CONTROL PANEL WITH LED DRIVE KEYPAD UTC000046 FRONT CONTROL PANEL WITH LCD DRIVE KEYPAD UTC000047...
Page 292 Spare Parts F - 6...
Page 293 Auto Restart ..............5-65 Faults Covered ............5-66 -A.TUNE- Menu........ 3-11, 3-20, 5-80, A-25 Restart Time After Fault ........5-5, 5-65 AC Reactor ...............F-4 Number of Attempts ..........5-65 Accel/Decel Parameters...............A-21 Parameters ..............A-7 Auto-Tuning Time................. 5-38 Fault Displays and Processing .........6-17 Acceleration How to ..............5-80 Specification .............
Page 294 Carrier Frequency Specification............6-2 And Cable Length..........2-4, 6-22 Testing ..............6-3 And Drive Capacity .......... B-3, B-4 Maintenance Mode........6-2 And Vibration ............6-23 Troubleshooting ..........6-4 Error.................6-16 Power Parameters ..............A-8 Fuse ............1-13, F-4 Charge Indicator (LED) ..........7-8, C-4 Indicator ............3-6, 3-9 Circuit Breakers Transformer ............
Page 295 Fault (PUF) ............6-11 Power-up Monitor Selection........5-72 Replacement Part ........F-2, F-3 Preventive Maintenance ..........7-3 Reactors..........1-9, C-2, C-3, E-6 Replacement Part............F-5 Voltage Write-protected ........5-78, 6-18, A-25 Checking ..........6-25, 7-7, 7-8 Digital Outputs..............2-9 Overvoltage/Undervoltage..6-11, 6-12, 6-15, C-4 Connection Diagram......2-19, 2-20, 2-24 Safety ..............
Page 296 PI Control ............5-29, A-5 Floating Point Control Reverse Run ............ 5-16, A-4 Up/Down Control ............6-16 Safety Circuit ............4-13 MOP Increase/Decrease ....5-43, 5-50, A-9, A-12 Serial Communication.... 1-8, 1-9, 2-14, A-18, D-4 Forward Run/Stop Command ..........Speed Command Loss Detection ....5-64, A-21 ..........
Page 297 Proportional............. 5-29, A-5 Gate Drive PCBs IGBT (Transistor Module) Inspecting ..............7-2 Inspecting..............7-2 Spare Parts............F-2, F-3 Spare Parts ............F-2, F-3 Testing ............6-27, 6-28 Testing..............6-27 Troubleshooting ..........6-12, 6-15 INCREASE Key ..........3-3, 3-22, 5-75 Ground Fault Functions.........5-66, 6-9, A-22 Troubleshooting ............6-19 Ground Fault Interrupter (GFI) Indicator, Charge.......
Page 298 Stopping Method at Error .........D-5 Terminals ............2-14, 2-21 Keypad (see Digital Operator) ....1-10, 3-1, 3-2, 5-26 Mode Selection ....... 1-12, 3-2, 3-4, 5-6, 5-25 Copy .............5-78, 6-18, A-25 Model Number ..........1-2 to 1-7, C-2 Keys................3-3 Drive ......1-2, 1-7, 7-7, A-24, A-25 B-2, C-2 kVA.................
Page 299 Multi-function Digital Outputs..........Spare Parts ..........F-2, F-3 ...........2-9, 2-15, 2-19, 2-24, 5-53, A-15 Testing ..............6-27 Multi-step Speed Reference (Preset Speed) ......Voltage Monitor (U1-06) ........A-26 ..........5-12, 5-39, 5-50, 5-51, A-4, A-8 Outputs, Analog ........ 2-13, 2-20, A-17, A-18 Outputs, Digital....2-9, 2-15, 2-19, 2-24, 5-53, A-15 Over Current (OC) .........
Page 300 Monitor Select (o1-01 - o1-08) ....A-23, A-24 Output ..............5-30, A-5 MOP/Trim Control (d4-01 - d4-02) ......A-9 Gain Setting ..........5-31, A-5 Motor Overload (L1-01 - L1-05) ......A-19 Level Selection .........5-31, A-5 Motor Setup (E2-01 - E2-05) ........A-11 Limit ............5-30, A-5 Option Dependent Settings ......
Page 301 Protective Functions ..........C-4, A-22 PWM Frequency - See Carrier Frequency ...... A-8 Safety Circuit ....2-10, 2-20, 3-7, 4-2, 4-4, 4-13, A-14 Scaling Display Digital Operator ..........5-73, A-23 -QUICK- Setting Menu ......... 3-11, 3-16 PI Setpoint ............5-33, A-6 Schematic Diagram........2-7, 2-18, 2-22 S-Curve Characteristic.............A-7 SEQ...................3-4 Ramp to Stop ............
Page 302 Setting Selection..........5-75, A-24 Timers, Elapsed..............Signal Polarity..........2-12, 4-7 ......3-15, 5-76, 5-77, A-24, A-25, A-27 to A-29 Troubleshooting ........6-4, 6-20, 6-21 Timer, On Delay............5-17, A-4 Speed Potentiometer..........2-12, 5-7 Top Bracket...............7-8 Speed Reference, Multiple (Multi-step Speed) ...... Torque Compensation ............A-8 .............
Page 303 Weight ............1-3 to 1-5, 1-18 Wire Clamping Torque..........2-3, 2-19 Gauge ............... 2-3, 2-19 Length ............... 2-4 Routing..............2-6 Size..............2-3, 2-19 Wiring, Electrical Installation .......... 2-1 Control Circuit ............2-8 Diagrams ............2-18, 2-22 Distances ..............2-4 Ground............... 2-5 Main Circuit Configurations............
Page 304: Index
Index - 12...
Page 306 B1, 6F, No.51, Section 2, Kung-Yi Road, Taichung City, Taiwan, R.O.C. 1 Hunt Hill Orchardton Woods Cumbernauld, G68 9LF, Scotland, United Kingdom Phone: 886-4-2320-2227 Fax:886-4-2320-2239 Phone: 44-12-3673-5000 Fax: 44-12-3645-8182 YEA Document Number: TM.E7L.01 6/1/2005 Rev. 05-06 Data subject to change without notice. Yaskawa Electric America, Inc.

This manual is also suitable for:

E7lvd004 E7lbd002 E7lvd003 E7lvd007 E7lbd004 E7lbd007 ... Show all

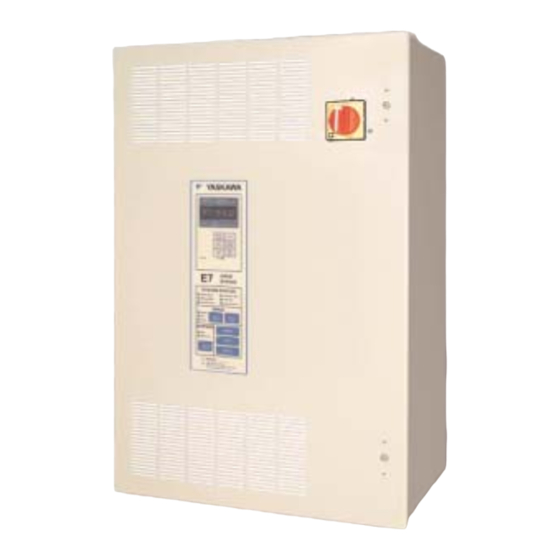

YASKAWA E7LVD002 Technical Manual

Notes

Chapter 1 - Physical Installation

Chapter 2 Electrical Installation

Chapter 3 Control Panel

Chapter 4 Start up and Operation

Chapter 5 Programming

Chapter 6 Diagnostics & Troubleshooting

Chapter 7 Maintenance

Appendix A Parameters

Chapter 7 - Maintenance

Appendix B - Capacity Related Parameters

Appendix C Specifications

Appendix D Communication

Appendix E Peripheral Devices

Appendix F Replacement Parts

Quick Links

Chapters

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for YASKAWA E7LVD002

Summary of Contents for YASKAWA E7LVD002
