Adjust the outer size change plate of the bulk paper module
(optional)
Introduction
When using special types of paper, such as coated paper, the paper size may be slightly
different from standard paper sizes, and this may cause problems. Adjusting the width
between the size change plates can solve the following problems due to the paper size.
If the paper size is larger than a standard paper size:
Paper jams may occur if the space between the size change plates and the paper is too
narrow. Make the space between the size change plates and the paper wider.
If the paper size is smaller than a standard paper size:
The entire printed area may be shifted vertically to the top or bottom, or may be
slanted if the space between the size change plates and the paper is too wide. In this
case, make the space between the size change plates and the paper narrower.

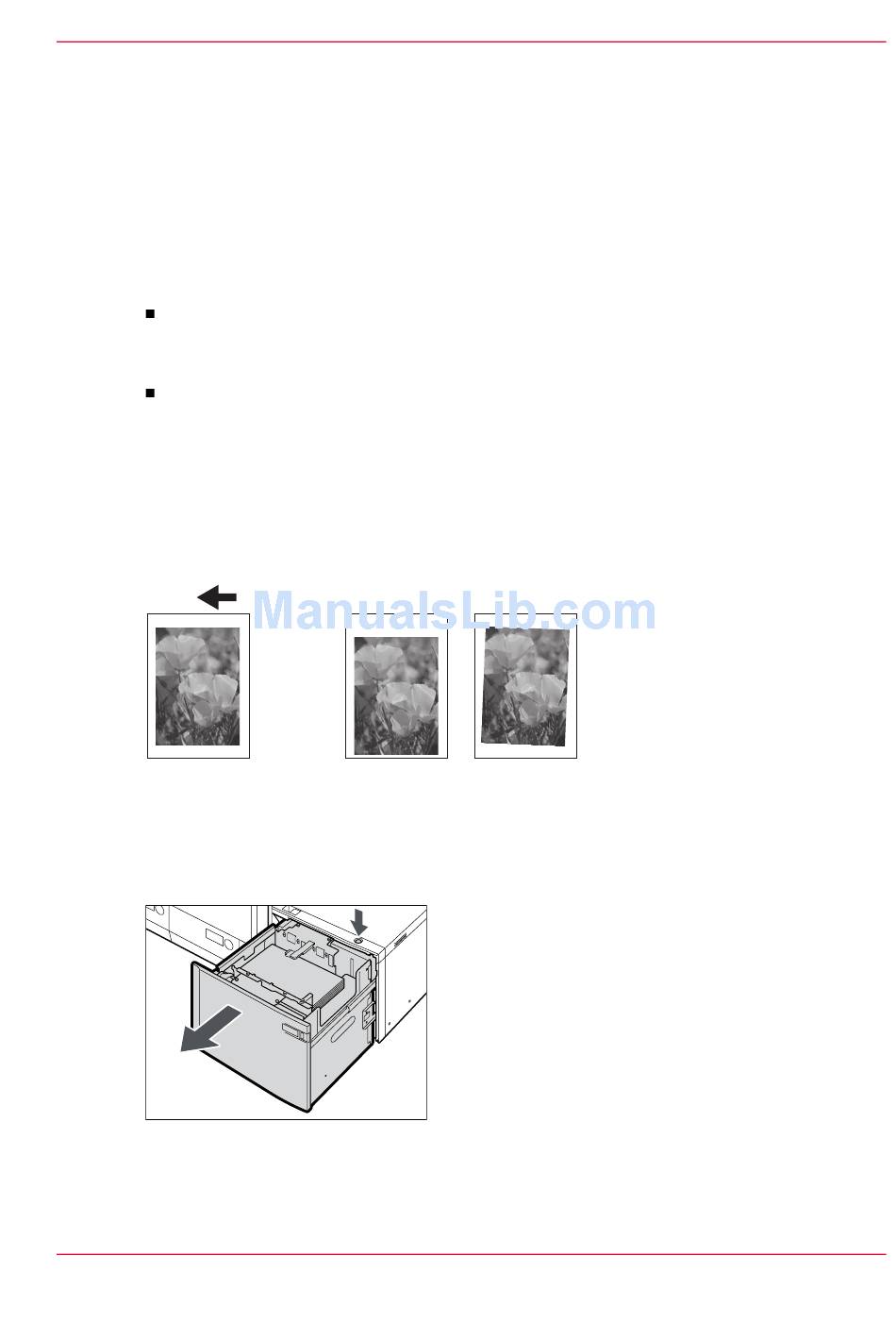

Illustration
Normal
Adjust the outer size change plate of the bulk paper module
Press the open button to open the paper tray.
1.
Adjust the outer size change plate of the bulk paper module (optional)
Direction of Paper Being Transported
Shifted Slanted
Chapter 9 - Paper, toner, and staples 251
