Workpiece coordinate system
Display workpiece coordinate system, i.e. the offset of workpiece home position and machine tool home
position, Totally six basic workpiece coordinate systems (G54~G59) and nine extension coordinate systems
(G591~G599) are available.
To enter workpiece coordinate system interface:
[Coordinates/COORD]

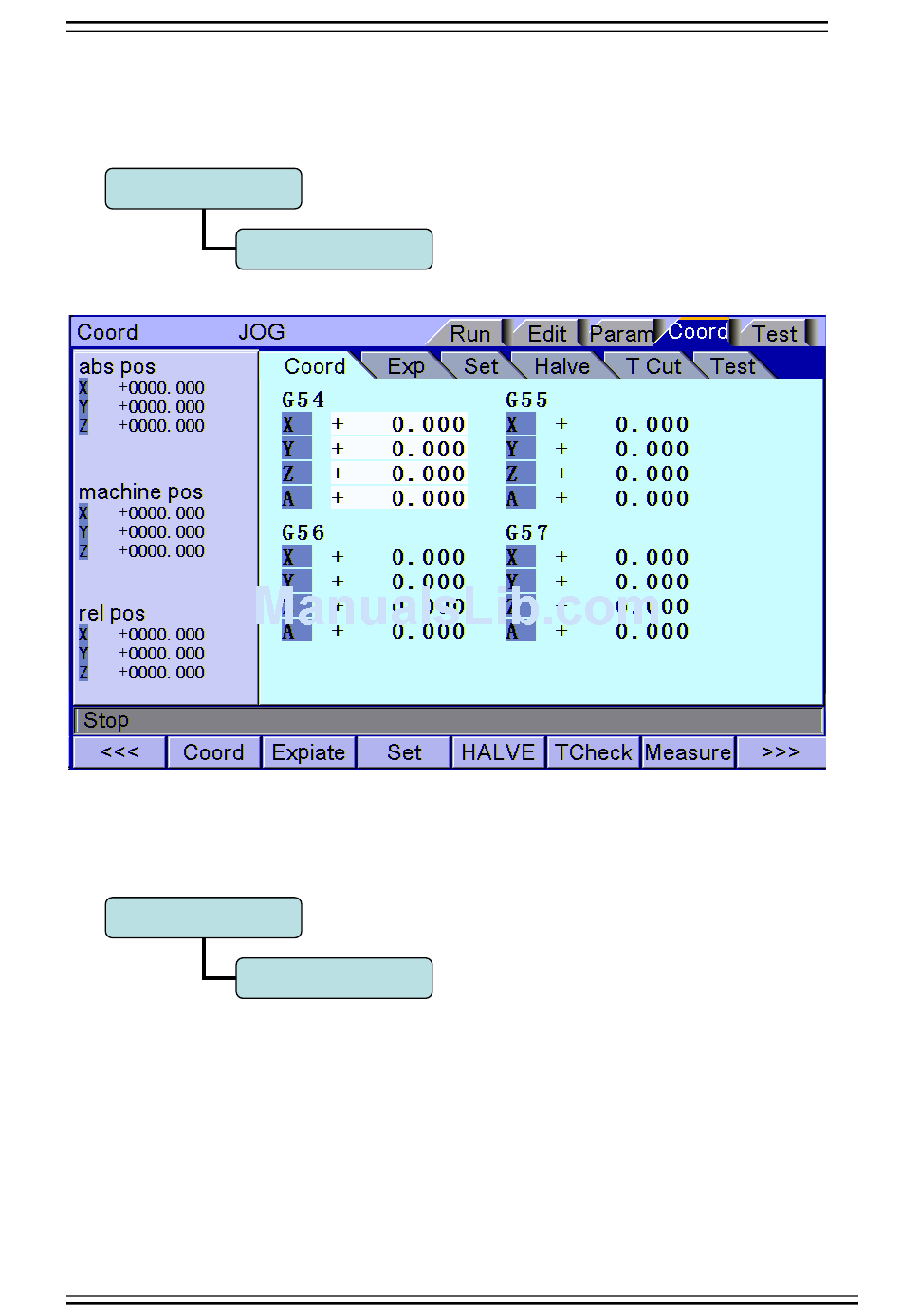

The workpiece coordinate system interface is shown below:
Coordinate system auxiliary parameter setting interface
The auxiliary parameters for workpiece coordinate system, including origin offset and tool setting
parameters of automatic tool regulator.
To enter coordinate system auxiliary parameter setting interface:
[Coordinates/COORD]
[Coordinate System]
Workpiece Coordinate System Setting Interface
[Coordinate Parameter]
9. Main interfaces of the system
