- Page 1 Capacitive Torch Height Controller HCB2001 ADTECH （Shenzhen）Technology Co.,LTD Read this manual fully before using the HCB2001...
- Page 2 Connect the detecting loop byside of torch via co-axis cable, to sense the height between cutting torch and the workpiece. HCB2001 sends out signal processed by circuit inside of it, to Logic Control circuit, and then continues with control signal to Motor Drive circuit, driving the lifter’s motor running accordingly to achieve the goal of adjusting...
- Page 3 HCB2001 Capacitive Torch Height I、 Key features 1. Analog circuit instead of SMD Tech on our THC, PWM driving mode, ensuring high reliability of THC. 2. Circuit-broken protection. On Auto Mode torch lift up automatically in the situation of HF disconnected, open circuit, short circuit, avoid crashing the torch.
- Page 4 Protection range of cutting-wire： There is no protection function when the length of HF-cable exceeds 1200mm. Ⅲ： Appearance and Installation 1、 Shape of HCB2001： Figure 2：front panel view， Figure 3：back sight View， Figure 4：bottom view ：installation size， Figure 5: Back view Figure 2 shows the shape of HCB2001. www.machine-controller.com...
- Page 5 HCB2001 Capacitive Torch Height Figure 4 shows the installation size, the hole’s size is 5x10mm, with 4mm screw to install. THC should be installed above and left side of cutting torch. www.machine-controller.com...
- Page 6 HCB2001 Capacitive Torch Height 2、 Installation of detecting loop: According to our years practice, detecting loop should be installed lower about 1∽2mm than torch head to avoid the edge effect during cutting edge of workpiece, and it anti-bump more effectively, as...
- Page 7 HCB2001 Capacitive Torch Height showed in Figure 6. While on plasma cutting, the detecting loop shall be installed little higher than the torch head, to avoid the effect of plasma arc voltage. www.machine-controller.com...

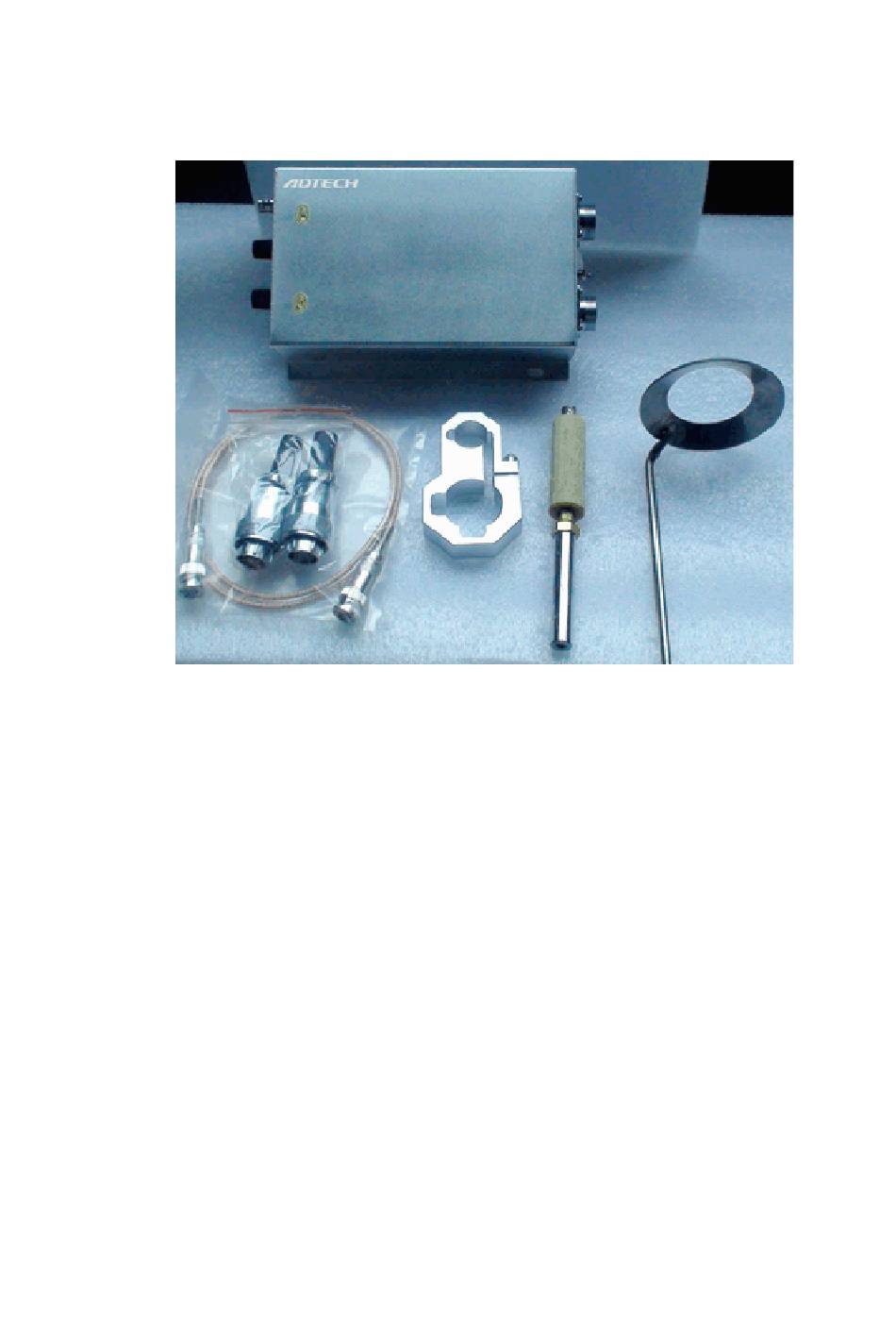

- Page 8 HCB2001 Capacitive Torch Height Ⅳ：Components As the Figure 7 shows the CHC consists of three parts: HCB2001, detecting loop and loop groupware. Figure 7: HCB2001 Assembly www.machine-controller.com...
- Page 9 Power indication: Auto Button: Press the AUTO button, the HCB2001 is always on Auto Mode, no matter there is a auto signal from outside or not. Then the demanded height can be set via Height button, (keep pressing AUTO during this process). It greatly simplify the setting of Auto Height Position.
- Page 10 Detecting loop connects the socket: One end of HF Cable link with the socket, the other end link with the probe through loop groupware. 2、Back of HCB2001: Figure 9: Back of HCB2001 3、 Spec of detecting loop: Figure 10 www.machine-controller.com...
- Page 11 HCB2001 Capacitive Torch Height HF Cable: The length of the cable can be chosen from 500mm∽1500mm requested by clients as Figure 11 shows: Figure 11：HF cable www.machine-controller.com...
- Page 12 HCB2001 Capacitive Torch Height Figure 12: Installation Handle Figure 13： Elastic Connector Ⅵ、Interface Circuit 1、Control circuit of HCB2001 The HCB2001 consists of 2 pieces PCB, the control circuit as Figure 14 ows: www.machine-controller.com...
- Page 13 HCB2001 Capacitive Torch Height THC consists of following connecting ports: Connect with CNC (4Pins JP3 socket)： www.machine-controller.com...
- Page 14 HCB2001 Capacitive Torch Height www.machine-controller.com...
- Page 15 HCB2001 Capacitive Torch Height MOTOR Drive: S13 and S12 is the output of Motor Drive. The voltage of MOTOR is DC24V. Motor driving elements as Figure 19 shows: Figure 19：MOTOR drive It adopts PWM mode, the frequency of PWM ranges from 18khz and 36 khz, the...
- Page 16 HCB2001 Capacitive Torch Height switch operation is made by SP2-1 on the control panel. As Figure 20 shows: Ⅶ：Connection Instruction 1、 Figure 21 shows the connection of control PCB’s aviation socket. www.machine-controller.com...
- Page 17 HCB2001 Capacitive Torch Height 2、 Connection Of CNC and THC (X1-CNC ) 3、 Connection of Down/Up limit and motor(X2-TORCH) www.machine-controller.com...
- Page 18 2. As the difference of cutting torch, it might be hard to find the balance position in all range of Height adjusting. In this situation, DO NOT open the control box, just debug the⊕ of R39 +⊕ at the back of HCB2001, www.machine-controller.com...
- Page 19 R47---20K----Setting the position under circuit-broken protection(HF part) . Free Offer…………………………… To make users’ job much easier, we designed a Fixture fixing torch and detecting loop, made of Aluminum Alloy. From May 10th, we offer it with HCB2001 on Free Base. www.machine-controller.com...
- Page 20 HCB2001 Capacitive Torch Height www.machine-controller.com...
