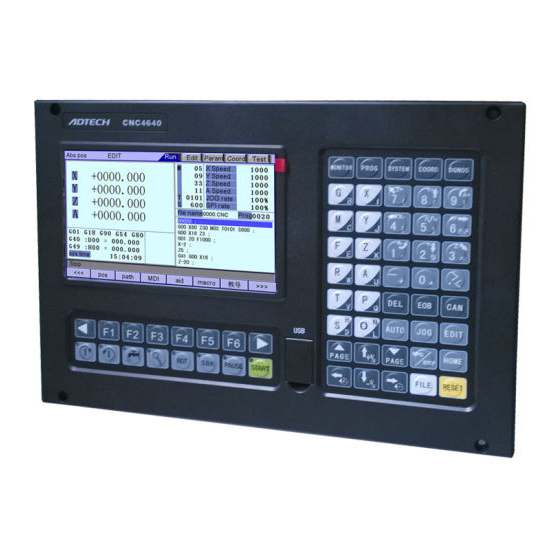

ADT-CNC4640
CNC46XX Series CNC System
Maintenance Manual
Adtech (Shenzhen) CNC Technology Co., Ltd.
Add: 5/F, Bldg/27-29, Tianxia IC Industrial Park, Yiyuan Rd, Nanshan District, Shenzhen
Postal code: 518052
Tel: 0755-26722719
Fax: 0755-26722718
E-mail:
export@machine-controller
http://www.machine-controller.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADT-CNC4620 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Adtech ADT-CNC4620

Summary of Contents for Adtech ADT-CNC4620

  • Page 1 ADT-CNC4640 CNC46XX Series CNC System Maintenance Manual Adtech (Shenzhen) CNC Technology Co., Ltd. Add: 5/F, Bldg/27-29, Tianxia IC Industrial Park, Yiyuan Rd, Nanshan District, Shenzhen Postal code: 518052 Tel: 0755-26722719 Fax: 0755-26722718 E-mail: export@machine-controller http://www.machine-controller.com...
  • Page 2 CNC4640 Maintenance Manual Copyright Adtech (Shenzhen) Technology Co., Ltd. (Adtech hereafter) is in possession of the copyright of this manual. Without the permission of Adtech, the imitation, copy, transcription and translation by any organization or individual are prohibited. This manual doesn’t contain any assurance, stance or implication in any form. Adtech...
  • Page 3 CNC4640 Maintenance Manual Version History Item No. First uploaded on Version No. Pages Compiled by Typeset by XT20100819 2011-3-01 A0101 Yang Jipeng Yang Jipeng XT20100819 2011-9-22 A0201 Yang Jipeng Yang Jipeng Revision Date Version/Page Result Confirmed by Remark: We have collated and checked this Manual strictly, but we can’t ensure that there are no error and omission in this Manual.
  • Page 5 Adtech CNC Technology Co., Ltd. Contents Contents 1. Foreword ..........................- 3 - 2. System technical characteristics ..................- 3 - 2.1 System structure ..........................- 3 - 2.2 System technical parameters ......................- 3 - 2.3 System function..........................- 5 - 2.3.1 Self-diagnosis..............................- 5 - 2.3.2 Compensation ..............................
  • Page 6 ADT-CNC46XX 系列维护手册 9.1 Position interface ..........................- 27 - 9.2 Edit interface............................ - 29 - 9.3 MDI interface ..........................- 30 - 9.4 File management..........................- 31 - 9.5 Graphic simulation........................... - 31 - 9.6 Parameter interface .......................... - 32 - 9.7 Compensation interface ........................

  • Page 7: Foreword

    1. Program saving & editing 1. Foreword CNC4640/4620 numerical control system is economic embedded system developed by Adtech (Shenzhen) CNC Technology Co., Ltd. for milling machines and machining centers, where CNC4640 is four axes motion controller and CNC4620 is two axes motion controller.
  • Page 8 Adtech CNC Technology Co., Ltd. 2. Program saving & editing Function Name Specification X axis, Y axis, Z axis, A axis: 9999 Fast feeding speed mm/min (maximum) Per minute 1~9999mm/min Feeding speed range Feeding Per rotation 1~500rpm Automatic acceleration/deceleration Feeding speed rate...

  • Page 9: System Function

    Adtech CNC Technology Co., Ltd. 2. Program saving & editing 2.3 System function 2.3.1 Self-diagnosis Diagnose CPU, memory, LCD, I/O interface, parameter state, coordinates and processing program comprehensively every time the system is started or reset; diagnose power supply, principal axis, limit and I/O ports in real-time during operating.

  • Page 10: Operating Panel

    Adtech CNC Technology Co., Ltd. 3. Program saving & editing 3. Operating panel 3.1 LCD/keypad Keypad Fig. 3.1 CNC4640 Operating Panel Diagram Note: Press the submenu buttons to perform the operations of submenus. Manual axis moving and edit & input are composite. It has different definitions according to the modes.

  • Page 11: Lcd Brightness Adjustment

    Adtech CNC Technology Co., Ltd. 3. Operating panel LCD unit Fig. 3.2 CNC4640 LCD Screen Diagram Note: Screen info shows the information of current window Working mode info shows currently selected working mode System main screen shows current main screen.

  • Page 12: System Menus

    Adtech CNC Technology Co., Ltd. 3. Program saving & editing 3.3 System menus CNC46XX system uses cascading menu structure. You can press the following keys to operate the menus. Press a key to show the corresponding content in the bottom of the LCD.
  • Page 13 Adtech CNC Technology Co., Ltd. 3. Operating panel [Parameter] [Comprehensive Parameter] [Axis Configuration] [Management] [Tool Magazine] [Principal Axis] [Port] M Series [Coordinates] [Coordinate Setting] [Compensation] [Coordinate Parameter] [Centered Measurement] [Tool Regulator] [Measurement] L Series [Coordinates] [Compensation] [Tool Setting for Test...
  • Page 14 Adtech CNC Technology Co., Ltd. 3. Program saving & editing [Diagnosis] [Alarm Info] [Input Diagnosis] [Output Diagnosis] [DA Diagnosis] - 10 -...

  • Page 15: Operating Keys

    Adtech CNC Technology Co., Ltd. 3. Operating panel 3.4 Operating keys The keys of CNC46XX system are defined below: Purpose [RESET] Cancel alarm, reset CNC Address/number keys Enter letters, numbers, etc. [EOB], [CAN] Confirm or cancel operation [EOB], [CAN], [DEL]...

  • Page 16: Manual Operation

    Adtech CNC Technology Co., Ltd. 4. Manual operation 4. Manual operation 4.1 Returning to reference point manually CNC machine tool has specific mechanical position, which is called as reference point and for tool exchange and coordinates setting. Generally, when the power supply is connected, the tool should be moved to the reference point.

  • Page 17: Continuous Feeding Manually

    Adtech CNC Technology Co., Ltd. 4. Manual operation 4.2 Continuous feeding manually Press the keys on the operation panel or handwheel to move the tool along every axis. The operation follows: ⑴ Press the mode switch key [Manual] to select manual operation;...

  • Page 18: Manual Auxiliary Function Operation

    Adtech CNC Technology Co., Ltd. 4. Manual operation 4.5 Manual auxiliary function operation Coolant on/off In handwheel/single step/manual mode, press this key to switch on/off the coolant. Key indicator: No matter in what mode, the key indicator is on if only the coolant is on, or else the indicator is off.

  • Page 19: Tool Setting

    Adtech CNC Technology Co., Ltd. 4. Manual operation 4.6 Tool setting Tool setting is the main operation and important skill during CNC processing. Under certain conditions, tool setting precision can determine the processing precision of parts, and the tool setting efficiency also affects the CNC processing efficiency directly.

  • Page 20: Tool Regulator (M Series)

    Adtech CNC Technology Co., Ltd. 4. Manual operation Circle centered has two modes, which are three points and two points with specified radius; If the user only types two coordinates in the option of workpiece boundary point and specifies one value for R, the system will determine the circle center with two points and radius automatically;...

  • Page 21: Tool Setting By Test Cutting (L Series)

    Adtech CNC Technology Co., Ltd. 4. Manual operation 4.6.3 Tool setting by test cutting (L series) The machine tool uses test cutting for tool setting, which moves the tool to cut the processing file, measures the value after cutting and enters into the system to complete the tool setting for center point.

  • Page 22: Automatic Operation

    Adtech CNC Technology Co., Ltd. 5. Automatic operation 5. Automatic operation The machine tool moving according to prepared program is called as automatic operation. The automatic operation modes of CNC46XX system follow: Memory operation, MDI operation, USB disk DNC operation.

  • Page 23: Run Idle

    Adtech CNC Technology Co., Ltd. 5. Automatic operation In automatic or manual mode, press the Left/Right key to adjust the principal axis rotation by 100r/min. The maximum rotation is set by the principal axis parameters in the system and the minimum rotation is 16r/min.

  • Page 24: Safe Operation

    Adtech CNC Technology Co., Ltd. 5. Automatic operation 6. Safe operation 6.1 Emergency stop Press the emergency stop button on the machine tool, which will stop immediately, and all outputs such as principal axis rotation and coolant are turned off. Rotate the button clockwise to cancel emergency stop, but all outputs must be restarted.

  • Page 25: Alarm And Self- Diagnosis Function

    Adtech CNC Technology Co., Ltd. 7. Program saving & editing 7. Alarm and self- diagnosis function The system has several levels, and the alarm numbers also have different type, as follow: 0~1023: G code program running alarm info 1024~2048: System environment alarm info 7.1 NC program execution alarm...

  • Page 26: System Environment Alarm

    Adtech CNC Technology Co., Ltd. 7. Program saving & editing 0032 Missing X Code Error 0033 Missing X Code Error 0034 Missing X Code Error 0035 Missing X Code Error 0036 Missing X Code Error 0037 Missing X Code Error...

  • Page 27: Alarm Processing

    Adtech CNC Technology Co., Ltd. 7. Program saving & editing 1033 4 - direction machine limit 1034 4 + direction machine limit 1035 Z - direction machine limit 1036 Z + direction machine limit 1037 Y - direction machine limit...

  • Page 28: Self-Diagnosis Function

    Adtech CNC Technology Co., Ltd. 7. Program saving & editing When alarm occurs, please remove the alarm reason. Please note that several alarms may occur at the same time. Please refer to the alarm info in the Diagnosis menu for details. When the alarms are eliminated, please press [Reset] to clear the alarm ring.

  • Page 29: Program Saving & Editing

    The step of transmitting files to controller through PC follows: Set system baud rate and ID No.; Connect to PC and run Adtech serial communication software; Set the baud rate same as controller, and scan ID device; Select the [Upload file to NC] button in the communication software;...

  • Page 30: Deleting Files

    Adtech CNC Technology Co., Ltd. 8. Program saving & editing notepad in Windows. Move the cursor directly to locate, press keys to enter, press [EOB] to change line, and press [Delete] to delete the character where the cursor locates. Caution After all operations, press Reset to save the files, and the functions base on edit mode;...

  • Page 31: Main Interfaces Of The System

    Adtech CNC Technology Co., Ltd. 9. Main interfaces of the system 9. Main interfaces of the system 9.1 Position interface The position interface shows current machine tool coordinates, including absolute position, relative position and comprehensive position. In the main interface, press [Monitor] to enter the position interface.
  • Page 32 Adtech CNC Technology Co., Ltd. 9. Program saving & editing Relative position In manual mode, reset current coordinates to check the relative motion distance of any displacement, and thus it is called as relative position. This interface is usually used for early tool setting. Considering that some operators have been used to manual calculation, this function is preserved.

  • Page 33: Edit Interface

    Adtech CNC Technology Co., Ltd. 9. Main interfaces of the system Comprehensive coordinates The interface displayed by absolute coordinates and machine tool coordinate Comprehensive position interface is shown below: Comprehensive Position Interface 9.2 Edit interface The edit interface shows the program info in current work area. In the main interface, press [Edit] to enter the program interface.

  • Page 34: Mdi Interface

    Adtech CNC Technology Co., Ltd. 9. Program saving & editing [Diagnosis] [System Info] System info interface is shown below: System Info Interface 9.3 MDI interface MDI mode is mainly used for the execution of single G code in certain occasions.

  • Page 35: File Management

    Adtech CNC Technology Co., Ltd. 9. Main interfaces of the system 9.4 File management In the file management interface, you can manage the system files. To enter file management interface: [Edit/PROG] [File] File management mainly has the following functions: Connect the UBS disk, and copy the files between USB disk and electronic disk;...

  • Page 36: Parameter Interface

    Adtech CNC Technology Co., Ltd. 9. Program saving & editing Graphic Simulation Interface 9.6 Parameter interface The parameter interface shows system parameter info, including comprehensive, axis parameter, management, tool magazine, principal axis, port, etc. In the main interface, press [parameter] to enter the interface.
  • Page 37 Adtech CNC Technology Co., Ltd. 9. Main interfaces of the system Comprehensive parameters Comprehensive parameters are a set of functions that aren’t classified in details, e.g. home mode, manual speed, etc. Comprehensive parameter interface is shown below: Comprehensive Parameter Interface Axis parameters Axis parameters are parameter set of interface characteristics of control position axis.
  • Page 38 Adtech CNC Technology Co., Ltd. 9. Program saving & editing Management Parameter Interface Tool magazine parameters Tool magazine parameters collect the parameters that the tool magazine requires. The specific meaning of the parameters should be determined by the tool magazine of the machine tool, and therefore should refer to the instructions provided by the machine tool manufacturer.

  • Page 39: Compensation Interface

    Adtech CNC Technology Co., Ltd. 9. Main interfaces of the system IO Configuration Parameters Interface 9.7 Compensation interface Tool compensation interface shows tool compensation info of the system, including tool length compensation, tool radius compensation and other input variables. The compensation method is different from M series and L series, which will be described below.

  • Page 40: M Series Workpiece Coordinate System Setting Interface

    Adtech CNC Technology Co., Ltd. 9. Program saving & editing Tool Compensation Parameter Setting Interface 9.8 M series workpiece coordinate system setting interface The coordinates interface shows coordinate system info, including setting, coordinate system, centered, and tool regulator. In the main interface, press [Coordinate] to enter coordinate system.
  • Page 41 Adtech CNC Technology Co., Ltd. 9. Main interfaces of the system Workpiece coordinate system Display workpiece coordinate system, i.e. the offset of workpiece home position and machine tool home position, Totally six basic workpiece coordinate systems (G54~G59) and nine extension coordinate systems (G591~G599) are available.
  • Page 42 Adtech CNC Technology Co., Ltd. 9. Program saving & editing The detailed auxiliary parameters are described in the table below: X coordinates offset Y coordinates offset Z coordinates offset A coordinates offset X coordinates of tool regulator Y coordinates of tool regulator...

  • Page 43: Controller Diagnosis Interface (Diagnosis)

    Adtech CNC Technology Co., Ltd. 9. Main interfaces of the system 9.9 Controller diagnosis interface (diagnosis) The diagnosis interface is used to display the hardware interfaces and system info, including alarm, input, output, DA diagnosis; press [Diagnosis] to enter the diagnosis interface.

  • Page 44: Current Mode Instruction Info

    Adtech CNC Technology Co., Ltd. 9. Program saving & editing Process variables are to customize the names of 20 variables (#100~#999) according to CSV configuration table, so that the variable names have visual meanings. In programs, the user customized variables are transferred with variable number.

  • Page 45: System Maintenance

    Adtech CNC Technology Co., Ltd. 10. Program saving & editing System maintenance 10.1 Restart ⑴ In the main menu, press [Edit] to enter the program interface; ⑵ Press [File] to enter the file interface; ⑶ Press [Reset] and the system asks whether restart or not;...

  • Page 46: System Parameters

    Adtech CNC Technology Co., Ltd. 11. Program saving & editing System parameters According to occasions and functions, the parameters contain comprehensive parameters, IO configuration parameters, management parameters and coordinate setting parameters. Comprehensive parameters are complete, and contain basic operation and usage settings of the controller, including principal axis, handwheel, home, tool magazine, etc.;...
  • Page 47 Adtech CNC Technology Co., Ltd. 11. System parameters Effective Default Parameter type Description Page mode value General parameter (P1.) X Acceleration(Kpps) Instant General parameter (P1.) Y Acceleration(Kpps) Instant General parameter (P1.) Z Acceleration(Kpps) Instant General parameter (P1.) 4 Acceleration(Kpps) Instant General parameter (P1.)
  • Page 48 Adtech CNC Technology Co., Ltd. 11. Program saving & editing Effective Default Parameter type Description Page mode value General parameter (P1.) ArcSpeedUpVal Instant General parameter (P1.) interpolation speed mode Instant General parameter (P1.) GCode pre-treatment Instant General parameter (P1.) 'O'Pro Scan Instant General parameter (P1.)
  • Page 49 Adtech CNC Technology Co., Ltd. 11. System parameters Effective Default Parameter type Description Page mode value Axis parameter (P2.) Y_ServoAlarmIn ELevel Instant Axis parameter (P2.) Z_ServoAlarmIn ELevel Instant Axis parameter (P2.) A_ServoAlarmIn ELevel Instant Axis parameter (P2.) X_ServoResetOut ELeve Instant Axis parameter (P2.)
  • Page 50 Adtech CNC Technology Co., Ltd. 11. Program saving & editing Effective Default Parameter type Description Page mode value Axis parameter (P2.) Y Round Setting Instant Axis parameter (P2.) Z Round Setting Instant Axis parameter (P2.) 4 Round Setting Instant Axis parameter (P2.) X physial Assign Num<●>...
  • Page 51 Adtech CNC Technology Co., Ltd. 11. System parameters Effective Default Parameter type Description Page mode value Axis parameter (P2.) X Ext Home Eanble Instant Axis parameter (P2.) Y Ext Home Eanble Instant Axis parameter (P2.) Z Ext Home Eanble Instant Axis parameter (P2.)
  • Page 52 Adtech CNC Technology Co., Ltd. 11. Program saving & editing Effective Default Parameter type Description Page mode value Management parameter (P3.) clear current work num Instant Management parameter (P3.) lead in CSV sys config Restart Management parameter (P3.) startup display module Restart Management parameter (P3.)
  • Page 53 Adtech CNC Technology Co., Ltd. 11. System parameters Effective Default Parameter type Description Page mode value Port parameter (P6.) Wheel0.1 Instant Port parameter (P6.) Wheel0.01 Instant Port parameter (P6.) Wheel0.001 Instant Port parameter (P6.) X Wheel Instant Port parameter (P6.) Y Wheel Instant Port parameter (P6.)
  • Page 54 Adtech CNC Technology Co., Ltd. 11. Program saving & editing Effective Default Parameter type Description Page mode value Port parameter (P6.) OUT2------wire No:(1-24) Instant Port parameter (P6.) OUT3------wire No:(1-24) Instant Port parameter (P6.) OUT4------wire No:(1-24) Instant Port parameter (P6.) OUT5------wire No:(1-24) Instant Port parameter (P6.)
  • Page 55 Adtech CNC Technology Co., Ltd. 11. System parameters Effective Default Parameter type Description Page mode value Port parameter (P6.) ExScram2 DetectPort Instant Port parameter (P6.) Air of ToolCheck OutPort Instant Port parameter (P6.) IO Conf in RESET 00~15 Instant Port parameter (P6.) IO Conf in RESET 16~23 Instant Port parameter (P6.)

  • Page 56: Comprehensive Parameters (P1.)

    Adtech CNC Technology Co., Ltd. 11. Program saving & editing 11.2 Comprehensive parameters (P1.) X Gear Numerator X Gear Denominator Y Gear Numerator Y Gear Denominator Z Gear Numerator Z Gear Denominator 4 Gear Numerator 4 Gear Denominator Range 1~65535...
  • Page 57 Adtech CNC Technology Co., Ltd. 11. System parameters X FastSpeed(mm/min) FastSpeed(mm/min) Z FastSpeed(mm/min) 4 FastSpeed(mm/min) XStartupSpeed(mm/min) YStartupSpeed(mm/min) ZStartupSpeed(mm/min) 4StartupSpeed(mm/min) X Acceleration(Kpps) Y Acceleration(Kpps) Z Acceleration(Kpps) 4 Acceleration(Kpps) Range 1~9999, 1~9999, 1~8000 Unit mm/min,mm/min,mm/sec Authority Operation admin or higher Default 3000,200,1500...
  • Page 58 Adtech CNC Technology Co., Ltd. 11. Program saving & editing Inp Speed(mm/min) InpStartSpeed(mm/min) InpAcceleration(mm/sec) XBacklashExpiate(pulse) Range 1~9999, 1~9999, 1~8000, 1~9999 Unit mm/min,mm/min,mm/sec,mm/min Authority Operation admin or higher Default 3000,200,1000,3000 Effective time Instant Note The feeding instructions such as G01, G02 and G03 move at the speed of F instruction.
  • Page 59 Adtech CNC Technology Co., Ltd. 11. System parameters JOG Speed(mm/min) Wheel Coefficient Range 1~9999 Unit mm/min Authority Operation admin or higher Default 1000, 9000 Effective time Instant Note Set manual speed and handwheel speed; The start speed and acceleration in this mode are determined by 013, 014, 015, 016, 017, 018, 019, 020;...
  • Page 60 Adtech CNC Technology Co., Ltd. 11. Program saving & editing Controler ID Range 1~255 Unit None Authority Operation admin or higher Default Effective time Restart Note The ID number setting of the controller when DNC or other PC software and this controller are in MODBUS communication mode...
  • Page 61 Adtech CNC Technology Co., Ltd. 11. System parameters Effective time Instant Note In pretreatment mode, set to 0 to use corner speed balancing algorithm, or set to 1 to use axis acceleration constraints balancing algorithm GCode pre-treatment Range Unit None...
  • Page 62 Adtech CNC Technology Co., Ltd. 11. Program saving & editing Unit LOGIC VOLTAGE LEVEL Authority Operation admin or higher Default Effective time Instant Note Set the effective voltage level of the system safety signal. The source of safety signal can be customized by the user, and generally may be electric cabinet door and similar sensitive occasions.
  • Page 63 Adtech CNC Technology Co., Ltd. 11. System parameters ExScram ELevel ExStart ELevel ExPause ELevel Range Unit LOGIC VOLTAGE LEVEL Authority Operation admin or higher Default Effective time Instant Note External emergency stop button of the system This port is affected by IO configuration.
  • Page 64 Adtech CNC Technology Co., Ltd. 11. Program saving & editing Default 1 (L series) /0 (M series) Effective time Instant Note On lathe controller (L series), it is used to set whether the display and programming of X axis are in radius or diameter;...
  • Page 65 Adtech CNC Technology Co., Ltd. 11. System parameters Pretreatment segments Range 10~200 Unit Authority Operation admin or higher Default Effective time Instant Note Pretreatment forward segments are used to set the segments of pretreatment preview. The larger this value is, the greater the operation is, and the longer the waiting time before motion is.

  • Page 66: Axis Parameter Configuration (P2.)

    Adtech CNC Technology Co., Ltd. 11. Program saving & editing 11.3 Axis parameter configuration (P2.) X_ServoAlarmIn ELevel Y_ServoAlarmIn ELevel Z_ServoAlarmIn ELevel A_ServoAlarmIn ELevel X_ServoResetOut ELeve Y_ServoResetOut ELeve Z_ServoResetOut ELeve A_ServoResetOut ELeve Range Unit LOGIC VOLTAGE LEVEL Authority Super Admin Default...
  • Page 67 Adtech CNC Technology Co., Ltd. 11. System parameters and the default value is off. Scanning mode is integrated by the system and can’t be shielded. The scanning mode inputs signal by accessing specified function number, and uses software anti-interference detection technology to check whether limit alarm occurs or has no interference.
  • Page 68 Adtech CNC Technology Co., Ltd. 11. Program saving & editing Y Round Setting Z Round Setting 4 Round Setting Range 0~9999999 Unit Pulse Authority Super Admin Default Effective time Restart Note Round function is available on hardware version 1.5 or later only;...
  • Page 69 Adtech CNC Technology Co., Ltd. 11. System parameters Unit Wire number Authority Super Admin Default 2500 Effective time Instant Note Set the encoder wires connected to every pulse port (AB phase pulse). Since four times frequency division is performed for internal transfer, the value of this parameter should be the pulses collected by the encoder for one cycle divided by 4.
  • Page 70 Adtech CNC Technology Co., Ltd. 11. Program saving & editing X feature(Rotate0 Line1) Y feature(Rotate0 Line1) Z feature(Rotate0 Line1) 4 feature(Rotate0 Line1) Range Unit None Authority Super Admin Default Effective time Instant Note Set axis characteristics. 0: Rotary axis 1: Linear axis The setting of this parameter and P2.066~069 axis will affect the setting...
  • Page 71 Adtech CNC Technology Co., Ltd. 11. System parameters Note Set the maximum acceleration of every axis. This setting will affect the track speed optimization of pretreatment to every axis. If a high value is set, the axis response time will be shortened and characteristics of the motor will be improved according to the machine tool.
  • Page 72 Adtech CNC Technology Co., Ltd. 11. Program saving & editing X Encoder LogicDir<●> Y Encoder LogicDir<●> Z Encoder LogicDir<●> 4 Encoder LogicDir<●> Range Unit None Authority Super Admin Default Effective time Instant Note If the logic direction obtained by the encoder is reverse to the actual motion direction of the axis, please set this parameter.

  • Page 73: Management Parameters (P3.)

    Adtech CNC Technology Co., Ltd. 11. System parameters Range 1~90000 Unit Authority Super Admin Default 90000 Effective time Instant Note Used to configure the restriction acceleration of every axis during pretreatment processing. No matter which parameter, the lower the setting is, the slower the processing speed is;...
  • Page 74 Adtech CNC Technology Co., Ltd. 11. Program saving & editing para backup para recover Range None Unit None Authority Super user Default None Effective time Instant Note The parameters are backed up and restored only in super user mode. The parameters are backed up to the sysconf.bak file in the root directory of the controller.
  • Page 75 Adtech CNC Technology Co., Ltd. 11. System parameters sys language bag Range Unit None Authority Operation admin Default 0 (Chinese) Effective time Instant Note Select system language Chinese English macro key word valid En Range Unit None Authority Operation admin...

  • Page 76: Tool Magazine Parameters (P4.)

    Adtech CNC Technology Co., Ltd. 11. Program saving & editing axis control composite Range Unit None Authority Super user Default ON/1 Effective time Instant Note Used to configure whether the key for axis motion on the control panel is enabled.

  • Page 77: Principal Axis Parameters (P5.)

    Adtech CNC Technology Co., Ltd. 11. System parameters 11.6 Principal axis parameters (P5.) Spi.Alarm ELevel Spi.Reset ELevel Spi.ECZ Home Enable Spi.ECZ Elevel Spi. Limit+ Enable Spi. Limit- Enable Spi.Limit Elevel Spi.Pulse Mode Spi.Pulse Logic Mode Spi.HomeDect ELevel Spi.ExtHome Check En Spi.Round Setting...

  • Page 78: Port Configuration (P6.)

    Adtech CNC Technology Co., Ltd. 11. Program saving & editing rotation directly later, while the controller will output corresponding analog voltage according to linear scale automatically. Spi.Gear Numerator Spi.Gear Denominator Range 1~65535 Unit None Authority Operation admin or higher Default...
  • Page 79 Adtech CNC Technology Co., Ltd. 11. System parameters Note Output terminal No. configuration is same as input terminal configuration. Output terminal No. and wire No. are mapped Safe Signal … … TCheck Limit DetectPort Range 0~23 Unit Terminal No. Authority...

  • Page 80: Hardware Interface Definition And Connection Instructions

    ADT-CNC46XX 系列维护手册 Hardware interface definition and connection instructions 12.1 Installation layout 12.1.1 External interface diagram ⑴ X axis, Y axis, Z axis, A axis: 15-core D-pin socket connects to step motor drive or digital AC servo drive ⑵ XS5 digital input: 25-core D-pin socket inputs signals for every axis limit and other switching quantity ⑶...

  • Page 81: Mounting Dimensions

    Adtech CNC Technology Co., Ltd. 12. Hardware interface definition and connection instructions 12.1.2 Mounting dimensions - 77 -...

  • Page 82: Installation Precautions

    ADT-CNC46XX 系列维护手册 12.1.3 Installation precautions Installation condition for electric cabinet ⑴ The cabinet must be able to effectively prevent dust, coolant and organic solution entering; ⑵ When design electric cabinet, the distance between rear cover and case should be at least 20CM; considering the temperature rises in the cabinet, the temperature difference between interior and exterior of the cabinet shouldn’t exceed 10℃;...
  • Page 83 Adtech CNC Technology Co., Ltd. 12. Hardware interface definition and connection instructions Group Cable type Wiring Requirement AC power cord Bundle the cables of group A separately from group B AC coil and C, keep at least 10cm clearance, or make...

  • Page 84: Interface Definition

    ADT-CNC46XX 系列维护手册 12.2 Interface definition 12.2.1 Motor drive control interface (XS1..XS4) Four drive interfaces are available (XS1 X axis, XS2 Y axis, XS3 Z axis, XS4 A axis), and they have the same definition, as shown below: Simple Internal Circuit Diagram for Pulse Output - 80 -...
  • Page 85 Step motor drive cable to differential input Adtech CNC drive is for reference, all of which use differential input mode. This mode has strong anti-interference and is recommended. Please refer to the figure below for the connection of CNC with step...
  • Page 86 ADT-CNC46XX 系列维护手册 Step motor drive wiring diagram for single-ended input Certain companies connect together the optocoupler input cathodes of step drives, i.e. common cathode connection, which isn’t suitable for CNC controller. Common anode connection connects together the anodes of optocoupler input. The wiring shall follow the figure below, and do not connect PU+ and DR+ together, or else the pulse interface may be damaged.

  • Page 87: Digital Input Interface (Xs5)

    Adtech CNC Technology Co., Ltd. 12. Hardware interface definition and connection instructions 12.2.2 Digital input interface (XS5) The digital input interface contains the hard limit signal of every axis, and the definition follows: Simple Internal Output Diagram for Digital Input Photoelectric Switch Wiring Diagram + is the anode of approach switch, - is the earth wire, and OUT is output signal.
  • Page 88 ADT-CNC46XX 系列维护手册 Default input port configuration of M series (milling machine) Wire Definition Function X axis zero point Y axis zero point Z axis zero point A axis zero point Tool regulator in place test Security door test input System under-voltage alarm input System lubricant pressure alarm input Standby input Standby input...
  • Page 89 Adtech CNC Technology Co., Ltd. 12. Hardware interface definition and connection instructions Default input port configuration of L series (lathe) Wire Definition Function X axis zero point Standby input Z axis zero point Standby input Tool #1 in place test...

  • Page 90: Digital Output Interface (Xs6)

    ADT-CNC46XX 系列维护手册 12.2.3 Digital output interface (XS6) The wiring of digital output interface follows: Simple Internal Circuit of Digital Output (left) Wiring with Machine Tool (right) (principal axis positive rotation for example) - 86 -...
  • Page 91 Adtech CNC Technology Co., Ltd. 12. Hardware interface definition and connection instructions Default output port configuration of M series (milling machine) Wire No. Definition Function OUT0 Principal axis positive rotation (M03) OUT1 Principal axis reverse rotation (M04) OUT2 Standby output (M56, M57)
  • Page 92 ADT-CNC46XX 系列维护手册 Default output port configuration of L series (lathe) Wire No. Definition Function OUT0 Principal axis positive rotation (M03) OUT1 Principal axis reverse rotation (M04) OUT2 Tool regulator positive rotation output (M56, M57) Tool regulator reverse rotation & locking output OUT3 (M58, M59) OUT4...

  • Page 93: Handheld Box Interface (Xs7)

    Adtech CNC Technology Co., Ltd. 12. Hardware interface definition and connection instructions 12.2.4 Handheld box interface (XS7) IN24 IN25 IN26 IN27 IN28 IN29 IN30 IN31 IN32 IN33 24V- Wire No. Definition Function (IN24) gear switch 0.1 gear --- High speed (IN26) gear switch 0.01 gear --- Medium speed...

  • Page 94: Analog Output Interface (Xs8)

    ADT-CNC46XX 系列维护手册 12.2.5 Analog output interface (XS8) Analog output interface wiring diagram: The wiring is also suitable for XS8 interface of 4640/4620 controller; Wire No. Definition Function DAOUT1 Analog voltage output (0~10) V DAOUT2 Analog voltage output (0~10) V Internal 24V power grounding Internal 24V power grounding Internal 24V power grounding - 90 -...

  • Page 95: Principal Axis Encoder Interface (Xs12)

    Adtech CNC Technology Co., Ltd. 12. Hardware interface definition and connection instructions 12.2.6 Principal axis encoder interface (XS12) Principal axis encoder wiring diagram: This wiring is suitable for 4640/4620 controller Wire No. Definition Function ECA+ Encoder phase A input +...
  • Page 96 ADT-CNC46XX 系列维护手册 Differential connection follows: 5V power supply is external Common anode connection follows: The power voltage is determined by encoder. If 5V power supply is used, resistor R will be unnecessary. For 12V power supply, please use 1K-2K resistor, and for 24V power supply, please use 2K-5K resistor. Suggestion: Please use differential output encoder to ensure better anti-interference when the line is long.

  • Page 97: Rs232 Transmission Interface (Xs9)

    Adtech CNC Technology Co., Ltd. 12. Hardware interface definition and connection instructions 12.2.7 RS232 transmission interface (XS9) Serial communication interface ---9-core signal socket (male) 12.2.8 USB memory connection interface (XS10) Standard USB memory (e.g. USB disk) interface; 12.2.9 PC USB communication interface (XS11) Standard USB communication interface;...

  • Page 98: Electrical Connection Diagram

    ADT-CNC46XX 系列维护手册 12.3 Electrical connection diagram 12.3.1 Symbol schematic diagram - 94 -...

  • Page 99: Power Connection Diagram

    Adtech CNC Technology Co., Ltd. 12. Hardware interface definition and connection instructions 12.3.2 Power connection diagram - 95 -...

  • Page 100: Servo Drive Connection Diagram

    ADT-CNC46XX 系列维护手册 12.3.3 Servo drive connection diagram - 96 -...

  • Page 101: Step Connection Diagram

    Adtech CNC Technology Co., Ltd. 12. Hardware interface definition and connection instructions 12.3.4 Step connection diagram - 97 -...

  • Page 102: Io Electrical Connection Diagram

    ADT-CNC46XX 系列维护手册 12.3.5 IO electrical connection diagram - 98 -...
  • Page 103 Adtech CNC Technology Co., Ltd. 12. Hardware interface definition and connection instructions - 99 -...
