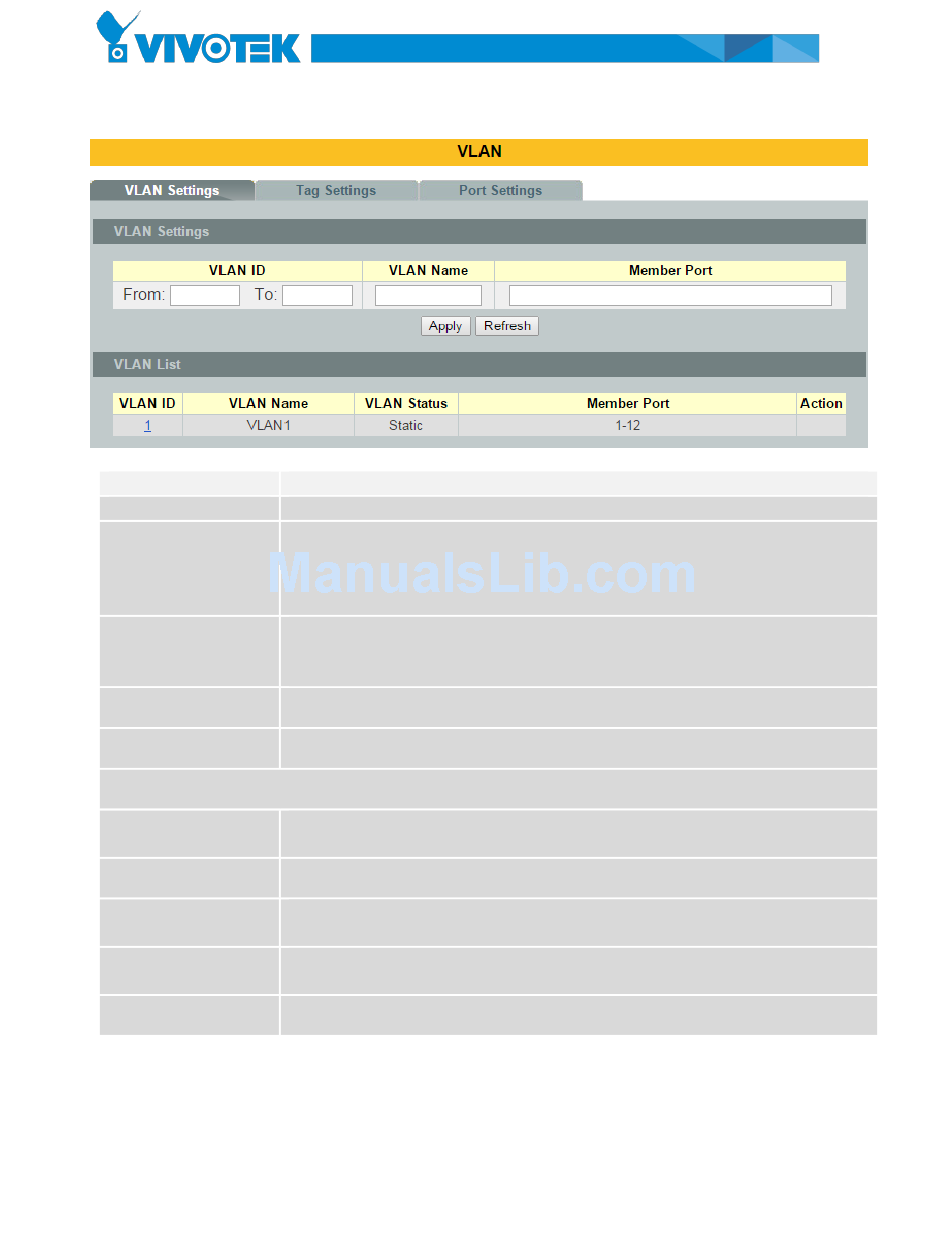

6.3.2.3. Web Configuration
VLAN Settings
Parameter
VLAN ID
VLAN Name
Member Port
Apply
Refresh
VLAN List
VLAN ID
VLAN Name
VLAN Status
Member Port
Action
Description
Enter the VLAN ID for this entry; the valid range is between 1 and 4094.
Enter a descriptive name for the VLAN for identification purposes. The
VLAN name should be the combination of the digit or the alphabet or
hyphens (-) or underscores (_).
The maximum length of the name is 16 characters.
Enter the port numbers you want the Switch to assign to the VLAN as
members. You can designate multiple port numbers individually by
using a comma (,) and by range with a hyphen (-).
Click Apply to save your changes back to the Switch.
Click Refresh to begin configuring this screen afresh.
This field displays the index number of the VLAN entry. Click the
number to modify the VLAN.
This field displays the name of the VLAN.
This field displays the status of the VLAN. Static or Dynamic (802.1Q
VLAN).
This field displays which ports have been assigned as members of the
VLAN. This will display None if no ports have been assigned.
Click Delete to remove the VLAN. The VLAN 1 cannot be deleted.
