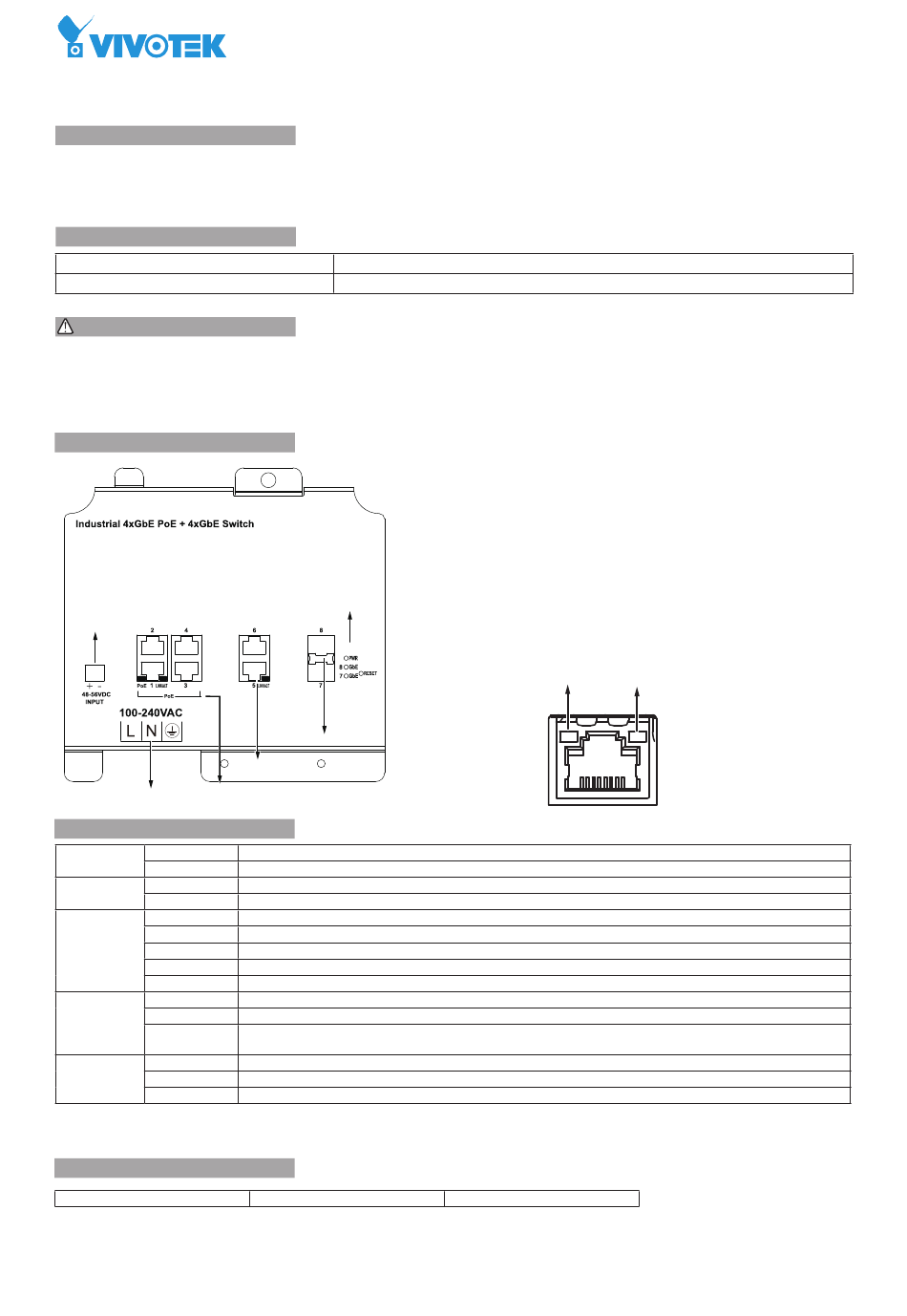

Vivotek AW-GET-083A-120 Quick Installation Manual

INTRODUCTION

The AW-GET-083A-120 is a 4 port 10/100/1000BaseT PoE switch capable of feeding 15.4/30W (54V max. per port)
power to Power over Ethernet (PoE) devices. It comes with another 2x GbE Ethernet and 2x GbE SFP port. The switch is
capable of a total of 120 Watts PoE power budget.

PACKAGE CONTENTS

* 1x PoE switch
* 1x T30 L-wrench, 4x wall anchors

IMPORTANT:

1. Install the PoE switch in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust.
2. Make sure the ventilation openings on the switch are not blocked.
3. Use CAT5 or 5e UTP/STP cables.
4. AC input (100~240V/AC, 50~60Hz), for a max. consumption of 150W.

CONNECTION

DC input
10/100/1000 RJ45
VAC 100~240 power input
PoE ports

LED DEFINITIONS

Power1
Green ON
Green Off
Power2
Green ON
Green Off
RJ45 ports Green ON
LED1
Grren Blinking
Amber ON
Amber Blinking
Off
RJ45 ports Green ON
LED2
Amber ON
Off
SFP ports Green ON
Grren Blinking
Off

RESET

Reset the switch
AW-GET-083A-120
Quick Installation Guide
* 1x Quick Installation Guide
LEDs
100/1000 SFP ports
10/100/1000 RJ45
data ports
Power is on and normal.
The switch is not receiving power.
Power is on and normal.
The switch is not receiving power.
Port is enabled and link established with a device at the 1000Mbps speed.
Port is transmitting and receiving data at the 1000Mbps speed.
Port is enabled and link established with a device at the10/100Mbps speed.
Port is transmitting and receiving data at the 100Mbps speed.
No active network connection. The port may have been disabled through user interface.
The port is enabled and supplying power to connected device.
An abnormal state, such as overload status has occurred.
The port has no active network cable connected, or it is not connected a PoE PD device. Otherwise, the port may have
been disabled through the switch user interface.
Port is enabled and link established with a device at the 1000Mbps speed.
Port is transmitting and receiving data at the 1000Mbps speed.
No active network connection. The port may have been disabled through user interface.
Hold Reset Button 2 seconds
Outdoor PoE Switch
Port LED1 Port LED2
All LEDs On/Off
