Vivotek AW-FGT-103C-250 Quick Installation Manual

INTRODUCTION

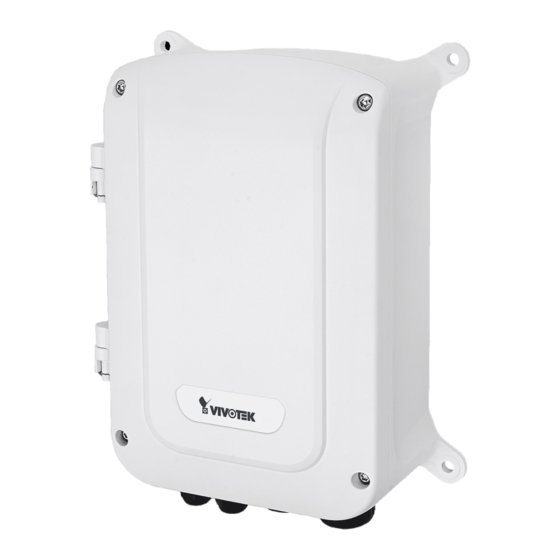

The AW-FGT-103C-250 is an 8 port 10/100BaseT PoE switch capable of feeding 15.4/30W (54V max. per port)
power to Power over Ethernet (PoE) devices. It comes with another 2x GbE combo ports. The switch is capable of a total
of 240 Watts PoE power budget.

PACKAGE CONTENTS

* 1x PoE switch
* 1x T25 L-wrench, 4x wall anchors

IMPORTANT:

1. Install the PoE switch in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust.
2. Make sure the ventilation openings on the switch are not blocked.
3. Use CAT5 or 5e UTP/STP cables.
4. AC input (100~240V/AC, 50~60Hz), for a max. consumption of 250W.

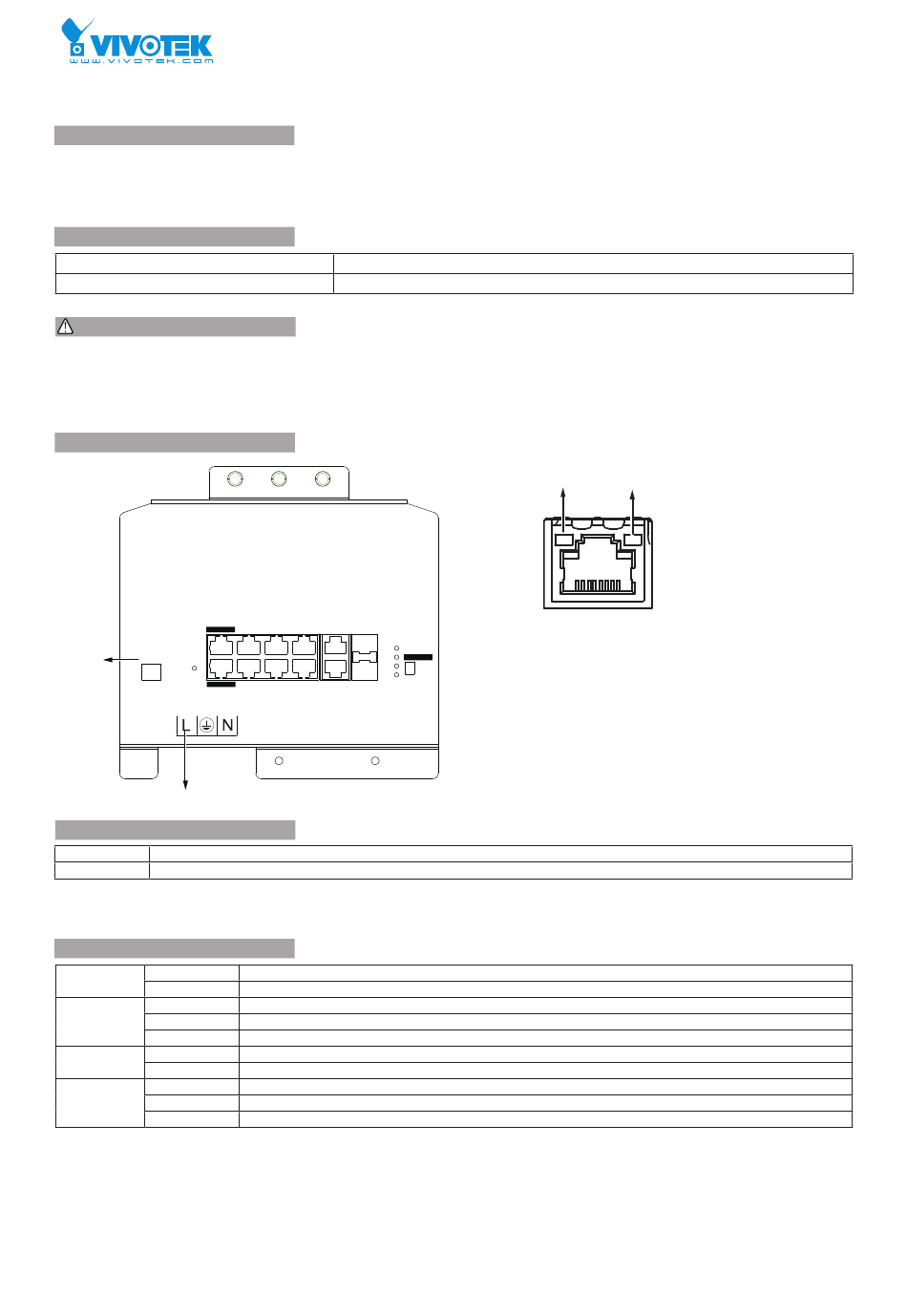

CONNECTION

Industrial 8xFE PoE + 2xCombo GbE
EXPoE Switch
2
48-56VDC
INPUT
DC input
PWR
+ -
1
PoE LINK/ACT
100-240VAC
VAC 100~240 power input

EX MODE DIP SWITCH

EX ON Ports 1 & 2 up to 250m PoE distance. When enabled, each port is isolated, but is linked to the uplink ports.
EX OFF Normal communication for ports 1 ~ 5.
* EX mode in 802.3af (15.4W): camera connection up to 250m@10Mbps via EXPoE ports.
* EX mode in 802.3at (24W): camera connection up to 200m@10mbps via EXPoE ports.

LED DEFINITIONS

Power Orange ON
Orange Off
Link/Act Green ON
Green Off
Green blinking
GbE
Green ON
Green Off
PoE Orange ON
Orange Off
Orange blinking
AW-FGT-103C-250
Quick Installation Guide
* 1x Quick Installation Guide
4 6 8 10 10
10
GbE
LINK/ACT EX Mode
GbE
LINK/ACT
9
3 5 7 9 9
Power is on and normal.
Power is off.
Ethernet port is connected.
No connection.
Data is being transmitted or received.
Link speed at 1000Mbps.
Link speed at 10/100Mbps.
Port is linked to a powered device.
No device is connected.
Abnormal power supply is detected.
Outdoor Unmanaged PoE Switch
Port LED1
OFF
ON
Rev.: 1.1
Port LED2
