 When MAC address filter table of ARP Inspection is full, the Switch receives unauthorized
ARP packet, and it automatically creates a SYSLOG and drop this ARP packet. The
SYSLOG event happens on the first time.
Default Settings
The mac-filter age time
The maximum mac-filter entries : 256.

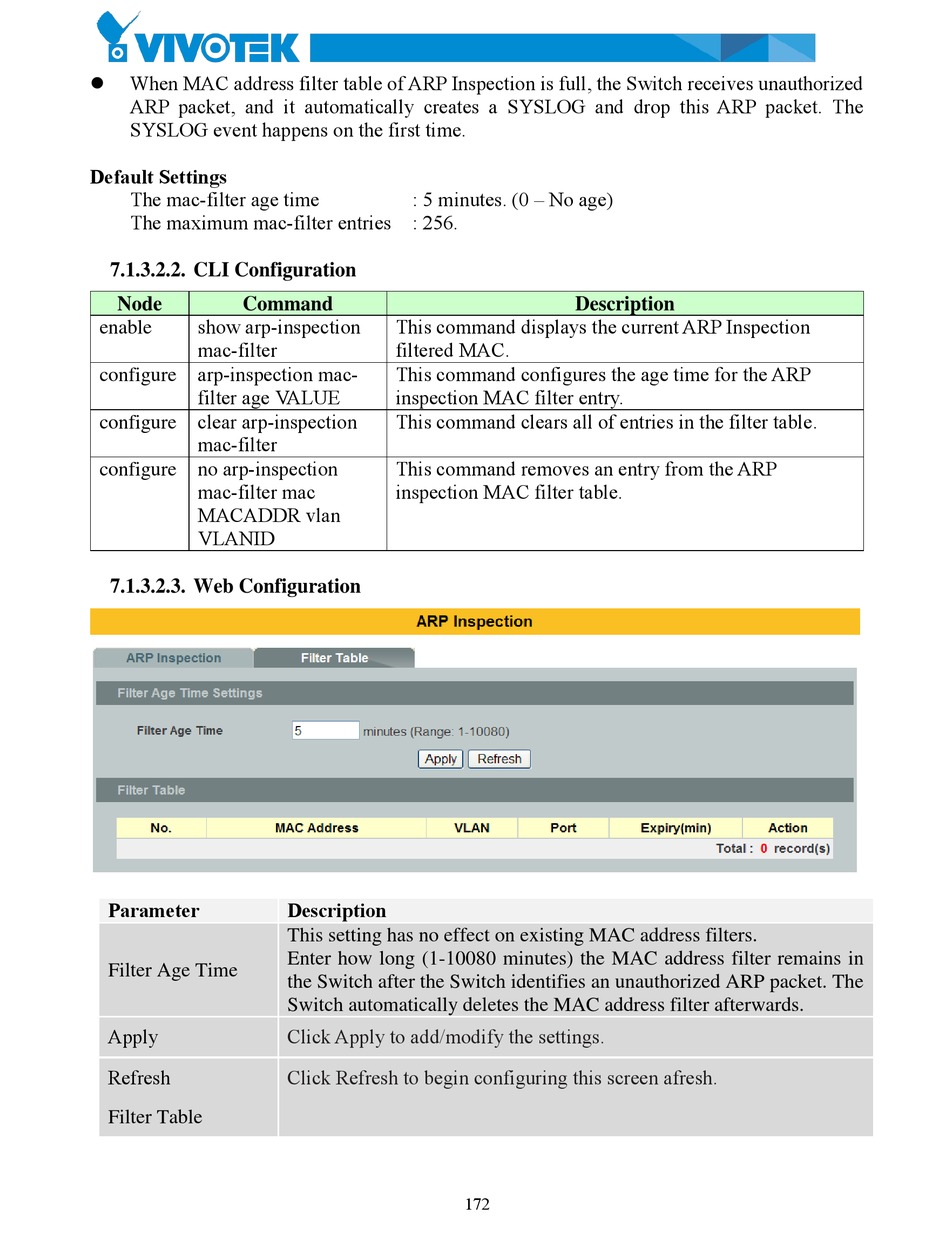

7.1.3.2.2. CLI Configuration

Node Command
show arp-inspection
enable
mac-filter
arp-inspection mac-
configure
filter age VALUE
clear arp-inspection
configure
mac-filter
no arp-inspection
configure
mac-filter mac
MACADDR vlan
VLANID

7.1.3.2.3. Web Configuration

Parameter
Filter Age Time
Apply
Refresh
Filter Table
: 5 minutes. (0 – No age)
This command displays the current ARP Inspection
filtered MAC.
This command configures the age time for the ARP
inspection MAC filter entry.
This command clears all of entries in the filter table.
This command removes an entry from the ARP
inspection MAC filter table.
Description
This setting has no effect on existing MAC address filters.
Enter how long (1-10080 minutes) the MAC address filter remains in
the Switch after the Switch identifies an unauthorized ARP packet. The
Switch automatically deletes the MAC address filter afterwards.
Click Apply to add/modify the settings.
Click Refresh to begin configuring this screen afresh.
172
