IP:
MAC:
Route Settings
vlan
IPv4
IP/M:
IP:
IPv6
IP/M:
IP:
Status

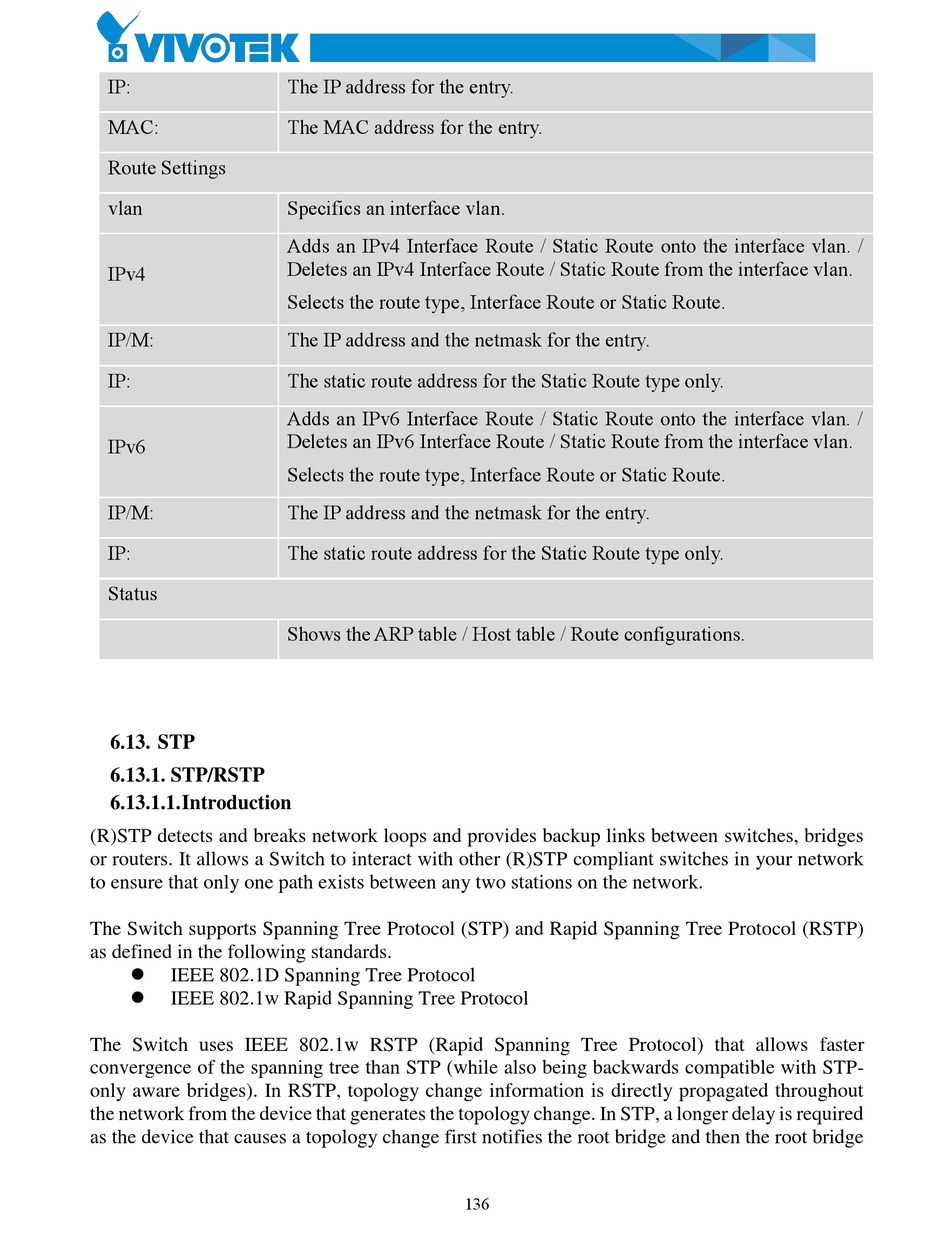

6.13. STP

6.13.1. STP/RSTP

6.13.1.1. Introduction

(R)STP detects and breaks network loops and provides backup links between switches, bridges
or routers. It allows a Switch to interact with other (R)STP compliant switches in your network
to ensure that only one path exists between any two stations on the network.
The Switch supports Spanning Tree Protocol (STP) and Rapid Spanning Tree Protocol (RSTP)
as defined in the following standards.

IEEE 802.1D Spanning Tree Protocol

IEEE 802.1w Rapid Spanning Tree Protocol
The Switch uses IEEE 802.1w RSTP (Rapid Spanning Tree Protocol) that allows faster
convergence of the spanning tree than STP (while also being backwards compatible with STP-
only aware bridges). In RSTP, topology change information is directly propagated throughout
the network from the device that generates the topology change. In STP, a longer delay is required
as the device that causes a topology change first notifies the root bridge and then the root bridge
The IP address for the entry.
The MAC address for the entry.
Specifics an interface vlan.
Adds an IPv4 Interface Route / Static Route onto the interface vlan. /
Deletes an IPv4 Interface Route / Static Route from the interface vlan.
Selects the route type, Interface Route or Static Route.
The IP address and the netmask for the entry.
The static route address for the Static Route type only.
Adds an IPv6 Interface Route / Static Route onto the interface vlan. /
Deletes an IPv6 Interface Route / Static Route from the interface vlan.
Selects the route type, Interface Route or Static Route.
The IP address and the netmask for the entry.
The static route address for the Static Route type only.
Shows the ARP table / Host table / Route configurations.
136
