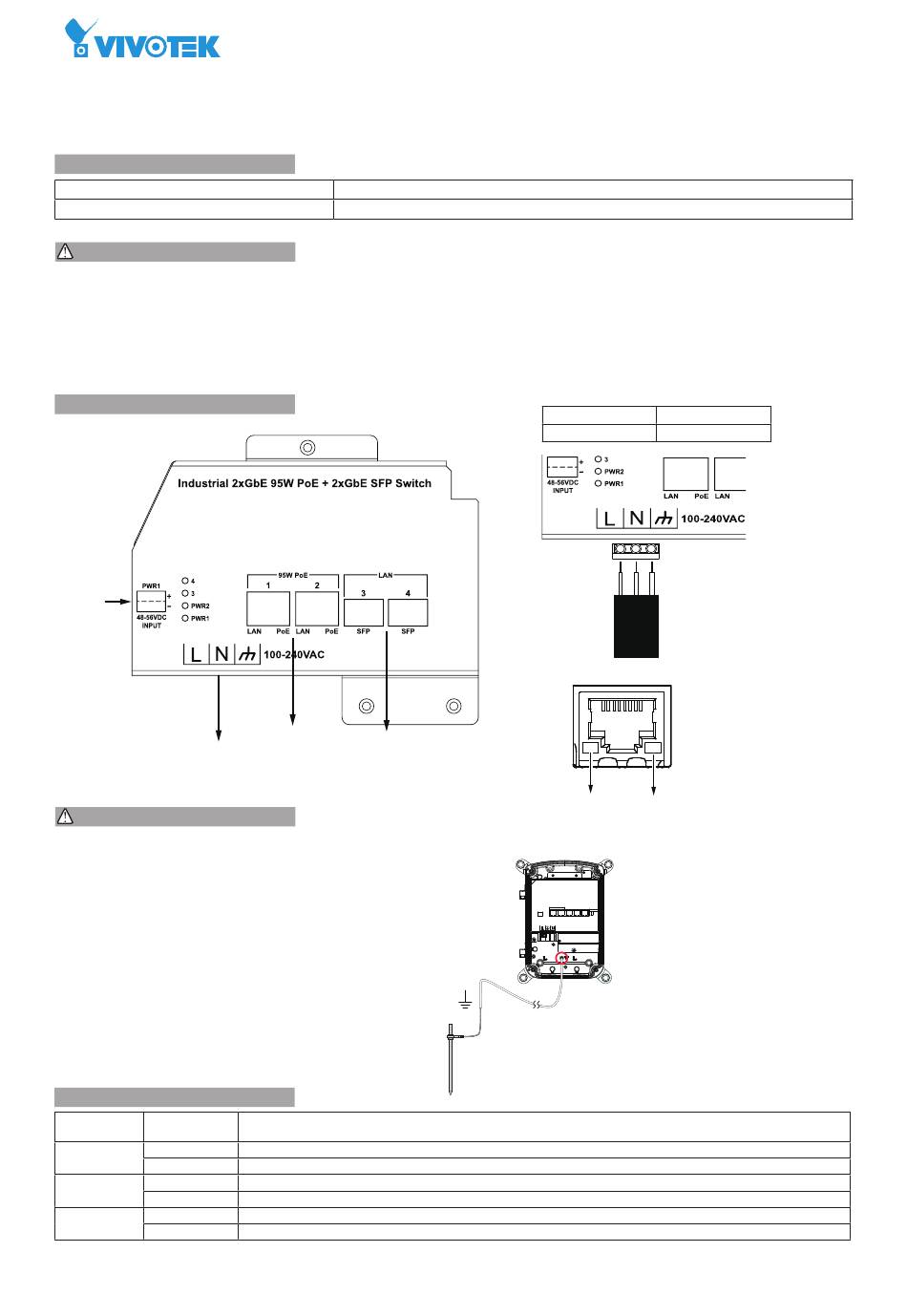

Vivotek AW-GEH-043A-120 Quick Installation Manual

PACKAGE CONTENTS

* 1x PoE switch
* 1x T25 L-wrench

IMPORTANT:

1. Install the PoE switch in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust.
2. Make sure the ventilation openings on the switch are not blocked.
3. Use CAT5 or 5e UTP/STP cables.
4. AC input (100~240V/AC, 50~60HZ).
5. IP67 rated housing.
6. Although housing is IP67 rating, this is not suitable for water jets.

CONNECTION

48~56VDC
Input
100~240VAC
Power Input
IMPORTANT:
The cabinet must be grounded using a ground wire between the ground screw and earth ground.

LED DEFINITIONS

Power Green ON
PW1/PW2
SFP port Green ON
Green
Green Flashing
LAN ports Green ON
Green
Green Blinking
PoE ports Amber ON
Amber
Amber Off
AW-GEH-043A-120
Quick Installation Guide
* 1x Quick Installation Guide
GbE RJ45
GbE SFP Ports
PoE Ports
1.5m
Power is on and normal.
Fibre is attached.
Data is being transmitted/received.
TX link is detected.
Data is being transmitted/received.
PSE is activated and PD is detected.
PoE is off.
Outdoor 95W PoH/PoE Switch

AC Power Cable Specifications

Wire Size
Wire Strip Length 8mm
8mm
Link/Act LED PoE LED
P/N: 900063200G
10~18AWG
AC Power Cable
