Maintaining the Everest Encore Printer Maintaining the Everest 600 Printer

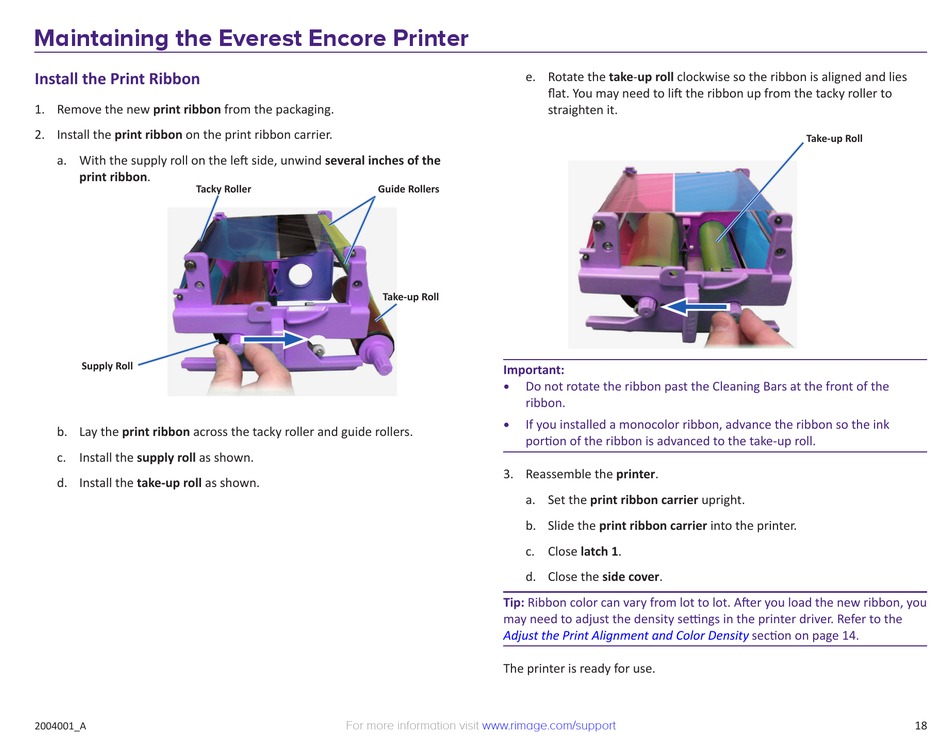

Install the Print Ribbon

1. Remove the new print ribbon from the packaging.
2. Install the print ribbon on the print ribbon carrier.
a. With the supply roll on the left side, unwind several inches of the
print ribbon.
Tacky Roller
Supply Roll
b. Lay the print ribbon across the tacky roller and guide rollers.
c. Install the supply roll as shown.
d. Install the take-up roll as shown.
2004001_A
e. Rotate the take-up roll clockwise so the ribbon is aligned and lies
Guide Rollers
Take-up Roll
Important:
Do not rotate the ribbon past the Cleaning Bars at the front of the
•
ribbon.
If you installed a monocolor ribbon, advance the ribbon so the ink
•
portion of the ribbon is advanced to the take-up roll.
3. Reassemble the printer.
a. Set the print ribbon carrier upright.
b. Slide the print ribbon carrier into the printer.
c. Close latch 1.
d. Close the side cover.
Tip: Ribbon color can vary from lot to lot. After you load the new ribbon, you
may need to adjust the density settings in the printer driver. Refer to the
Adjust the Print Alignment and Color Density
The printer is ready for use.
For more information visit www.rimage.com/support
flat. You may need to lift the ribbon up from the tacky roller to
straighten it.
Take-up Roll
section on page 14.
18
